Description
Pre-Order Date : Leadtime : 6 ~ 12 Weeks

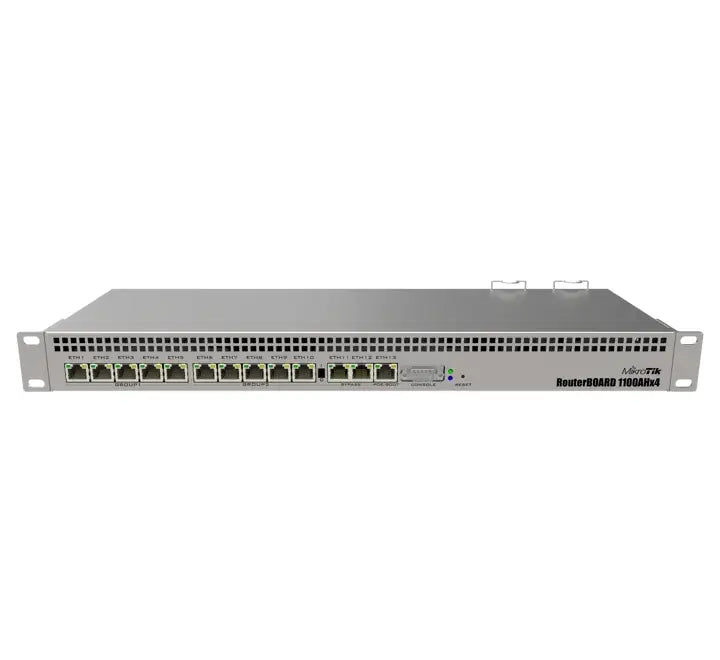

Deploy enterprise-grade throughput and massive routing efficiency across your corporate or ISP network infrastructure. The MikroTik RB1100AHx4 is a powerhouse 1U rackmount router fueled by an advanced Cortex A15 quad-core processor running at 1.4 GHz. Outfitted with 13 independent Gigabit Ethernet ports and a dedicated hardware encryption acceleration engine, it achieves massive data throughput speeds up to 7.5 Gbps, making it the perfect gateway solution for medium-to-large business applications.
Key Features & Highlights
- Quad-Core Annapurna Alpine CPU: High-efficiency 1.4 GHz AL21400 processor architecture easily manages heavy firewall rule scripts, routing configurations, and active user queues.
- 13x Independent Gigabit Ethernet Ports: Fully customizable networking matrix with two switch-chip failover groups to safeguard critical enterprise data branches.
- Hardware Accelerated IPsec: Built-in hardware acceleration crypto engine delivers exceptional data throughput speeds up to 2.2 Gbps with AES-128 encryption enabled.
- Dual Redundant Power Architecture: Equipped with dual failover power supply units (PSUs) accepting 100V - 240V AC inputs, ensuring your network stays online during primary power drops.
- RouterOS Level 6 License: Ships with a lifetime un-expiring top-tier license offering unlimited EoIP, PPPoE, PPTP, L2TP, and OVPN tunnels with no user caps.
- 1U Rackmount Construction: Premium, durable aluminum rack ear chassis fits seamlessly into all industry-standard 19-inch network cabinets and server racks.
- RouterBOARD 1100AHx4 with Annapurna Alpine AL21400 Cortex A15 CPU (4-cores, 1.4GHz per core), 1GB RAM, 13xGbit LAN, RouterOS L6, 1U rackmount case, Dual PSU
-
Warranty : 1 Year Warranty
Warranty Term: Only Hardware but excluding damages caused by electricity fluctuation, lighting, thundering, natural disaster and misuse from user. No Power ( No Warranty ).
Technical Specifications
| Component / Spec | Details |
|---|---|
| Product Code | RB1100x4 (RB1100AHx4) |
| CPU Architecture | ARM 32bit AL21400 (4 Cores, 1.4 GHz nominal frequency) |
| RAM (System Memory) | 1 GB RAM Capacity |
| Storage Properties | 128 MB NAND flash memory storage size |
| Ethernet Interface | 13x 10/100/1000 Mbps RJ45 Gigabit Ethernet Ports |
| IPsec Hardware Acceleration | Yes, built-in structural crypto offloading supported |
| Serial Console Interface | 1x RS232 serial control port |
| Power Inlets | 2x Redundant AC inputs (100V - 240V); supports Telecom -48V DC input options |
| Max Power Consumption | 20W Maximum electrical draw |
| Operating System | MikroTik RouterOS (Level 6 Perpetual License) |
| Dimensions & Enclosure | 443 x 148 x 44 mm; standard 1U Rackmount frame size |
