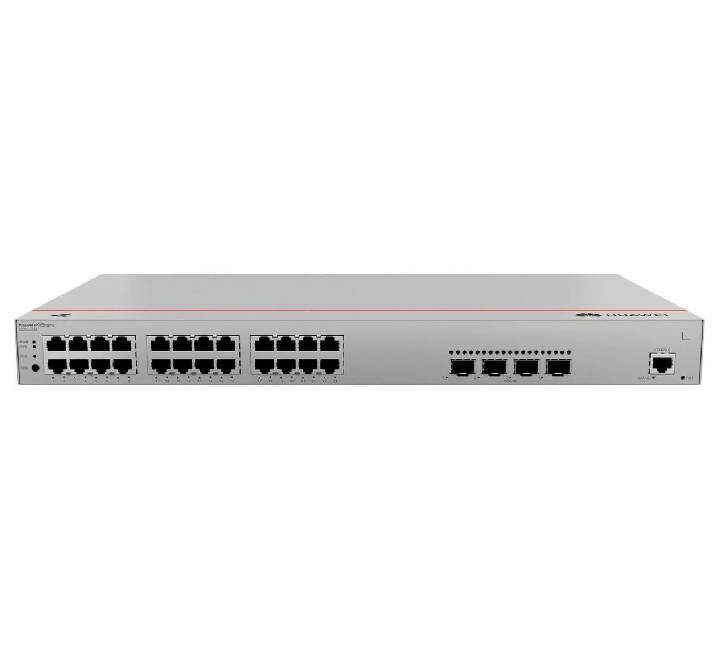

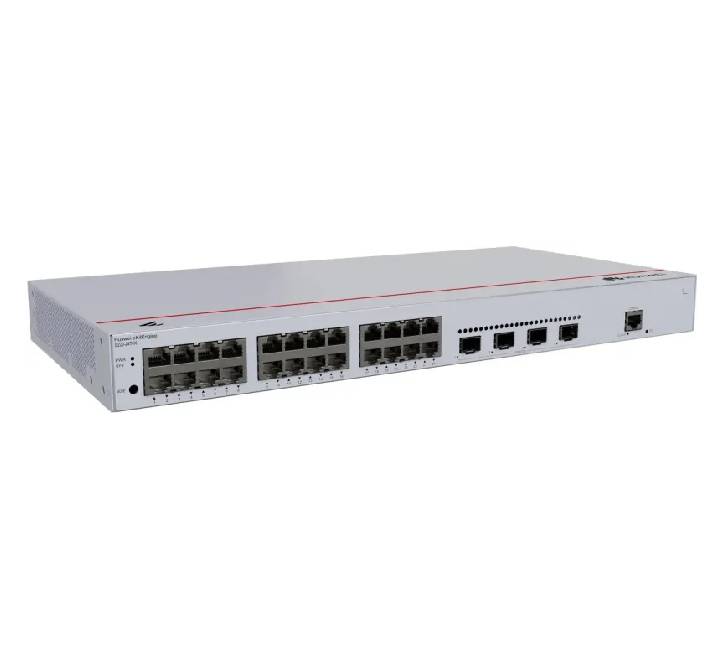

The Huawei eKitEngine S220-24T4X 24-Port Web-Managed Gigabit Switch is a high-density, enterprise-class non-PoE network aggregation and access switch built for Small and Medium Enterprises (SMEs), server rooms, corporate branches, and internet lounges across Myanmar. Engineered to eliminate local link chokepoints, this high-performance switch pairs high-density data handling with ultra-fast upstream core pipes. Purchase the original Huawei S220-24T4X in Myanmar through our portal to lock in your official product hardware warranty and premium IT distribution support in Yangon, Mandalay, and Naypyitaw.
Key Features of the Huawei eKitEngine S220-24T4X Switch
While generic unmanaged edge switches lock up under intense local network loops, the S220-24T4X provides smooth data pathways to keep business operations across Myanmar uninterrupted.
- Future-Ready 10-Gigabit Core Uplinks: Outfitted with 4 dedicated 10GE SFP+ optical slots, enabling blazing-fast line-rate data transmission back to your central storage server array or main router without bandwidth choking.
- High-Density Data Forwarding: Features 24 auto-sensing 10/100/1000BASE-T Gigabit RJ45 ports that push an massive 128 Gbps switching capacity and a rapid 95 Mpps packet forwarding rate.
- Intelligent Web and App Management: Avoid expensive, complex terminal configurations. Build topologies, synchronize policies, and monitor real-time network health instantly via the standalone HUAWEI eKit Mobile App or Cloud Web portal.
- Industrial-Grade Surge Mitigation: Equipped with robust internal protection circuits handling up to ±6 kV common and differential mode surges for power lines, and ±7 kV for service ports, safeguarding operations against local grid fluctuations.
- Advanced Layer 2 Security Architecture: Defends your corporate perimeter natively with dynamic built-in mechanisms protecting against DoS floods, ARP spoofing, rogue DHCP servers, and 802.1X user access authentication.
Huawei S220-24T4X Technical Specifications
| Hardware Feature | Official Specification Details |
|---|---|
| Model Name / SKU | eKitEngine S220-24T4X (Part Number: 98012375) |
| Device Classification | Web-Managed Layer 2 Gigabit Ethernet Access Switch |
| Downlink Electrical Interfaces | 24 x 10/100/1000BASE-T Gigabit RJ45 Ports (Non-PoE) |
| Uplink Optical Interfaces | 4 x 10GE SFP+ Uplink Ports (Supports 10G / 1G Fiber Modules) |
| Core Switching Capacity | 128 Gbit/s |
| Packet Forwarding Performance | 95 Mpps |
| Memory / Flash System | 2 GB System RAM | 1 GB Internal Flash Storage |
| MAC Address Table Capacity | Up to 16,000 MAC address entries max (Automatic Learning/Aging) |
| Power Supply Architecture | Built-in AC Power Module (Input voltage range: 90 V AC to 264 V AC) |
| Max Power Consumption | 35.04 W (Static power draw: 19.00 W) |
| Dimensions & Form Factor | Standard 1U Rackmount Unit | 43.6 mm x 442.0 mm x 220.0 mm | 2.32 kg |
Frequently Asked Questions (FAQ) — Myanmar Local Network Deployments
What is the promotional price of the Huawei S220-24T4X in Myanmar?
The purchase price of the Huawei eKitEngine S220-24T4X fluctuates based on immediate trade shipping tariffs and bulk procurement requirements in Myanmar. To see our active real-time retail price or request a wholesale integration quote for your business in Yangon, click the "Add to Cart" or "Get Quote" button above.
Can the 4 optical uplink slots run on 1G SFP transceivers instead of 10G?
Yes. The 4 uplink optical interfaces on the S220-24T4X are fully auto-negotiating multi-rate slots. They natively accept standard 1G SFP fiber transceiver modules as well as ultra-fast 10GE SFP+ hardware modules, providing absolute deployment flexibility.
Does this switch require a clean external DC adapter package?
No. The S220-24T4X features an internal AC transformer module that accepts standard power cables straight into local AC mains outlets (handling 90-264V AC, 50/60 Hz). This keeps your network rack cabinets clean and free of bulky power adapters.
