Description
Continuous Enterprise-Grade Power Protection for Critical IT Systems

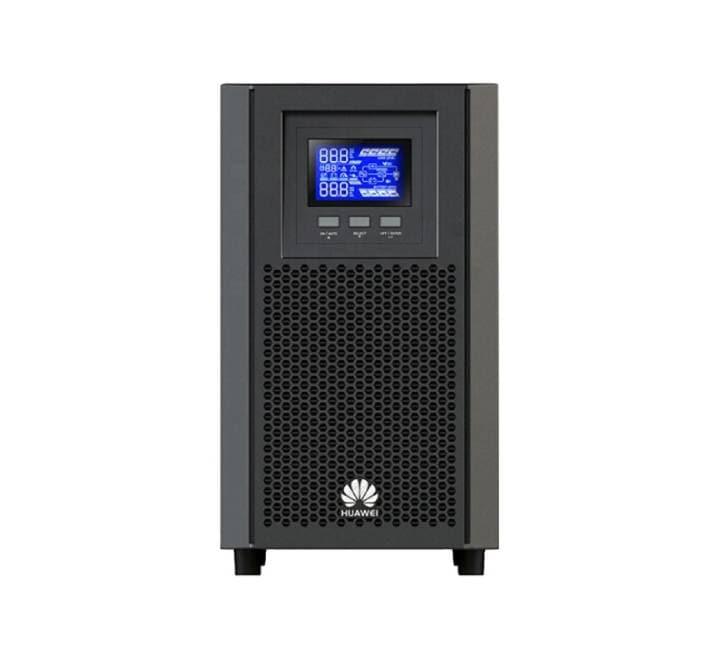

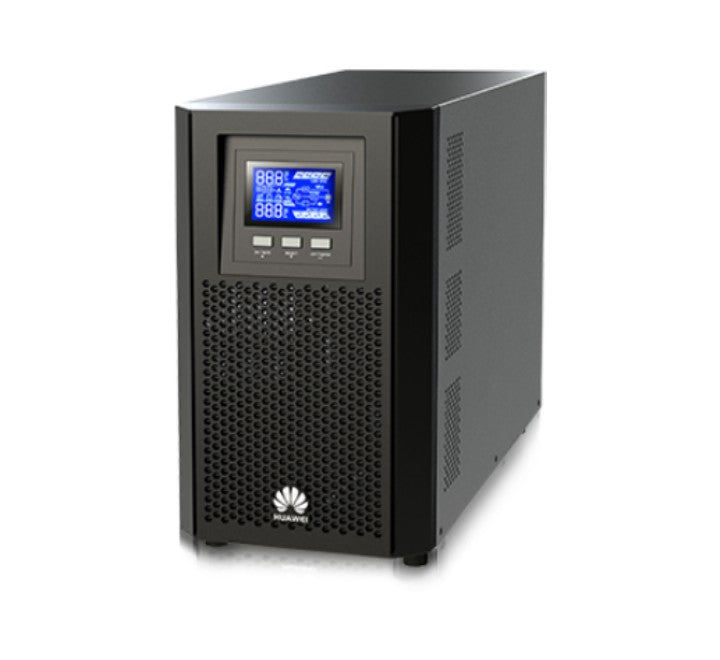

Safeguard your mission-critical hardware, branch servers, network storage, and medical systems from devastating outages with the Huawei UPS2000-A-3KTTS 3kVA Online Uninterruptible Power Supply. Engineered with professional double-conversion online technology, this robust tower UPS filters out raw utility fluctuations to supply continuous, pure sine wave power to your sensitive equipment. Boasting a zero-millisecond transfer time (0ms) from utility to battery power, it acts as an impenetrable shield against power surges, brownouts, sags, and total grid failures.
Key Features & Benefits
- True Double-Conversion Online Technology: Continually processes raw AC input grid power into clean DC and converts it back to perfect AC output. This eliminates any voltage distortion, shielding your servers and telecoms from harsh fluctuations.
- Zero Transfer Time (0ms): In the event of an electrical failure, the system instantly switches to battery backup with zero delay, ensuring that connected networking devices or industrial computers experience zero operational interruption.
- Ultra-Wide Input Voltage Range: Operates efficiently across an exceptionally wide input voltage range (110–300 V AC), significantly reducing unnecessary battery discharge cycles and lengthening overall battery service life in unstable grid regions.
- Eco-Mode Optimization for Reduced Overhead: Achieves up to 95% efficiency in high-efficiency ECO mode, dynamically lowering thermal output and power consumption costs for cost-conscious operations.
- Intelligent Battery Health Management: Employs advanced charging algorithms alongside intelligent internal self-diagnostics to maximize overall battery efficiency and extend lifespan by protecting against overcharging.
- Comprehensive LCD Display Panel: Features a clean, user-friendly frontal LCD screen providing immediate feedback on load capacity, runtime estimates, battery levels, input/output metrics, and fault logs.
- Flexible Communication Integration: Outfitted with built-in monitoring connections (RS232) and an optional intelligent slot supporting dry contact or SNMP cards for seamless remote network monitoring and automated system shutdowns.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Huawei Technologies |
| Model Number | UPS2000-A-3KTTS (3K-TTS) |
| Form Factor Topology | Tower Structure | True Online Double-Conversion |
| Power Capacity Rating | 3 kVA / 2400 Watts (Power Factor 0.8) |
| Nominal Input Voltage | 220V / 230V / 240V AC |
| Input Voltage Window | 110 V AC to 300 V AC (Dependent on load percentage) |
| Output Waveform | Pure Sine Wave (Distortion ≤ 3% Linear Load) |
| Battery Configuration | Internal Batteries Included (Valve-Regulated Lead Acid - VRLA) |
| Transfer Time Rating | 0 ms (Mains utility failure to internal battery backup mode) |
| Efficiency Performance | Up to 90% (Online Mode) | Up to 95% (ECO Efficiency Mode) |
| Physical Ports | Standard IEC Output Outlets, RS232 Communication Interface Port, Smart Slot |
| Dimensions (W x D x H) | 7.5 × 15.5 × 12.5 in (190 × 393 × 318 mm) |
| Product Weight | Approximately 26.0 kg (57.3 lbs) |
