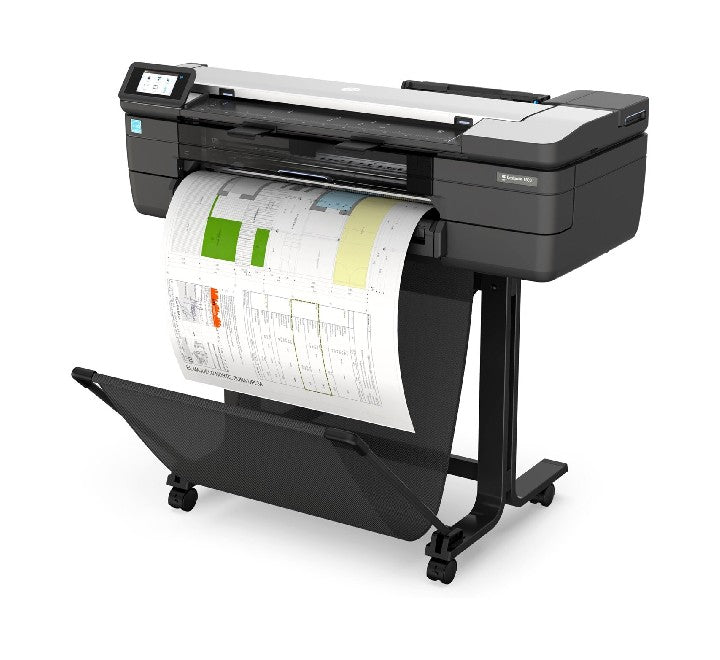

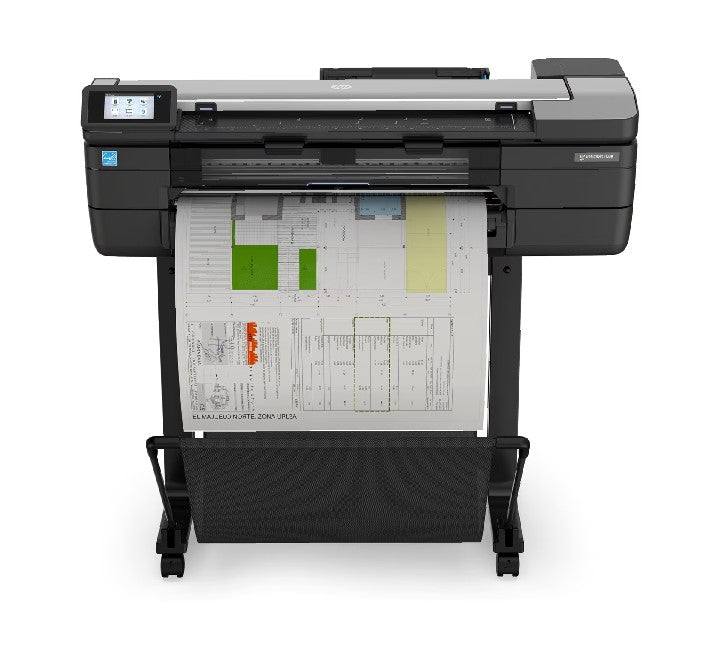

HP DesignJet T830 24-Inches Multifunction Plotter Printer
- Print speed: 26 sec/page on D, 81 D prints per hour
- Print resolution: Up to 2400 x 1200 optimized dpi
- Technology: HP Thermal Inkjet
- Margins Roll: 0.2 x 0.2 x 0.2 x 0.2 in
- Sheet: 0.2 x 0.2 x 0.2 x 0.2 in
- Ink types: Dye-based (C, M, Y); pigment-based (mK)
- Ink drop: 6 pl (C, M, Y); 12.6 pl (mK)
- Printheads: 1 (C, M, Y, mK)
- Printhead nozzles: 1376
- Line accuracy: ±0.1%
- Minimum line width: 0.0008 in (HP-GL/2 addressable)
- Max optical density: 8 L* min/2.10 D
- Multifunction capabilities
- Scan speed: Up to 1.5 in/sec (color, 200 dpi)/Up to 4.5 in/sec (grayscale, 200 dpi)
- Scan resolution: Up to 600 dpi
- Scan format: JPEG, PDF, TIFF
- Scan destinations: Scan to email, scan to cloud (through HP Smart app), network, USB, computer, mobile
- Thickness: 0.03 in
- Media
- Handling: Sheet feed, roll feed, input tray, media bin, automatic horizontal cutter
- Roll size: 11 to 24 in
- Sheet size Input tray: 8.3 x 11 to 13 x 19 in
- Manual feed: 13 x 19 to 24 x 74.7 in
- Acoustics
- Sound pressure: 48 dB(A) (operating), <16 dB(A) (idle)
- Sound power: 6.5 B(A) (operating), <3.4 B(A) (idle)
- Power
- Consumption: 35 watts (printing), 3.5 watts (sleep), 0.2 watts (standby)
- Requirements: Input voltage (auto ranging): 100-240 V (±10%), 50/60 Hz (±3 Hz), 1.2 A max
Convenient—Fast, agile, intuitive print/scan/copy
The most compact multifunction plotter—with a sleek integrated design—is the ideal fit for the office and construction job site, and simplifies printing with HP Click printing software. Print from a smartphone or tablet with HP Mobile Printing.
Trusted—HP DesignJet quality and reliability
This reinforced, all-in-one printer with smart scanning handles all your document management from office to construction site. Get HP DesignJet print quality in half-size documents with the A4/A3 (Letter/B) input tray. A redesigned stand reduces CO2 emissions.
Communication—Immediately share meeting results
Enhance communication with peers/partners. With an intuitive single touchscreen, you can scan, copy, and share drawings immediately. Scan/email from the front panel. Use HP Smart app⁴ to email contacts or post to cloud from your smartphone or tablet.
