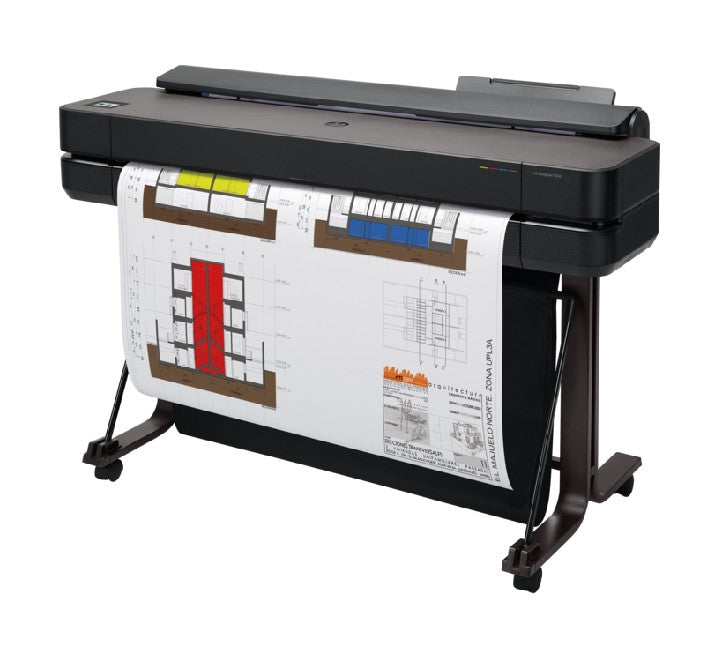

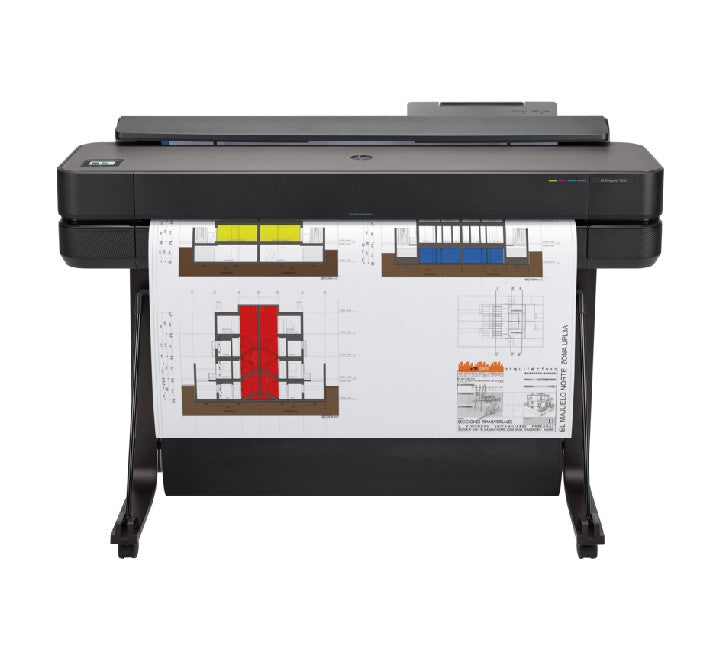

HP DesignJet T650 36-in Printer

HP DesignJet T650 36-in Printer

• Functions: Print
• Print speed: 25 sec/page on A1, 82 A1 prints per hour 1
• Ink drop: 5.5 pl (C, M, Y); 12 pl (K)
• Print head nozzles: 1376
• Print cartridge volume delivered: 80 ml (K); 38 ml (K); 29 ml (C, M, Y)
• Ink types: Dye-based (C, M, Y); pigment-based (K)
• Number of print cartridges: 4 (C, M, Y, K)
• Print heads: 1 (cyan, magenta, yellow, black)
• High capacity of page yield (colour): 20 ml of ink yields 101 A1 pages, taking into account maintenance routines 2
• Color(s) of printing supplies: Cyan, magenta, yellow, black
• Print quality color (best): Up to 2400 x 1200 optimised dpi
• Maximum optical density (black): 8 L* min/2.10 D 3
• Finished output handling: Sheet feed, roll feed, automatic sheet feeder, media bin, automatic horizontal cutter
• Media sizes standard (metric rolls): 279 to 914 mm
• Roll external diameter: 100 mm
• Roll maximum input: 1
• Roll maximum weight: 6.2 kg
• Recommended media: Q1396A HP Universal Bond Paper (FSC® certified) 4 (recyclable) 5 610 mm x 45.7 m;C6019B HP Coated Paper (FSC® certified) 4 (recyclable) 5 610 mm x 45.7 m;C6029C HP Heavyweight Coated Paper (FSC® certified) 4 (recyclable) 5 610 mm x 30.5 m
• Media thickness: Up to 11.8 mil
• Media thickness (metric): Up to 0.3 mm
• Media width, maximum: 914 mm
• Supported Primary Applications: Line drawings; Presentations; Renderings
• Non-printable area (cut-sheet): 5 x 5 x 5 x 17 mm (manual feed); 5 x 5 x 5 x 5 mm (input tray)
• Non-printable area (roll media): 5 x 5 x 5 x 5 mm
• Media sizes, custom: Auto sheet feeder: 210 x 279 to 330 x 482 mm; manual feed: 210 x 279 to 914 x 1897 mm
• Media sizes supported: Auto sheet feeder: A4, A3; manual feed: A4, A3, A2, A1, A0
• Media types: Bond and coated paper (bond, coated, heavyweight coated, plain, bright white, blueprint), technical paper (natural tracing), film (clear, matte), photographic paper (satin, gloss, semigloss, polypropylene), self-adhesive (adhesive, polypropylene)
• Media weight, recommended: 60 to 280 g/m² (roll/manual feed); 60 to 220 g/m² (auto sheet feeder)
• Model size: 914 mm
• Internal Storage: None
• Line accuracy: ±0.1% 6
• Printer drivers included: Raster driver for Windows and macOS
• Print languages: HP-GL/2, HP-RTL, CALS G4, JPEG, URF
• Print technology: HP Thermal Inkjet
• Theoretical minimum line width: 0.02 mm
• Printing path: Print Anywhere with HP Smart app, HP Click, HP driver for macOS, HP driver for Windows, printing support for Chrome OS, email printing, HP Print Service Plugin for Android, Apple AirPrint
• Connectivity, standard: Gigabit Ethernet (1000Base-T), Hi-Speed USB 2.0, Wi-Fi 802.11a/b/g/n, Wi-Fi Direct
• Minimum dimensions (W x D x H): 1317 x 605 x 932 mm
• Package dimensions (W x D x H): 1470 x 575 x 590 mm
• Acoustic power emissions (active, printing): 5.8 B(A) (operating), <3.4 B(A) (idle)
• Acoustic pressure emissions: 42 dB(A) (operating), <16 dB(A) (idle)
• Power consumption: <35 W (printing), <5.6 W (ready), <2.1 W (sleep), <0.2 W (standby)
• Power: Input voltage (auto ranging): 100-240 V (±10%), 50/60 Hz (±3 Hz), 1200 mA max

Extreme simplicity

Save time with the world's easiest job submission ³ tool - HP Click. Print multiple files in as little as one click. ⁴ Manage your large-format printing virtually anywhere and anytime with the HP Smart app. 1 GB memory. Includes printer stand.

Fits your office and budget

Save space with the world's smallest plotters. ⁵ A more sustainable design reduces CO2e up to 7.3 tons/year by units sold by using up to 30% recycled plastic. ⁶ Use up to 95% less ink for routine maintenance to get extra A1 pages/month.

Fits the way you work

Avoid waiting with high-speed printing as fast as 25 sec per A1 plot. Save time from job prep to final print. Print, and manage your plotter, from virtually anywhere, anytime with the HP Smart app. Get quality results with HP Bright Office Inks.
