Product Description

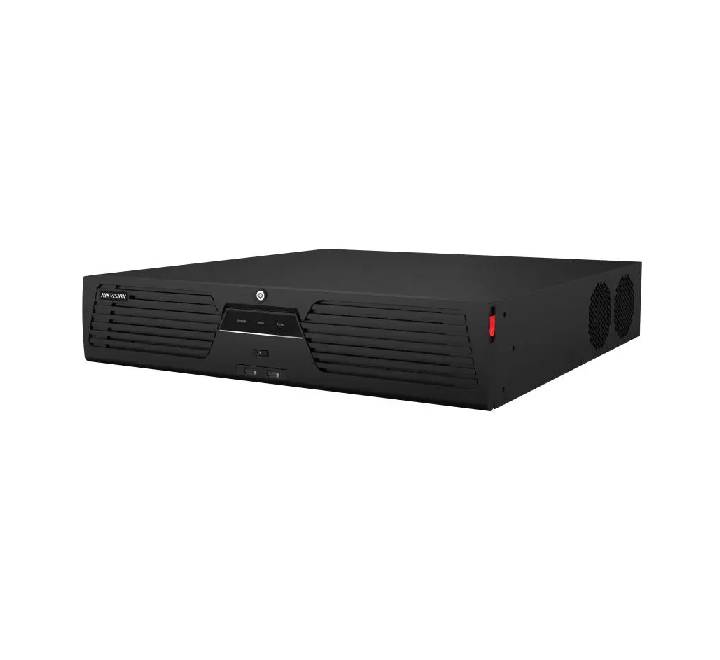

The Hikvision DS-9664NI-M8 is an enterprise-level 64-channel 2U Network Video Recorder engineered for large-scale security operations in banks, government infrastructure, shopping malls, factories, and commercial properties throughout Myanmar. Supporting ultra-high resolution recording up to 32 MP and groundbreaking 8K video output via HDMI, this M-Series NVR guarantees uncompromised clarity for critical monitoring.
Equipped with a maximum incoming and outgoing bandwidth of 400 Mbps, the DS-9664NI-M8 effortlessly handles simultaneous high-bitrate video streams from 64 IP cameras. H.265+ smart video compression reduces bandwidth requirements and storage overhead by up to 75% without degrading image fidelity. With 8 hot-swappable SATA hard drive bays supporting up to 16TB per disk (128TB total capacity) and advanced RAID array protection, your security data remains fully redundant and protected against hardware failures.
Key Enterprise Features
8K Ultra HD & Dual 4K Output
Features dual HDMI and dual VGA independent outputs. HDMI 1 supports up to 8K (7680 × 4320) resolution, giving control room operators unmatched visual detail for multi-screen live viewing.
High-Capacity Decoding & Bandwidth
Delivers up to 400 Mbps incoming / outgoing bandwidth. Strong decoding capability supports up to 2-ch @ 32 MP, 8-ch @ 8 MP, or 40-ch @ 1080p simultaneous playback at 30 fps.
Hardware RAID Data Safety
Built-in support for RAID 0, 1, 5, 6, 10, and N+M hot spare configurations. Guarantees zero data loss even in the event of hard drive hardware failure.
Deep Learning & Special AI Cameras
Seamlessly integrates with specialized Hikvision cameras including ANPR (License Plate Recognition), People Counting, Heat Mapping, and Fisheye Dewarping cameras.
Dual Gigabit Network Interfaces
Equipped with two self-adaptive RJ-45 10/100/1000 Mbps network ports supporting Multi-address, Network Fault Tolerance, and Load Balance modes for uninterrupted connectivity.
Secure Encrypted Streaming
Employs Stream over TLS encryption technology and double verification mechanisms for playback and downloading to ensure full compliance with modern cybersecurity protocols.
Technical Specifications
| Category | Specification Details |
|---|---|
| IP Video Input | 64 Channels (Up to 32 MP camera resolution) |
| Bandwidth Capacity | Incoming Bandwidth: 400 Mbps | Outgoing Bandwidth: 400 Mbps |
| Video Output | • HDMI 1: 8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz • HDMI 2: 4K (3840 × 2160)/60Hz • VGA 1 / VGA 2: 1920 × 1080/60Hz • CVBS: 1-ch BNC |
| Decoding Capability | 2-ch @ 32 MP (30 fps) / 8-ch @ 8 MP (30 fps) / 16-ch @ 4 MP (30 fps) / 40-ch @ 1080p (30 fps) |
| Video Codec Compression | H.265+ / H.265 / H.264+ / H.264 |
| Storage / SATA Bays | 8 SATA Interfaces (Up to 16TB capacity per HDD, 128TB Total) + 1 eSATA Interface |
| RAID Types | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, N+M Hot Spare |
| Synchronous Playback | 16 Channels |
| Network Protocols | TCP/IP, DHCP, IPv4/IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF (Profile S/G/T) |
| External Interfaces | 2× RJ-45 Gigabit, 2× USB 2.0 (Front), 2× USB 3.0 (Rear), 1× RS-485, 1× RS-232, 16 In / 9 Out Alarm I/O |
| Power Supply & Consumption | 100 to 240 VAC, 50 to 60 Hz | Power Consumption: ≤ 50 W (without HDD) |
| Form Factor & Weight | 2U Rack-mountable Chassis | Dimensions: 445 × 465 × 93 mm | Weight: ≤ 10 kg |
🇲🇲 Why Buy Hikvision from ICT.com.mm in Myanmar?
- 100% Genuine Hikvision Product: Sourced through official distribution channels with authentic serial numbers.
- Official Warranty Support: Backed by official service warranty in Yangon and Mandalay.
- Fast Nationwide Delivery: Express shipping available to Yangon, Mandalay, Naypyidaw, Taunggyi, Mawlamyine, and across all states/regions.
- Project & B2B Solutions: Custom Quotations (RFQ), Tax Invoices, and Technical Pre-Sales Support available for CCTV installers and system integrators.
