Description

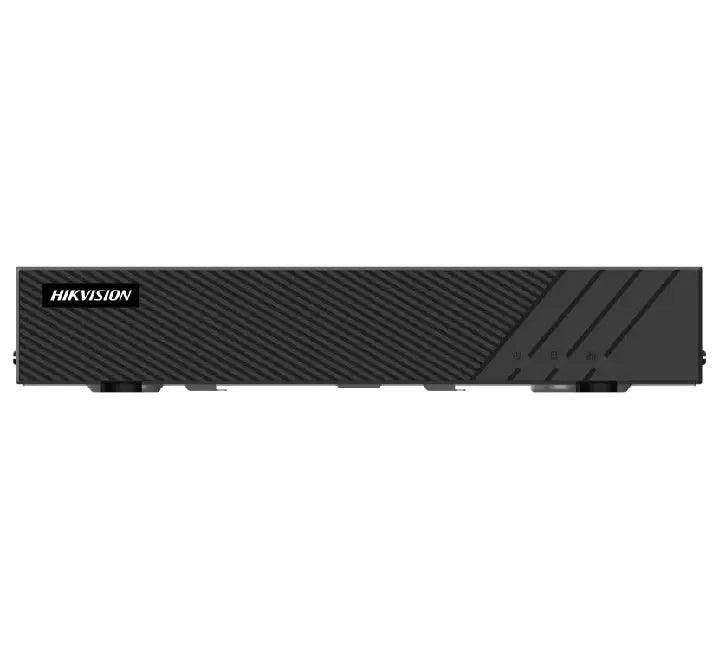

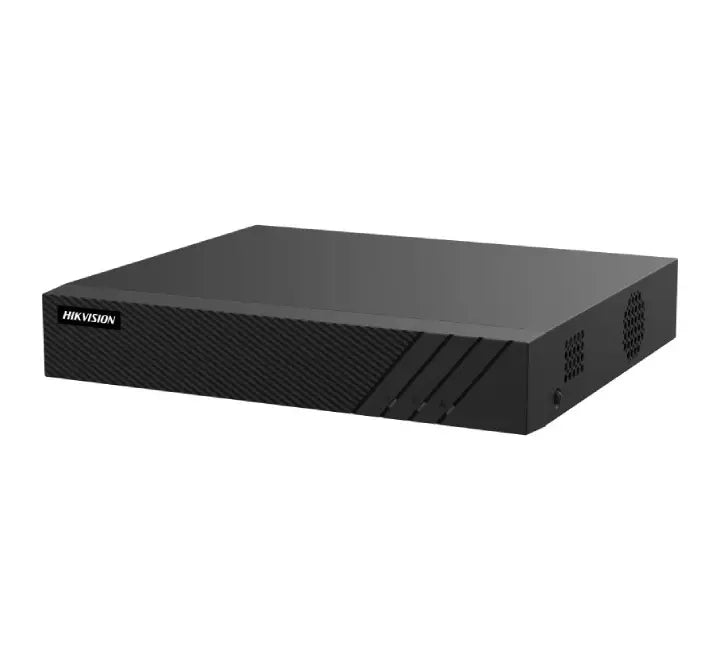

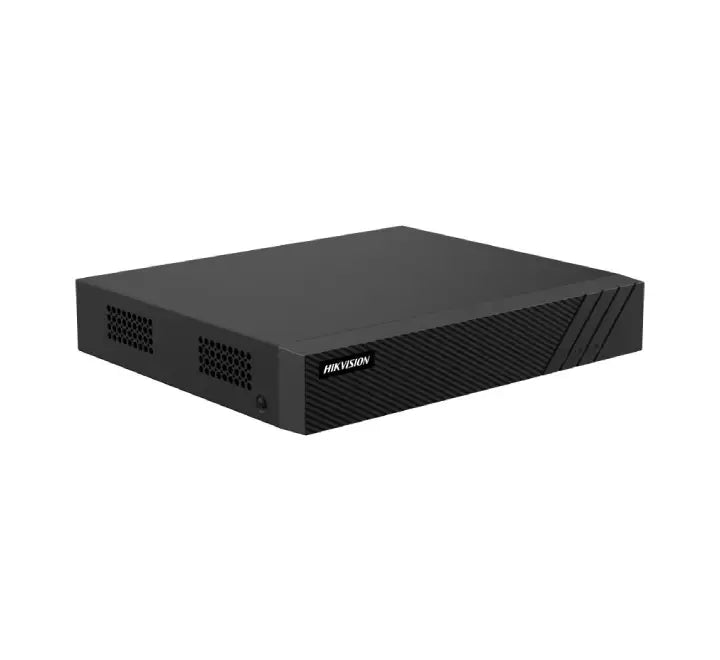

The Hikvision DS-7608NI-Q1(E) is an advanced, high-performance 8-channel Network Video Recorder (NVR) designed to deliver crystal-clear 4K video recording and live viewing. Equipped with Motion Detection 2.0, this Pro Series recorder uses smart human and vehicle target classification to virtually eliminate false alarms. Featuring next-generation H.265+ video compression technology, it dramatically optimizes storage and bandwidth usage without compromising image clarity.
Key Features
- Up to 8 Channel IP Camera Inputs: Connect and manage up to 8 IP surveillance cameras simultaneously.
- Ultra HD 4K Resolution: Supports up to 8 MP high-definition recording and 4K (3840 × 2160) HDMI video output.
- Motion Detection 2.0: Advanced AI feature that classifies humans and vehicles to reduce false alerts from animals, leaves, or weather.
- Efficient H.265+ Compression: Reduces bandwidth and storage requirements by up to 75% compared to standard H.264 formats.
- High Decoding Capacity: Capable of decoding 1-ch @ 8 MP (30 fps), 3-ch @ 4 MP (30 fps), or 6-ch @ 1080p (30 fps).
- Massive Hard Drive Support: Features 1 SATA interface supporting up to 8 TB HDD capacity per disk for long-term video retention.
- Simultaneous Display Output: Simultaneous HDMI and VGA output for flexible monitor connections.
- Remote Monitoring: Seamless integration with Hik-Connect for easy remote live viewing, alerts, and playback via iOS or Android.
Technical Specifications
| Category | Specification |
|---|---|
| Model | DS-7608NI-Q1(E) |
| IP Video Input | 8 Channels |
| Incoming / Outgoing Bandwidth | 80 Mbps / 80 Mbps |
| Recording Resolution | 8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF |
| Decoding Formats | H.265+ / H.265 / H.264+ / H.264 |
| HDMI Output | 1-ch, 4K (3840 × 2160)/30Hz, 2K, 1080p |
| VGA Output | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz |
| Smart Analysis | Motion Detection 2.0 (4-ch Human & Vehicle classification) |
| Synchronous Playback | 8 Channels |
| SATA Interface | 1 SATA Interface (Up to 8 TB capacity per HDD) |
| Network Protocols | TCP/IP, DHCP, IPv4, IPv6, Hik-Connect, DNS, DDNS, NTP, RTSP, HTTPS |
| USB Interfaces | 1 × Front USB 2.0, 1 × Rear USB 2.0 |
| Power Supply | 12 VDC, 1.5 A |
| Power Consumption | ≤ 10 W (without HDD) |
| Dimensions (W × D × H) | 320 × 240 × 48 mm (12.4" × 9.4" × 1.9") |
