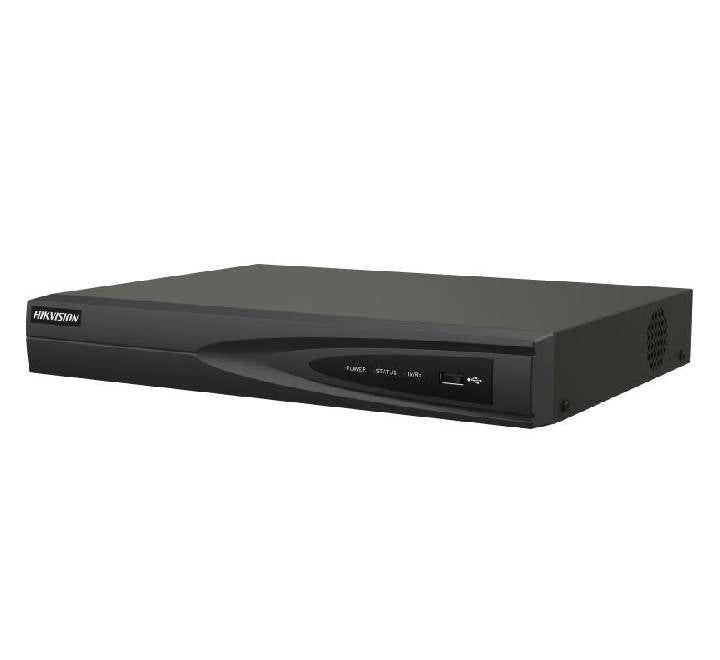

Hikvision DS-7604NI-Q1/4P 4-Channel 4K NVR with 4 PoE Ports
Power and manage your high-definition IP surveillance system with the Hikvision DS-7604NI-Q1/4P, a reliable 4-channel Network Video Recorder (NVR) built for small business and residential security setups. Supporting video decoding up to 8 MP (4K Ultra HD) resolution, this NVR ensures every frame is recorded with crystal-clear precision.
Designed for plug-and-play simplicity, the DS-7604NI-Q1/4P includes 4 independent Power over Ethernet (PoE) network interfaces, supplying both power and video data to connected IP cameras over a single network cable. With advanced H.265+ video compression technology, it significantly reduces bandwidth usage and storage requirements while maintaining top-tier image quality.
Key Features
- 4-Channel 4K Video Input: Connect up to 4 IP network cameras with resolution support up to 8 MP (4K) for high-definition monitoring.
- 4 Built-In PoE Interfaces: Independent 10/100 Mbps PoE ports provide easy plug-and-play installation with direct power and connectivity for IP cameras.
- Efficient H.265+ Compression: Reduces bandwidth and storage consumption by up to 75% compared to standard H.264 without sacrificing video clarity.
- 4K HDMI & VGA Simultaneous Output: Supports HDMI output up to 4K (3840 × 2160) resolution alongside a standard VGA output for versatile display setups.
- High Decoding Capability: Capable of decoding 1-ch @ 8 MP, 3-ch @ 4 MP, or 6-ch @ 1080p, ensuring smooth multi-channel live views and playback.
- High Storage Capacity: Features 1 SATA interface supporting hard drives up to 8 TB capacity for long-term video retention.
- Smart Network Management: Hik-Connect app integration allows seamless remote live viewing, playback, and instant push notifications on iOS and Android devices.
Technical Specifications
| Category | Specification |
|---|---|
| IP Video Input | 4 Channels (Up to 8 MP Resolution) |
| Incoming / Outgoing Bandwidth | 40 Mbps / 80 Mbps |
| Video Decoding Formats | H.265+ / H.265 / H.264+ / H.264 |
| HDMI Output | 1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080/60Hz |
| VGA Output | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz |
| Decoding Capability | 1-ch @ 8 MP / 3-ch @ 4 MP / 6-ch @ 1080p |
| PoE Interfaces | 4 Independent 10/100 Mbps PoE Ports (IEEE 802.3 af/at, Max 36W) |
| Storage (SATA) | 1 SATA Interface (Up to 8 TB capacity for each disk) |
| USB Interface | 2 × USB 2.0 (Rear Panel) |
| Network Protocol | TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, UPnP, HTTPS |
| Power Supply & Consumption | 48 VDC, 1.35 A (Power consumption ≤ 10 W without HDD/PoE) |
| Form Factor & Dimensions | 1U Chassis (320 × 240 × 48 mm / 12.6″ × 9.4″ × 1.9″) |
