Description

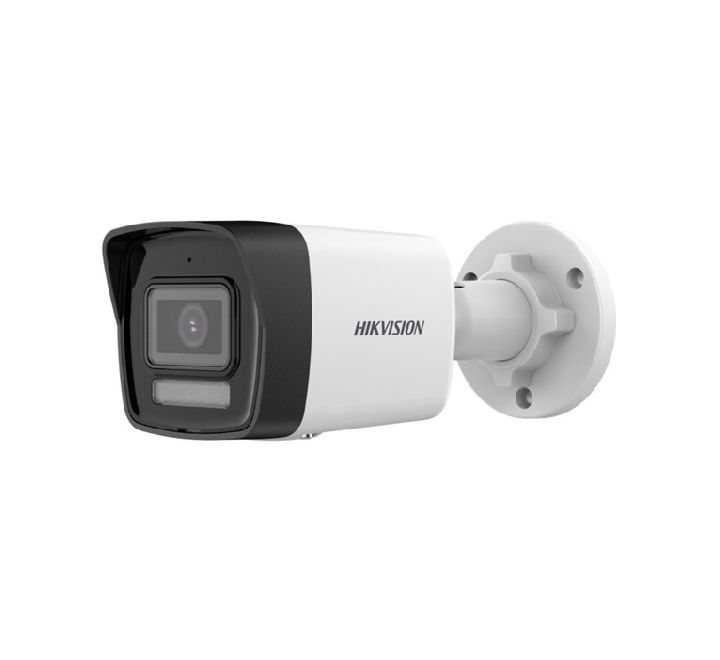

Hikvision DS-2CD1023G2-LIU 2 MP Smart Hybrid Light Fixed Bullet Network Camera (2.8mm)
Protect your residential or commercial property with the Hikvision DS-2CD1023G2-LIU (2.8mm), a high-performance 2 MP outdoor bullet IP camera. Equipped with a wide-angle 2.8mm lens (providing a 103° horizontal field of view), this camera provides expansive surveillance coverage, making it ideal for entryways, driveways, yards, and retail spaces.
Featuring Hikvision's innovative Smart Hybrid Light technology, the camera intelligently toggles between discrete infrared (IR) night vision and full-color supplemental lighting when a human or vehicle is detected. Coupled with Motion Detection 2.0, it filters out false alarms caused by moving foliage or animals while preserving critical details when security events occur.
Key Features
- 2 MP High-Definition Imaging: Delivers sharp 1080p Full HD video stream at up to 30 frames per second.
- Wide-Angle 2.8mm Lens: Provides a wide 103° horizontal field of view to capture broad areas with a single camera.
- Smart Hybrid Lighting: Offers three lighting modes (IR Mode, White Light Mode, and Smart Mode) with illumination reaching up to 30 meters (98 feet).
- Motion Detection 2.0: Utilizes deep learning to accurately classify human and vehicle targets, dramatically minimizing false alerts.
- Built-In Audio Recording: Features an integrated microphone for real-time audio monitoring and enhanced security recording.
- Efficient H.265+ Compression: Reduces bandwidth and storage usage by up to 75% while preserving pristine image quality.
- IP67 Outdoor Weather Resistance: Durable dust- and water-resistant housing built to withstand harsh weather conditions.
- Flexible Power Options: Supports standard Power over Ethernet (PoE 802.3af) for single-cable setup, or a standard 12 VDC power connection.
Technical Specifications
| Category | Specification |
|---|---|
| Model Code | DS-2CD1023G2-LIU (2.8mm) |
| Image Sensor | 1/2.9" Progressive Scan CMOS |
| Max. Resolution | 2 MP (1920 × 1080 px) @ 25/30 fps |
| Focal Length & FOV | 2.8 mm; Horizontal FOV: 103°, Vertical FOV: 56°, Diagonal FOV: 121° |
| Illuminator Range | Up to 30 m (98 ft) for IR and White Light |
| Supplemental Light Type | IR & White Light (Smart Hybrid Light) |
| Video Compression | H.265+ / H.265 / H.264+ / H.264 |
| Audio Input | Built-in Microphone |
| Target Classification | Human & Vehicle Classification (Motion Detection 2.0) |
| Ingress Protection | IP67 Weatherproof (Water and Dust Resistant) |
| Network Interface | 1 RJ45 10M/100M Self-Adaptive Ethernet Port |
| Power Supply | 12 VDC ± 25% (Max. 5W) or PoE (802.3af, Class 3, Max. 6.5W) |
| Dimensions & Weight | 170.8 mm × 66 mm × 69.1 mm (Approx. 270 g / 0.6 lb) |
