Description

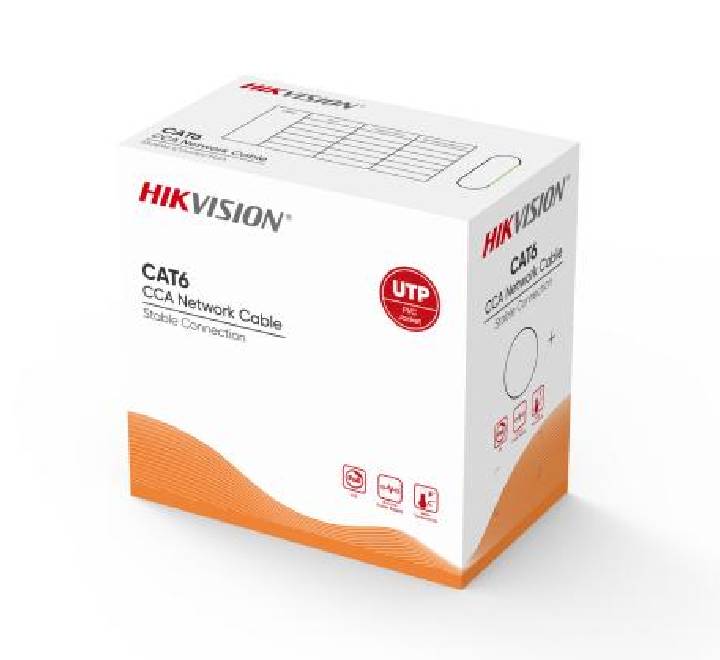

Hikvision DS-1LN6U-W/CCA 305 m CAT6 UTP Network Cable (CCA,0.565 mm)
- 305 m cost-effective CAT6 CCA network cable
- Full diameter and full length
- Quality verified by Fluke test
- Guaranteed long PoE transmission distance
- General
- Packing:Carton
- Carton Dimension:41x41x24cm
- Packing length:(305±1.5)m
- Rip-cord:Yes
- Drain wire:No
- Sheath Physical Properties
- Before Aging Tensile Strength (Mpa) ≥13.5, Elongation(%) ≥150,Aging Period(℃×hrs)
- 100℃×24h×7d,After Aging ,Tensile Strength(Mpa) ≥12.5, variance ratio:±25%,
- Elongation(%) ≥125, variance ratio:±20%,Cold bend(-20±2℃×4h) 8×Cable O.D.，No
- visible cracks,
- Electrical Characteristics (20℃)
- 1.0-100.0MHz Impedance(Ω) 100±15,100 - 250MHz Impedance(Ω) 100±25,1.0-
- 100.0MHz Delay Shew (ns/100m) ≤45,DC ResistanceΩ/100m) max 12,DC Conductor
- Resistance Unbalance(%) max 2,
