Description

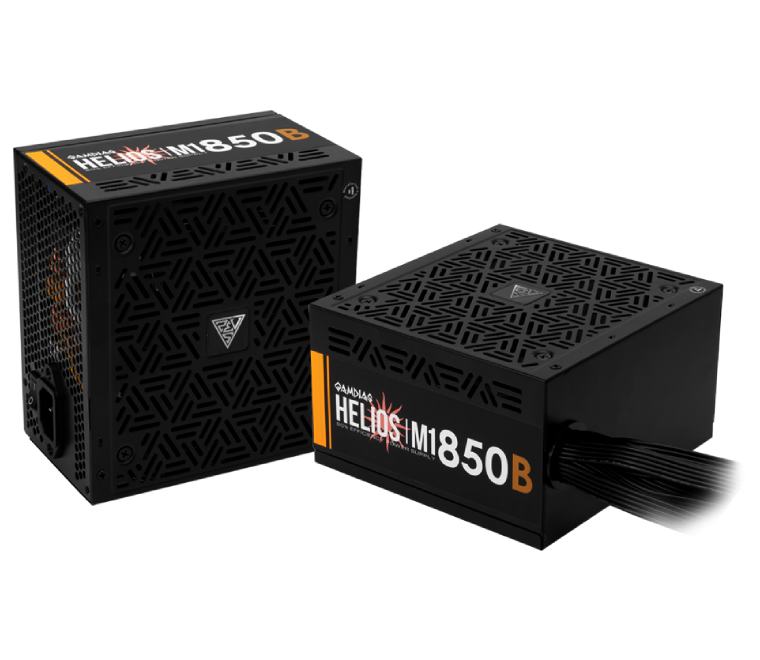

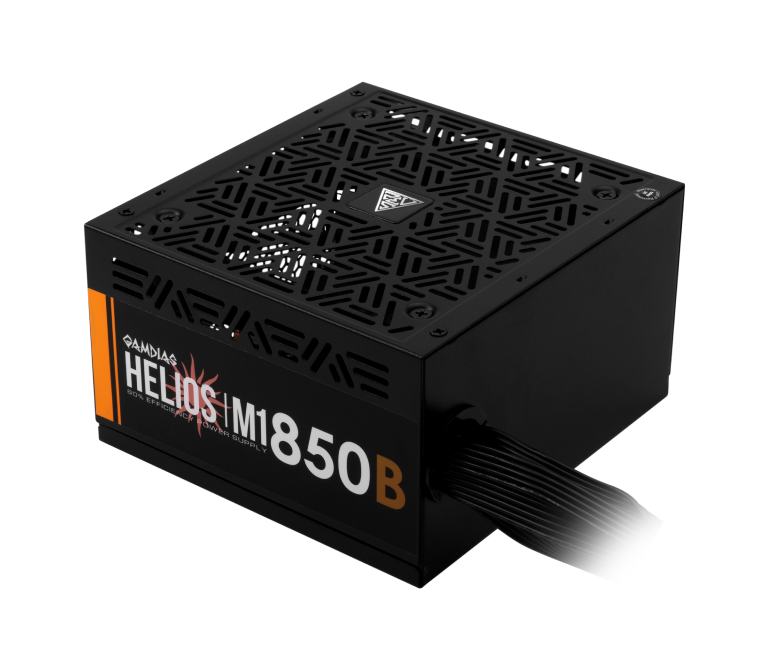

Gamdias HELIOS M1-850B Power Supply
- Type: ATX12V v2.4
- Efficiency: Meet 80 PLUS Bronze efficiency
- Power Factor Correction: APFC with PF value of 0.99
- Dimension (L x W x H): 140 x 150 x 86 mm
- Support C6/C7 power state: Yes
- AC Input: 100-240V / 5.5-11A / 47-63Hz
- DC Output: +3.3V / +5V / +12V / -12V / +5Vsb
- Max. Output Current: 20A / 20A / 70A / 0.3A / 2.5A
- Max. Output Power: 130W / 840W / 3.6W / 12.5W
- Total Power: 850W
- Protection: OVP / UVP / OPP / OCP / SCP / SP / ICP
- Main Power: 1 (20+4 Pin)
- CPU: 2 (4+4 Pin)
- PCI-E: 4 (6+2 Pin)
- SATA: 6 (5 Pin)
- Molex: 4 (4 Pin)
- Flat Cable: Yes
- Modular: Non Modular
- Flat Cable: Yes
- Silent Mode: No
- DC to DC: Yes
