Description

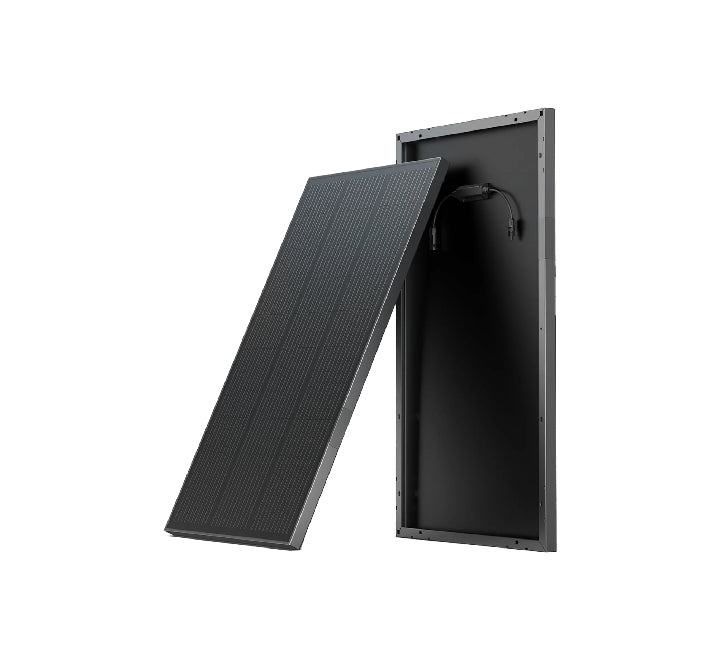

EcoFlow 100W Rigid Solar Panel (2 pcs)
Double Your Clean Energy Output with High-Efficiency Permanent Solar Arrays
Supercharge your off-grid energy generation with the EcoFlow 100W Rigid Solar Panel (2-Piece Bundle). Engineered using top-tier monocrystalline cells with a class-leading 23% conversion efficiency rating, this dual-panel set delivers reliable and rapid power to your EcoFlow Power Kits, portable power stations, or custom 12V/24V/48V home ecosystems. Wrapped in a premium all-black aesthetic that integrates seamlessly onto any building or vehicle roofline, this structural kit is the ultimate permanent answer to sustainable independent living.
Key Features
- High-Efficiency Power Generation: Delivers an excellent 23% conversion rate, accelerating battery bank recharge times when paired with EcoFlow portable power stations and smart MPPT controllers.
- Durable Structure & Armor: Constructed with heavy-duty tempered safety glass protective lamination over premium monocrystalline cells, all secured inside an anti-corrosive aluminum casting frame.
- IP68 Extreme Weatherproof Rating: Fully certified to handle brutal environmental wear—impervious to heavy dust, low-pressure water sprays, howling winds up to 130 mph, and crushing snow loads.

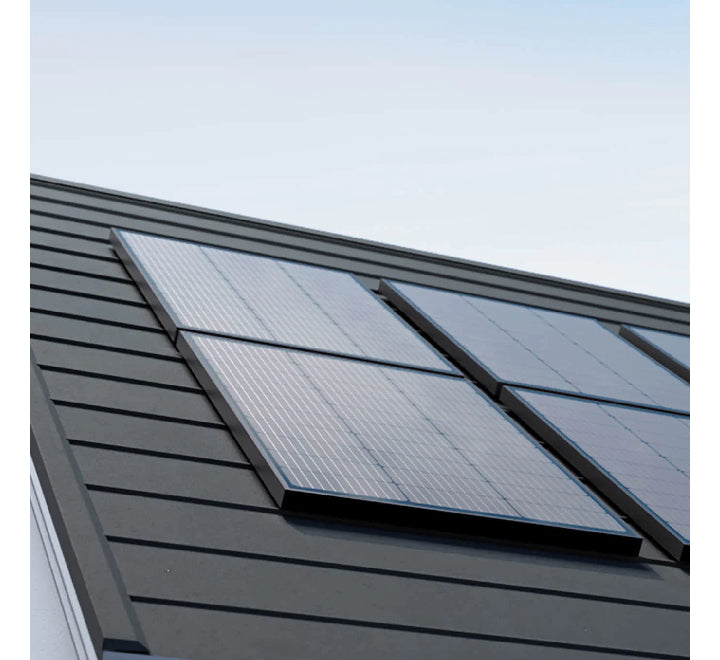

- Pre-Drilled Mounting Points: Built-in structural frames feature pre-drilled slot corridors out of the box, ensuring quick, secure alignments on camper vans, overlanding rigs, or tiny-home platforms.
- Universal Solar Connectivity: Uses an industry-standard MC4 solar connector array for native plug-and-play expansions into standard third-party hardware or existing power banks.
- Comprehensive 5-Year Warranty Protection: Backed by an extensive 5-year manufacturer warranty ensuring enduring technical support and material performance assurance.
Technical Specifications (Per Single Panel)
| Specification Parameter | Details / Measurements (Per Unit) |
|---|---|
| Brand Manufacturer | EcoFlow |
| Pack Quantity | 2 Pieces (Totaling 200W Output Potential) |
| Rated Power Output | 100W (+/-5W) |
| Solar Cell Type & Busbars | Monocrystalline Silicon (10 Busbar Grid) |
| Cell Efficiency Rate | 23% Max Conversion |
| Open Circuit Voltage (Voc) | 20.3 Volts |
| Short Circuit Current (Isc) | 6.3 Amps |
| Maximum Operating Voltage (Vmp) | 17.1 Volts |
| Maximum Operating Current (Imp) | 5.9 Amps |
| Maximum System / Fuse Volts | 600 VDC (UL) / 15A Max Fuse Current |
| Ingress Waterproof Shield | IP68 Certified Ingress Shield |
| Solar Cable Connector Profile | Standard Waterproof MC4 Solar Interface |
| Physical Dimensions | 98 × 58.6 × 3.0 cm (38.6 × 23.1 × 1.2 inches) |
| Net Hardware Weight | Approx. 6.2 kg (13.7 lbs) per panel |
