Description

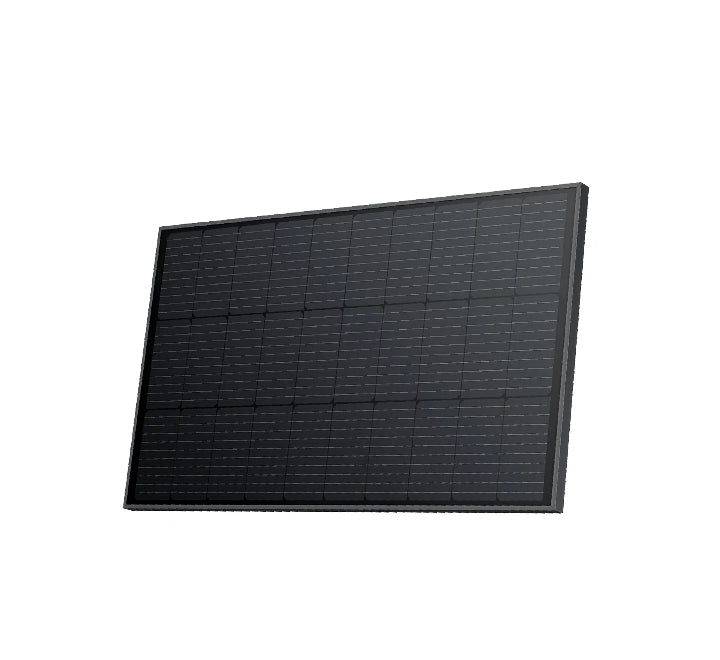

EcoFlow 100W Rigid Solar Panel (1 pc)
High-Efficiency Permanent Solar Power for Off-Grid Living

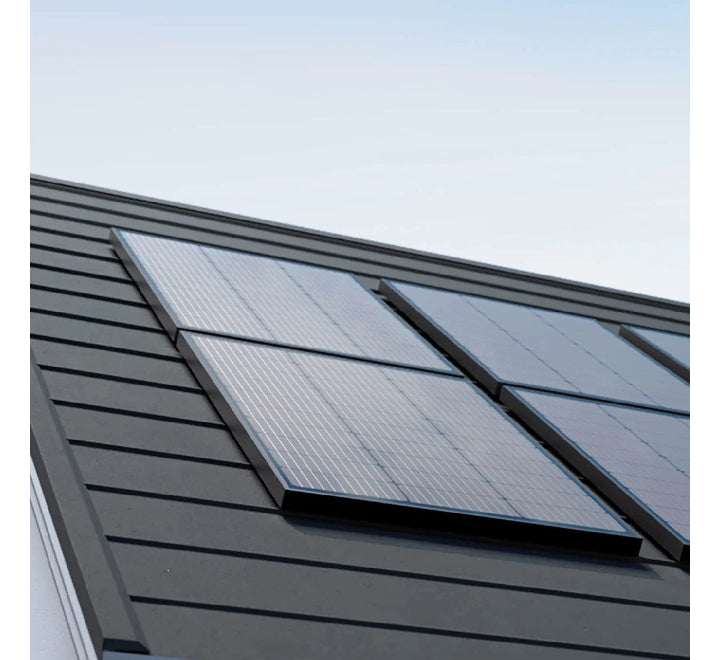

Upgrade your long-term renewable energy setups with the EcoFlow 100W Rigid Solar Panel (Single Unit). Engineered with premium grade-A monocrystalline cells, this robust photovoltaic module boasts an outstanding 23% conversion efficiency rating to charge your batteries faster. Wrapped in a sleek, all-black design that blends seamlessly with any roof profile, this solar panel is perfect for permanent residential setups, camper vans, marine docks, and independent off-grid energy configurations.
Key Features
- Industry-Leading 23% Efficiency: Utilizes high-performance monocrystalline silicon grids to maximize solar capture and accelerate battery charge times, even on low-sunlight days.
- Durable & Anti-Corrosive Frame: Built with a heavy-duty, anti-corrosive anodized aluminum casing frame layered with premium lamination and tempered safety glass to protect cells for years outdoors.
- IP68 Complete Weatherproof Armor: Certified water and dust resistant, this panel safely withstands wind pressures of up to 130 mph, dirt accumulation, low-pressure water sprays, and heavy snow loads.
- Ready-to-Install Prep: Pre-drilled installation slots run along the structural chassis edges to ensure direct, secure mounting with standard solar feet brackets on any flat or angled surface.
- Universal Solar Integration: Outfitted with universal MC4 connectors for hassle-free connection with EcoFlow Power Kits, portable power stations, and custom third-party 12V/24V/48V power networks.
- 5-Year Manufacturer Warranty: Fully backed by a local 5-year product warranty providing reliable technical security and material performance assurance.
Technical Specifications
| Specification Parameter | Details / Measurements |
|---|---|
| Brand Manufacturer | EcoFlow |
| Rated Power Output | 100W (+/-5W) |
| Solar Cell Type | Monocrystalline Silicon (10 Busbar) |
| Cell Efficiency Rate | 23% |
| Open Circuit Voltage (Voc) | 20.3 Volts |
| Short Circuit Current (Isc) | 6.3 Amps |
| Maximum Operating Voltage (Vmp) | 17.1 Volts |
| Maximum Operating Current (Imp) | 5.9 Amps |
| Maximum System Voltage | 600 VDC (UL) |
| Maximum Fuse Current | 15 Amps |
| Waterproof Ingress Protection | IP68 Certified Protection |
| Output Connector Type | Universal Waterproof MC4 Connector System |
| Physical Dimensions | 98 × 58.6 × 3.0 cm (38.6 × 23.1 × 1.2 in) |
| Net Hardware Weight | Approx. 6.2 kg (13.7 lbs) |
| Warranty Term | 5 Years Local Warranty Support |
