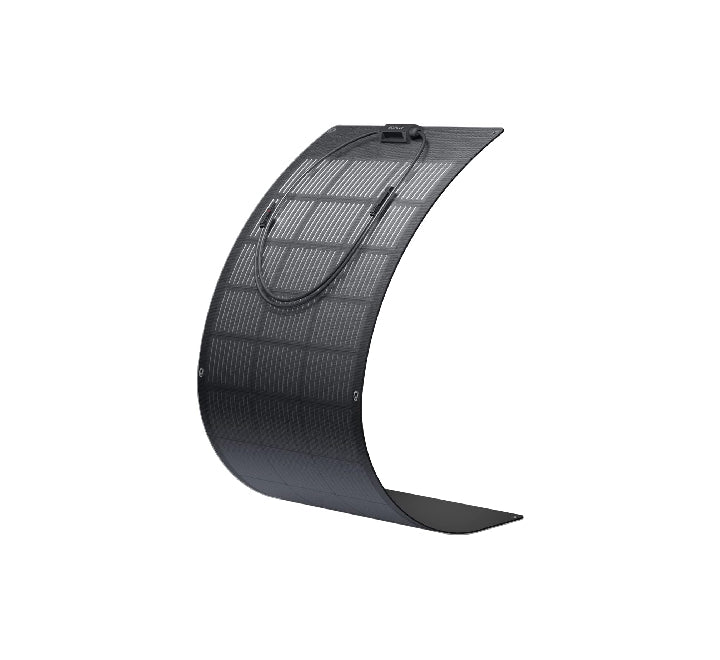

EcoFlow 100W Flexible Solar Panel
Lighter, Slimmer, and Aerodynamic Solar Energy For Mobile Off-Grid Spaces
Ditch the bulky brackets and heavy glass panels with the EcoFlow 100W Flexible Solar Panel. Engineered specifically to match the uneven curves of RV roofs, camper vans, overlanding vehicles, and boats, this highly adaptive monocrystalline solar panel offers an advanced solar solution without modifying your vehicle's aerodynamics. Weighing up to 70% less than traditional rigid solar panels, it combines unmatched physical adaptability with a class-leading solar cell conversion rate.
Key Features

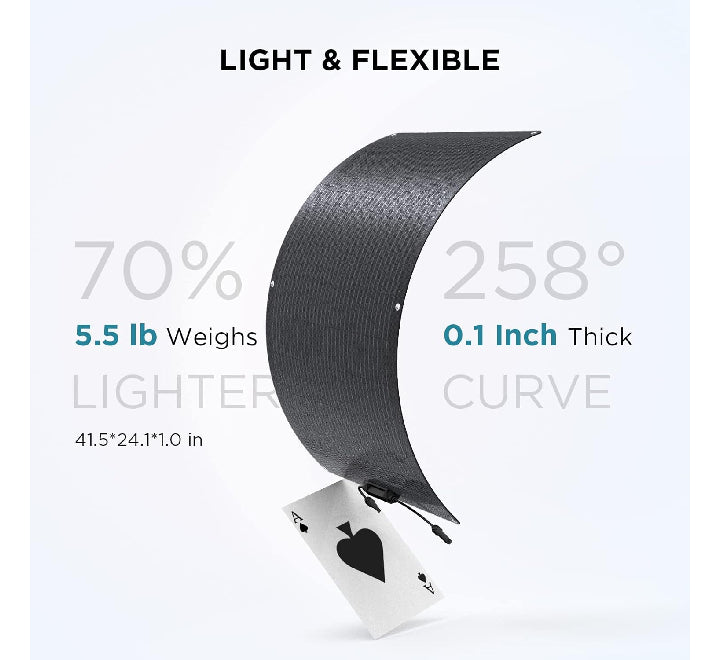

- Unmatched 258° Curvature Flexibility: Effortlessly contours to the specific arc profiles of vehicle rooftops, boat cabins, and teardrop trailers without suffering cell performance degradation.
- Featherlight Structural Profile: Weighing only 2.3 kg (5.1 lbs), it removes traditional installation strains and avoids adds unnecessary weight overhead to your vehicle.

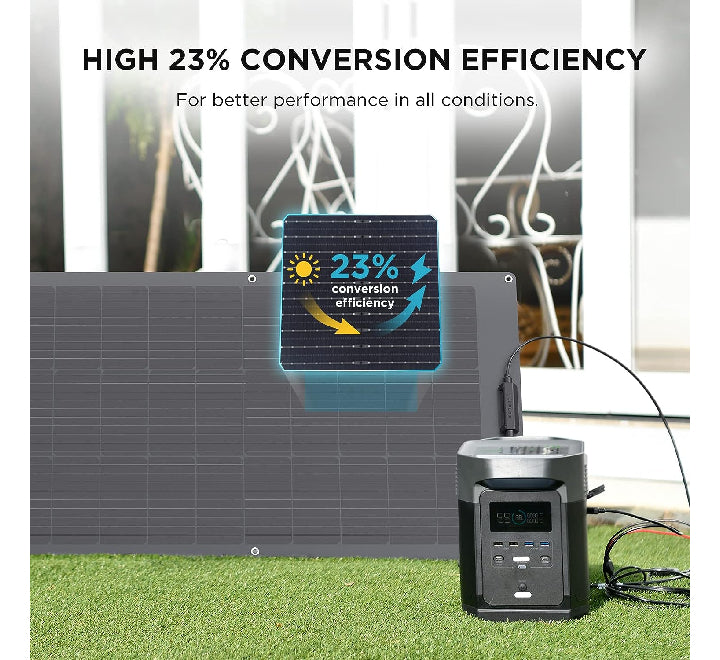

- Premium 23% Conversion Efficiency: Formed with advanced grade-A monocrystalline cells paired with integrated bypass diodes to safeguard maximum energy harvest even in partially shaded environments.
- IP68 Waterproof Armor: Reinforced using premium ETFE protective films and an advanced fiberglass lamination process, making it impervious to heavy rainstorms, dirt, dust, and coastal saltwater mist.
- Hassle-Free Eyelet Mounting: Designed with pre-cut metallic eyelets along the frame edges, allowing immediate installation using traditional fasteners, carabiner clips, or heavy-duty structural adhesives.
- Universal Solar Connectivity: Equipped with industry-standard MC4 solar connectors for native plug-and-play integration with EcoFlow Power Kits, portable power stations, and third-party 12V/48V solar systems.
Technical Specifications
| Specification Parameter | Details / Measurements |
|---|---|
| Brand Developer | EcoFlow |
| Rated Solar Output Power | 100 Watts (+/-5W) |
| Solar Cell Efficiency | 23% Max Conversion |
| Cell Technology Type | High-Efficiency Monocrystalline Silicon |
| Open Circuit Voltage (Voc) | 20.3 Volts |
| Short Circuit Current (Isc) | 6.3 Amps |
| Maximum Operating Voltage (Vmp) | 17.1 Volts |
| Maximum Operating Current (Imp) | 5.9 Amps |
| Output Connector Type | Standard MC4 Connectors (1-Meter Charging Cable Attached) |
| Waterproof / Ingress Class | IP68 Certified Ingress Rating |
| Net Hardware Weight | Approx. 2.3 kg / 5.1 lbs |
| Physical Dimensions (LxWxH) | 1055 × 612 × 25 mm / 41.5 × 24.1 × 1.0 in |
| Warranty Protection | 3-Years Extended Manufacturer Warranty |
