Description
Product Overview

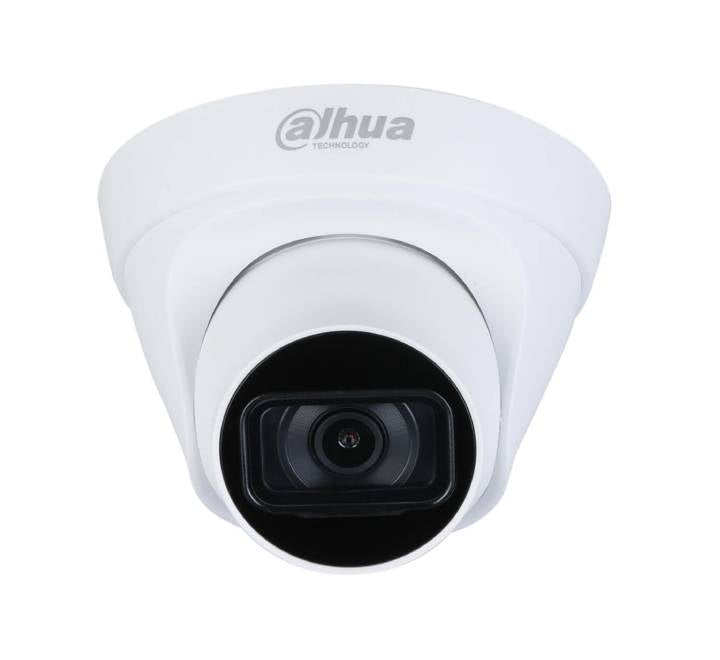

Enhance your home or business security with the Dahua IPC-HDW1230T1-A-S5 2MP Entry IR Fixed-Focal Eyeball Network Camera. Designed with a compact, vandal-resistant dome form factor, this camera delivers high-definition 1080p Full HD video recording with crisp detail day and night.
Featuring a wide 2.8mm fixed lens with a 102° horizontal field of view, Smart IR night vision up to 30 meters (98 ft), an integrated built-in microphone for real-time audio surveillance, and IP67 weather resistance, the Dahua IPC-HDW1230T1-A-S5 provides dependable performance for both indoor and outdoor security setups.
Key Features
- 2MP Full HD Clarity: 1/2.8" CMOS sensor capturing sharp 1080p video at up to 25/30 frames per second.
- Built-in Microphone: Real-time audio surveillance allowing you to monitor sound alongside visual feed.
- 2.8mm Wide-Angle Lens: Delivers a wide 102° horizontal coverage, reducing blind spots in rooms, hallways, and outdoor areas.
- Smart IR Night Vision: Integrated IR LED automatically adjusts illumination intensity up to 30m (98 ft) for clear grayscale video in complete darkness.
- Smart H.265+ Compression: Reduces bandwidth utilization and storage space by up to 70% without sacrificing video quality.
- Power over Ethernet (PoE): IEEE 802.3af PoE support simplifies installation by carrying power and data over a single network cable.
- Weatherproof IP67 Rating: Built with a durable metal and plastic casing suitable for extreme weather (-40°C to +60°C).
- Smart Motion & Anomaly Detection: Built-in triggers for motion detection, video tampering, network disconnection, and IP conflicts.
Technical Specifications
| Category | Specification Details |
|---|---|
| Model | Dahua DH-IPC-HDW1230T1-A-S5 |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Max. Resolution | 2 Megapixel (1920 × 1080) @ 25/30 fps |
| Lens / Focal Length | 2.8 mm Fixed Lens (F2.0) |
| Field of View (FOV) | Horizontal: 102° | Vertical: 54° | Diagonal: 120° |
| IR Distance | Up to 30 meters (98.4 ft), Smart IR |
| Audio Support | Built-in Microphone |
| Video Compression | H.265 / H.264 / Smart H.265+ / Smart H.264+ |
| Min. Illumination | 0.01 Lux @ F2.0 (Color), 0 Lux with IR on |
| Day/Night Switching | Auto (ICR) / Color / B/W |
| Image Enhancement | DWDR, 3D NR, BLC, HLC, Mirror, Privacy Masking |
| Network Interface | RJ-45 (10/100 Base-T) | Protocols: IPv4, HTTP, RTSP, ONIF Profile S/T |
| Power Options | 12V DC / PoE (802.3af) |
| Power Consumption | Basic: 1.2W (12V DC) / Max: 4.1W (PoE + IR on) |
| Protection Rating | IP67 Weatherproof |
| Operating Conditions | -40°C to +60°C (-40°F to +140°F), <95% Humidity |
| Dimensions & Weight | 85.5 mm × Φ109 mm (3.4" × Φ4.3") | Net Weight: 0.24 kg (0.53 lb) |
