Description

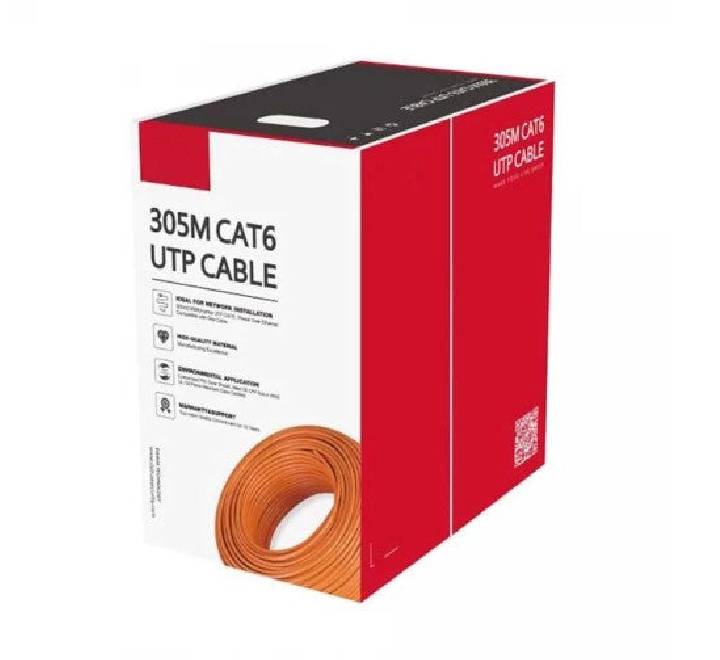

Ensure reliable, high-speed network performance and long-distance PoE transmission with the Dahua DH-PFM920I-6UN-C-UTP CAT6 Cable. Spanning a full 305 meters (1000 ft) in a high-visibility orange PVC jacket, this cable is engineered with high-purity oxygen-free copper to meet demanding professional security, CCTV installation, and enterprise networking demands.
Key Features
- 305-Meter Spool Length: Standard 305m (1000 ft) pull-box packaging designed for effortless deployment and neat cable management in large projects.
- 99.99% Oxygen-Free Copper (OFC): Built with high-purity conductor material to guarantee superior electrical conductivity, minimal signal loss, and robust performance.
- Long-Distance PoE Compatibility: Fully optimized for Power over Ethernet (PoE), making it the ideal choice for running IP security cameras, VoIP phones, and wireless access points over extended links.
- Durable Flame-Retardant Sheath: Features a custom orange PVC outer jacket meeting CPR Eca flame-retardant standards for enhanced safety and physical resilience.
- High-Bandwidth Support: Built for stable 1-250MHz transmission frequencies with low attenuation and tight cross-talk management, perfectly supporting Gigabit Ethernet systems.
Technical Specifications
| Model | Dahua DH-PFM920I-6UN-C |
| Cable Type | UTP CAT6 |
| Conductor Material | High-Purity Oxygen-Free Copper (99.99% Purity) |
| Conductor Structure | 4 Pairs × 0.53 mm ± 0.01 mm |
| Insulation Material | High-Density Polyethylene (HDPE) |
| Jacket Material & Rating | PVC, CPR Eca Flame Retardant Class |
| Outer Jacket Color | Orange |
| Outer Diameter | 6.0 mm ± 0.50 mm |
| Cable Length | 305 meters (1000 ft) per carton |
| Characteristic Impedance | 100 ± 15 Ω (1–250 MHz) |
| Max. DC Resistance | ≤ 9.38 Ω / 100 m |
| Operating Temperature | -20°C to +60°C (-4°F to 140°F) |
