Description

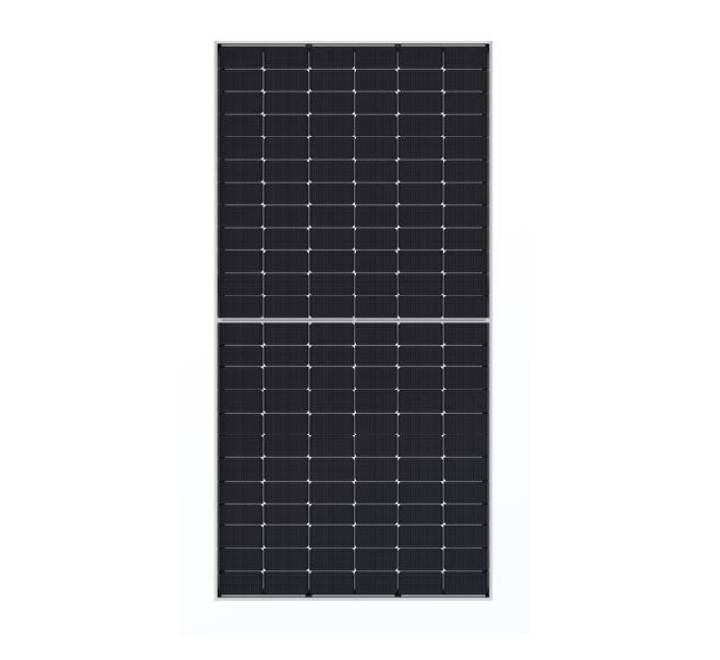

Blue Carbon Solar Panel 630Watt (Mono Crystalline)
High-Performance Renewable Energy for Home & Business
Empower your energy independence with the Blue Carbon 630Watt Monocrystalline Solar Panel. Engineered using advanced N-Mono crystalline solar cells, this ultra-high-capacity photovoltaic module offers top-tier conversion efficiency, making it the perfect solution for residential off-grid systems, commercial configurations, and remote power plants. With a robust build optimized for harsh environmental conditions, it guarantees stable, zero-emission electricity generation for years to come.
Key Features
- Maximum Solar Efficiency: Powered by premium N-Mono-182*105mm solar cells arranged in a high-density 6*11*2 grid configuration to maximize sunlight absorption.
- Heavy-Duty Weatherproof Build: Crafted with 2.0mm tempered front and back glass, enclosed in a premium anodized aluminum alloy frame to withstand brutal environments.
- IP68 Waterproof Integration: Outfitted with an IP68 junction box containing 3 bypass diodes alongside durable MC4 compatible connectors to prevent energy degradation from moisture.
- Extreme Load Resilience: Certified to comfortably handle high snow loads of up to 5400Pa and high wind pressures of up to 2400Pa.
- Long-Term Manufacturer Warranty: Backed by a comprehensive 12-year manufacturer warranty ensuring consistent, worry-free energy delivery.
Technical Specifications
| Specification Parameter | Details / Measurements |
|---|---|
| Power Output | 630 Watts |
| Solar Cell Type | N-Mono-182*105mm Crystalline |
| Cell Arrangement | Type-6*11*2 |
| Module Dimensions | 2382(±2) * 1134(±2) * 30mm |
| Module Weight | 27.7 kg (±3%) |
| Glass Construction | Dual-glass (2.0mm Front & 2.0mm Back tempered glass) |
| Frame Material | Anodized aluminium alloy |
| Junction Box | IP68 Rating, 3 bypass diodes |
| Cabling & Connectors | 4.0mm² photovoltaic cables / MC4 compatible (IP68) |
| Max Load Capacity | Snow: 5400Pa / Wind: 2400Pa |
| Safety / Fire Rates | Class II (IEC Safety Rate) / Class C (TUV Fire Rate) |
| Warranty Period | 12 Years Warranty |
