Description

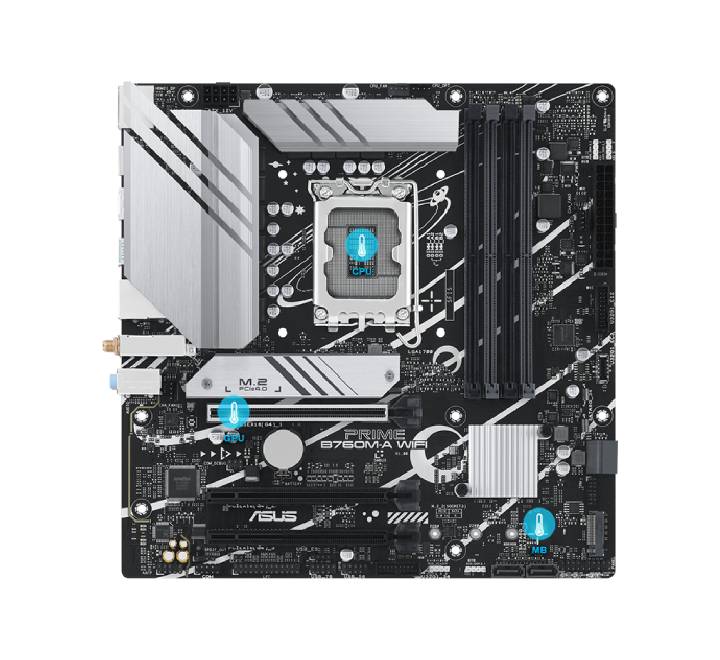

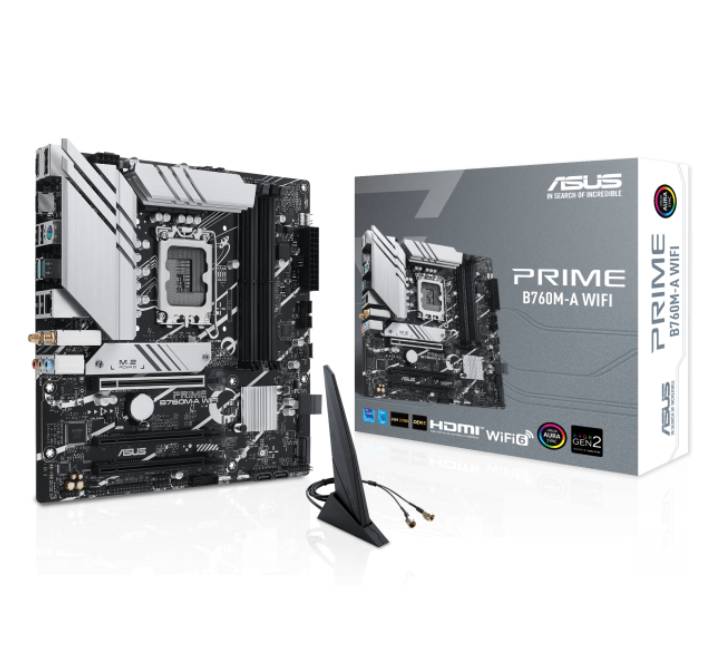

ASUS PRIME B760M-A WIFI Motherboard
- Brand: ASUS
- Model: ASUS PRIME B760M-A WIFI
- Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors. 4 x DIMM slots, Max. 192GB,
- DDR5 7200+(OC)/7000(OC)/6800(OC)/5600/ 5400/5200/5000/4800MHz Non-ECC, Un-buffered Memory. 1 x PCIe 4.0 x16 slot. 1 x PCIe 4.0 x16 slot (supports x4 mode) , 1x PCIe 4.0 x16 slot (supports x1 mode). 2 x M.2 slots and 4x SATA 6Gb/s ports*( SATA RAID 0/1/5/10). 2 x USB 3.2 Gen 2 ports (2 x Type-A ). 4 x USB 2.0 ports (4 x Type- A). 1 x DisplayPort, 2 x HDMI ports. 1 x Wi-Fi Module Wi-Fi 6 (2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Bluetooth v5.2 . 1 x Realtek 2.5Gb Ethernet port. 3 x Audio jacks. 1 x PS/2 Keyboard/Mouse combo port. Windows® 11, Windows® 10 64-bit. mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
- Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
- Intel® LGA 1700 Socket: Ready for 14th, 13th and 12th Gen Intel® processors
- Ultrafast Connectivity: PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet, Wi-Fi 6, rear
- USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C®
- Comprehensive Cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
- Exclusive Memory Technology: ASUS Enhanced Memory Profile II and ASUS OptiMem II
- Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
-
Warranty : 3 Years
