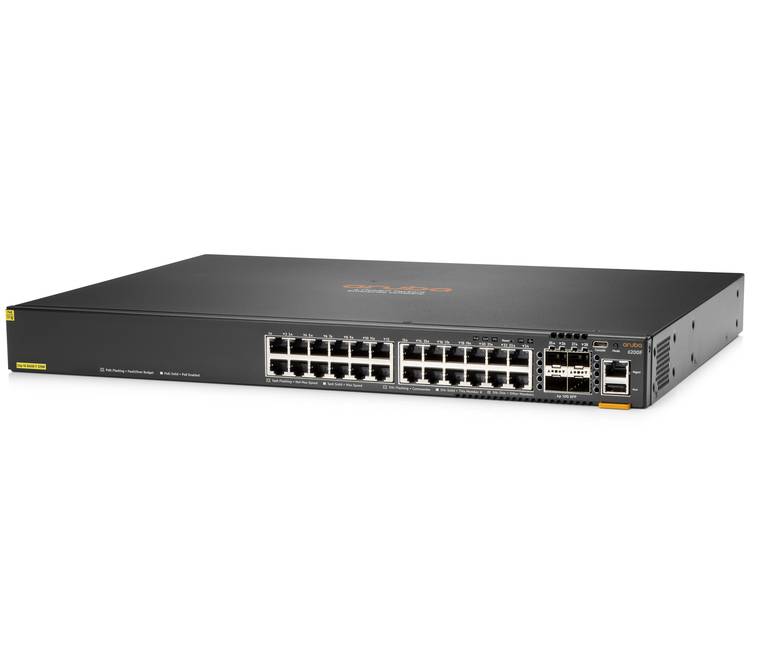

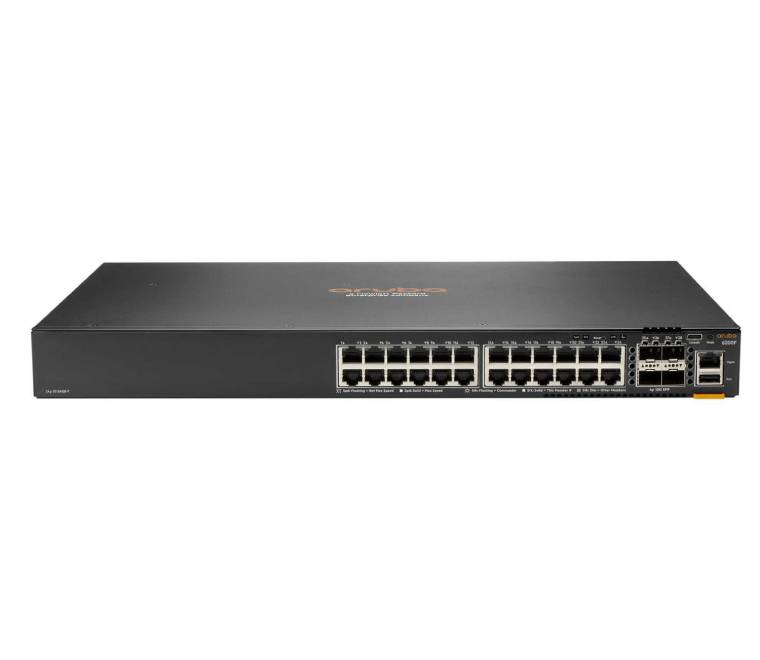

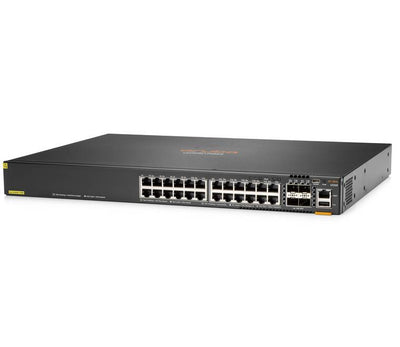

The HPE Aruba Networking CX 6200F 24G Class4 PoE 4SFP+ 370W Switch (JL725A) is a next-generation, stackable Layer 3 access switch engineered to deliver enterprise-class connectivity, high-density power, and advanced automation. Optimized for enterprise branch offices, campuses, and growing SMB networks, this smart managed switch is powered by the cutting-edge AOS-CX operating system to simplify deployments, mitigate human error, and provide real-time network visibility.
Featuring 24 Gigabit Ethernet ports with IEEE 802.3at Class 4 PoE+ support and 4 built-in high-speed 1/10GbE SFP+ uplink ports, the JL725A effortlessly manages high-bandwidth demands while supplying up to 370W of total Power over Ethernet budget to high-performance IoT infrastructure, security cameras, and Wi-Fi access points.
Key Features & Benefits
- Enterprise-Class Layer 3 Performance: Supports static routing, RIPv2, RIPng, OSPFv2, OSPFv3, VRRP, and ACLs to seamlessly handle advanced routing and edge switching capabilities.
- 370W Class 4 PoE+ Budget: Safely delivers up to 30W of power per port across 24 RJ-45 ports, conforming to standard IEEE 802.3af and 802.3at protocols.
- High-Speed 10G Uplinks: 4 built-in dedicated SFP+ ports supporting 1GbE/10GbE speeds eliminate uplink bottlenecks without sacrificing access ports.
- Aruba Network Analytics Engine (NAE): Built-in analytics tools monitor telemetry data instantly to automatically flag, interrogate, and diagnose configuration anomalies before they affect network health.
- Dynamic Segmentation: Automates security by automatically establishing and enforcing structured, application-aware policies across your entire wired and wireless networks.
-
Scalable Stacking Resilience: Utilize Aruba Virtual Stacking Framework (VSF) to easily scale and maintain up to 8 switches under a unified single management interface.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer Part Number | JL725A (HPE Aruba CX 6200F Series) |
| Ports Configuration | 24x 10/100/1000BASE-T RJ-45 Class 4 PoE Ports + 4x 1/10G SFP+ Uplink Ports |
| PoE Power Budget | 370 Watts (Supports IEEE 802.3af / 802.3at standards) |
| Switching Capacity | 128 Gbps |
| Throughput Capacity | Up to 95.2 Mpps |
| Latency Rates | 1 Gbps: 2.28 µs | 10 Gbps: 1.46 µs |
| Internal Hardware | Quad-core ARM Cortex™ A72 @ 1.8 GHz, 8 GB DDR4 RAM, 16 GB eMMC Flash |
| Stacking Architecture | Aruba Virtual Stacking Framework (VSF) up to 8 members |
| Management Software | Aruba Central, Aruba NetEdit, intuitive Web GUI, CLI, and CX Mobile App |
| Physical Form Factor | Standard 1U Rackmount Dimensions: 4.39 x 44.2 x 32.7 cm (1.73" x 17.4" x 12.9") |
| Unit Weight | 4.90 kg (10.80 lbs) |
