Pre-Order Date: lead time 4 ~ 9 months
APC NetShelter Basic Rack PDU AP7553 Zero-U 32A 230V (20) C13 & (4) C19 Outlets
Deliver reliable, dependable power distribution to your high-density server racks and network enclosures with the APC NetShelter Basic Rack PDU AP7553. Designed to optimize space inside data centers and IT closets, this Zero-U vertical PDU leaves valuable rack U-space open for IT equipment while offering 24 total outlets powered by an IEC 309 32A inlet.
Key Features
- Zero-U Vertical Mounting: Mounts vertically in the rear of the rack without consuming valuable equipment U-space, improving airflow and organization.
- High-Density Outlets: Equipped with 20× IEC 320 C13 and 4× IEC 320 C19 outlets to accommodate diverse server and switch power requirements.
- Reliable Power Distribution: Powered by an IEC 309 32A inlet, designed to safely distribute high-amperage single-phase power across demanding IT assets.
- Rugged Aluminum Architecture: Built with a durable, commercial-grade chassis engineered for continuous, mission-critical data center environments.

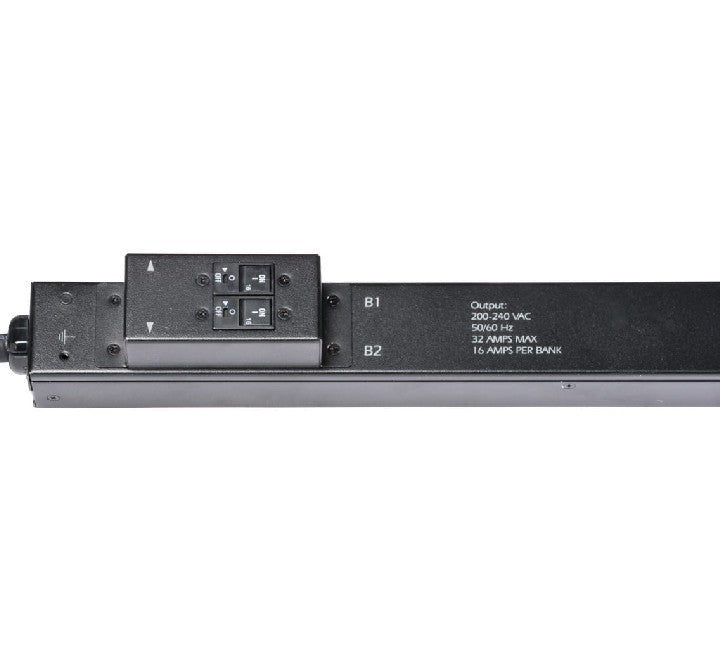

- Toolless Installation: Features quick-release mounting pegs for fast, secure toolless installation into compatible NetShelter and standard server racks.
- Rack PDU, Basic, Zero U, 32A, 230V, (20)C13 & (4)C19
Technical Specifications
| Specification Category | Details |
|---|---|
| Input Voltage / Current | 230V, 32A Single Phase, 50/60 Hz |

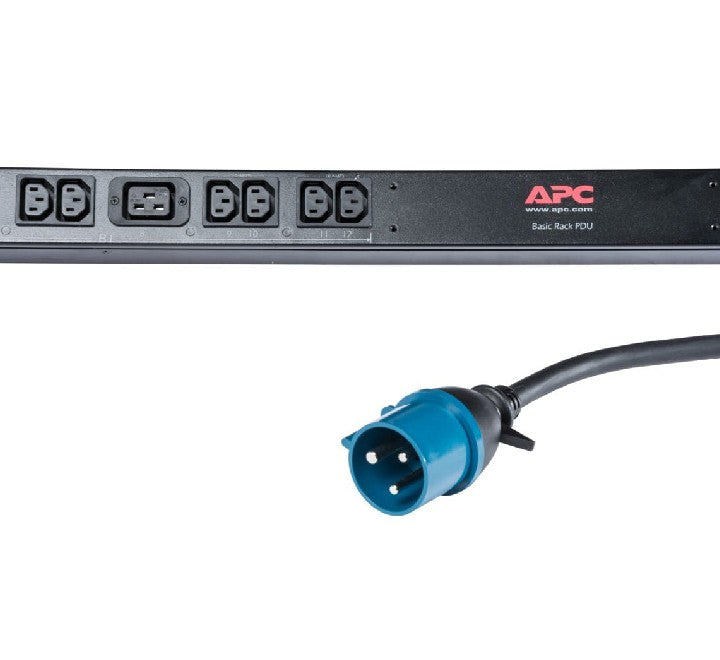

| Input Connection | IEC 309 32A 2P+E (Blue) |
| Output Receptacles | (20) IEC 320 C13, (4) IEC 320 C19 |
| Maximum Total Load | 7.4 kW |
| Mounting Style | Zero-U Vertical Rack-Mount (Toolless mounting capability) |
| Dimensions (H x W x D) | 63.9 x 2.2 x 1.7 in. (1623 x 56 x 44 mm) |
