Description

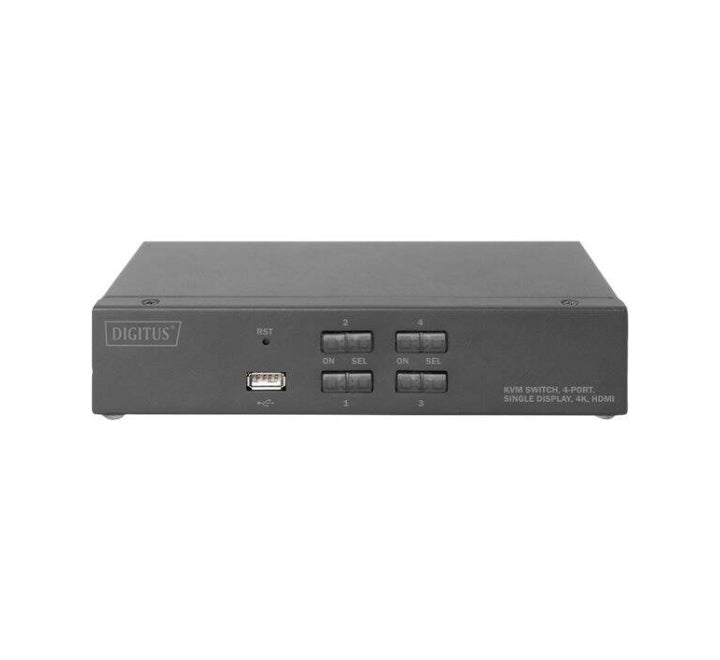

- Model: DS-12880
- No. of switchable PCs: 4
- Video via: HDMI
- Video resolution: 3840 x 2160 Pixel
- Controller: Remote control, Keyboard
- No. of USB 2.0 ports: 1 x
- Switch function: Remote control, Hot key, Key, Manual
- Distributor/switch features: Ultra HD compatibility, individually connectable, + remote control, + LED indicator lights
- Power supply (LOV): mains-powered, via mains adapter
- Factory colour: Black
- Weight: 780 g
- Length:11 cm
- Width: 20.2 cm
- Height: 4.4 cm
- Dim: (L x W x H) 11 x 20.2 x 4.4 cm
- Product type: KVM changeover switch
- UHD resolution: 4K / 30 Hz (3840 x 2160p) / Subsampling: YUV 4:4:4
- Inputs: 4 x HDMI® inputs (4x1), 4 x USB B, 4 x audio combination sockets 3.5 mm jack (microphone, loudspeaker)
- Outputs (console): 1 x HDMI®, 2 x USB A (mouse, keyboard), 2 x stereo audio 3.5 mm jack (microphone, speaker)
- Additional connection on the front side: 1 x USB A for other peripheral devices, such as printers or USB sticks
- HDMI version: 1.4b
- USB specification: USB 2.0 compliant (FullSpeed)
- Supported audio formats: Dolby True HD, DTS HD master audio
- Switching between the PCs: Switch on the front or hot keys
- Operating temperature: 0 °C ~ 50 °C
- Storage temperature -20°C ~ 60°C.
- Operating humidity: 0 - 80% RH (non-condensing)
- Material casing: Metal
- Power supply: Via USB or optional 9 V DC power supply
