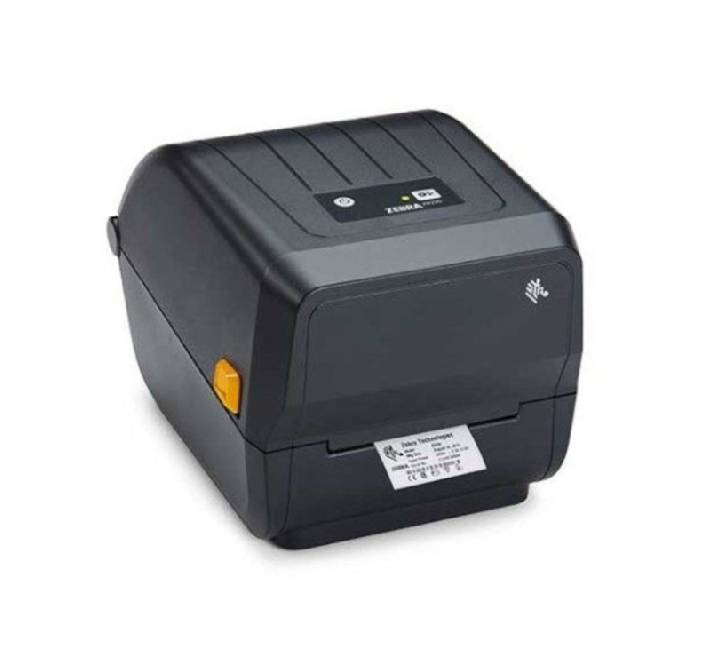

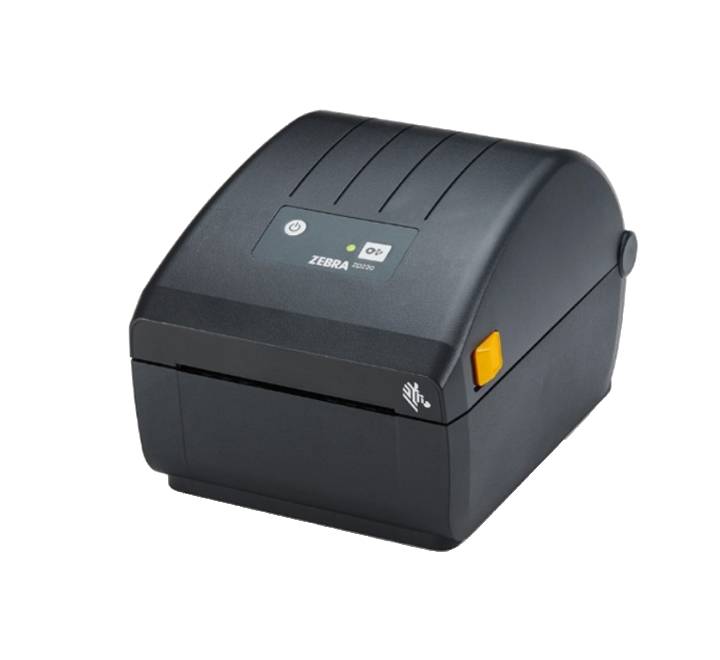

Zebra ZD220 Thermal Transfer Printer (PP0450015)

Zebra ZD220 Thermal Transfer Printer (PP0450015)

• Brand: Zebra

• Model: ZD220

• Printing Method : Direct Thermal /Thermal Transfer
• Printing Resolution : 230 dpi (8 dots / mm)
• Printing Speed : Maximum 4 ips (102mm/sec)
• Max Print Width : 4.1" (104mm)
• Connectivity: USB 2.0
• Standard Features

• Thermal Transfer or Direct Thermal print method

• ZPL and EPL programming languages

• Single LED status indicator

• Single button for feed/pause

• USB connectivity

• OpenACCESS™ for easy media loading

• Dual-wall frame construction

• ENERGY STAR qualified
• Dimension Thermal Transfer: 10.5 in. L x 7.75 in. W x 7.5 in. H

• 267 mm L x 197 mm W x 191 mm H

• Direct Thermal: 8.6 in. L x 6.9 in. W x 5.9 in. H

• 220 mm L x 176 mm W x 151 mm H

• Weight: 2.5 lbs./1.1 kg

• Printer Specifications

• Resolution* : 203 dpi/8 dots per mm

• Memory : 256 MB Flash; 128 MB SDRAM

• Maximum Print Width: 4.09 in./104 mm

• Maximum Print Speed: 4 in./102 mm per second

• Media Sensors • Movable black mark sensor, limited range from
  center to left side
  • Fixed off-center gap sensor

• Firmware ZPL II; EPL 2; XM

• Media and Ribbon Characteristics

• Maximum Label Length: 39.0 in./991 mm

• Media Width: 1.00 in. / 25.4 mm to 4.4 in. / 112 mm

• Media Roll Size : 5.00 in./127 mm outer diameter Core inner
  diameter: 0.5 in. (12.7 mm) and 1.0 in. (25.4 mm) standard, 1.5 in. (38.1), 2.0 in., (50.8 mm) and 3.0 in.
  (76.2 mm) using optional adapters

• Thickness: 0.003 in. (0.08 mm) min.; 0.0075 in. (.1905 mm)
  max. (tear-off mode only)

• Media Types : Roll-fed or fan-fold, die cut or continuous with or
  without black mark, tag stock, continuous receipt
  paper, and wristbands

• Ribbon Outside Diameter: 1.34 in./ 34 mm (74 m)

• Maximum Ribbon Length: 244 ft. (74 m)

• Ribbon Ratio: 1:1 media to ribbon (74 m)

• Ribbon Width: 1.33 in./ 33.8 mm ~ 4.3 in./ 109.2 mm

• Ribbon Core I.D. 74 Meter ribbon 0.5 in./ 12.7 mm
• Operating Temp. 40° to 105° F/4.4° to 41° C
• Storage Temp. -40° to 140° F/-40° to 60° C

• Operating Humidity 10% to 90% non-condensing

• Storage Humidity 5% to 95% non-condensing

• Electrical Auto-detectable (PFC Compliant) 100-240VAC,

• 50-60Hz; ENERGY STAR qualified

• Operations and Accessories

• Media Handling Factory installed peeler

• Real Time Clock None

• Fonts/Graphics/Symbologies

• Bar Code Ratios 2:1 and 3:1
• Warranty : No
