Description

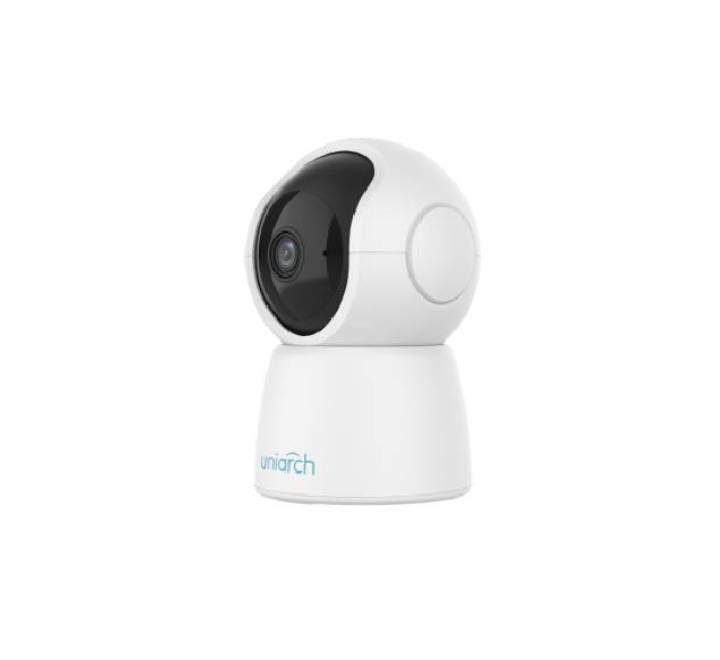

UNV Uniarch Uho-S2E-M4 4MP Wi-Fi Indoor PT Camera
- Model: Uho-S2E-M4
- Features
- High quality image with 4MP, 1/3"CMOS sensor
- 4MP (2560*1440)@25/20fps; 3MP (2304*1296)@30/25fps; 2MP
- (1920*1080)@30/25fps
- Ultra 265, H.265, H.264
- Built-in Mic & Speaker, support two-way audio, offer better interaction
- IR night vision, up to 10m (33ft) IR distance
- Support 256 G Micro SD card
- Wi-Fi connection and easy installation
- Sensor: 1/3", 4.0 megapixel, progressive scan, CMOS
- Minimum Illumination: Colour: 0.01 lux (F2.0, AGC ON)
- : 0 lux with IR on
- Day/Night : IR-cut filter with auto switch (ICR)
- Shutter: Auto/Manual, 1/4 ~ 1/100000s
- WDR: DWDR
- S/N : >52dB
-
Lens
- Lens Type :4.0mm @F2.0
- Iris Fixed
- Angle of View (H) : 79.0°
- Angle of View (V) : 42.3°
- Angle of View (O): 85.1°
- Illuminator
- IR Range : Up to 10m (33ft)
- Wavelength : 850nm
- IR On/Off Control: Auto/Manual
-
Video
- Video Compression : Ultra 265, H.265, H.264
- Frame Rate
- Main Stream: 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 2MP
- (1920*1080), Max 30fps; 720P (1280*720), Max 30fps;
- Sub Stream: 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max
- 30fps;;
- Video Bit Rate : 128 Kbps~6144 Kbps
- ROI : Up to 8 areas
- Video Stream: Dual streams
- OSD : Up to 2 OSDs
- Privacy Mask : Up to 4 areas
-
- White Balance : Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
- Digital Noise Reduction: 2D/3D DNR
- Smart IR: Support
- Flip : Normal/Flip Vertical/Flip Horizontal/180°
- HLC : N/A
- BLC : N/A
- Defog Digital Defog
-
Events
- Basic Detection Human body detection, Motion detection, Audio Detection
- Auto tracking Support
- General Function IP address filtering, Access policy, ARP protection, RTSP
- authentication, User authentication, HTTP authentication
-
Audio
- Audio Compression : G.711U,G.711A
- Audio Bitrate : 64 Kbps
- Two-way Audio: Support
- Suppression: Support
- Sampling Rate: 8 kHz
-
Storage
- Edge Storage: Micro SD, up to 256GB
- Network Storage: ANR
- Network
- Wi-Fi: 2.4G Wi-Fi (IEEE802.11b/g/n), built-in antenna
- Protocols: IPv4, TCP, UDP, DHCP, RTSP, DNS, DDNS, NTP, HTTP
- Compatible Integration: API
-
Client
- Uniarch Client
- Uniarch APP
- Web Browser
- Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and
- above, Edge 79 and above
- Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and
- above
-
Pan & Tilt
- Pan Range : 0° ~ 340°
- Pan Speed: 17°/s ~ 50°/s
- Preset speed: 50°/s
- Tilt Range -5° ~ 55°
- Tilt Speed: 17°/s ~ 50°/s
- Preset speed: 50°/s
- Number of Presets: 20
- Home Position : Support
-
Interface
- Built-in Mic : Support
- Built-in Speaker: Support
- WIFI: Support
- Network: 1 * RJ45 10M/100M Base-TX Ethernet
- General Power: DC 5V/1.5A
- : Micro USB interface
Dimensions: (Ø x H) Φ80 x 120mm (Ø3.1” x 4.8”)
- Weight: 0.18kg(0.40lb)
- Working Environment : -10℃~50℃(-14°F ~ 122°F)，Humidity: ≤95% RH (non-
- condensing)
- Storage Environment : -10℃~50℃(-14°F ~ 122°F)，Humidity: ≤95% RH (non-
- condensing)
- Surge Protection: N/A
- Reset Button : Support
- LED indicator : 1, red/blue
- Warranty: 2 Year
