Description

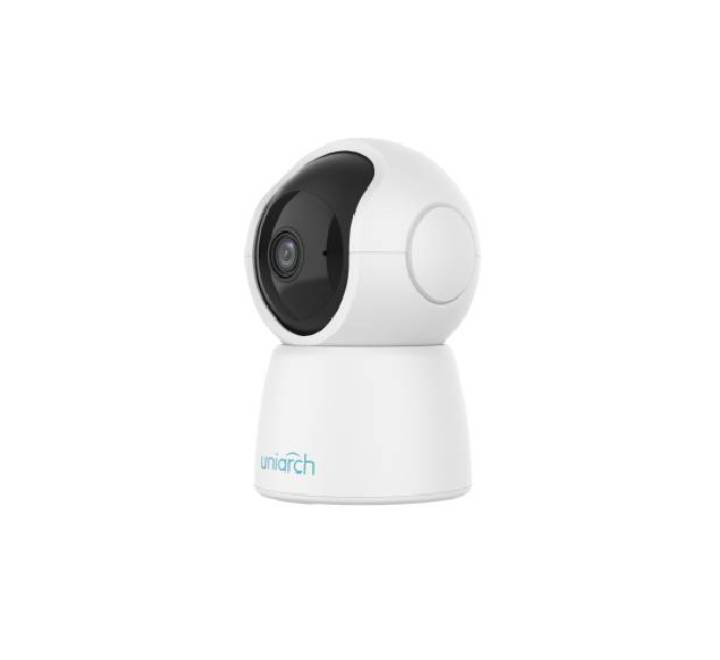

UNV Uniarch Uho-S2E-M3 3MP Wi-Fi Indoor PT Camera
- Model : Uho-S2E-M3
-
Features
- High quality image with 3MP, 1/3"CMOS sensor
- 3MP (2304*1296)@25/20fps; 2MP (1920*1080)@30/25fps; 720P (1280*720)
- @30/25/fps
- Ultra 265, H.265, H.264
- Built-in Mic & Speaker, support two-way audio, offer better interaction
- IR night vision, up to 10m (33ft) IR distance
- Support 256 G Micro SD card
- Wi-Fi connection and easy installation
- Sensor : 1/3", 3.0 megapixel, progressive scan, CMOS
- Minimum Illumination: Colour: 0.02 lux (F2.0, AGC ON)
: 0 lux with IR on
- Day/Night : IR-cut filter with auto switch (ICR)
- Shutter : Auto/Manual, 1/4 ~ 1/100000s
- WDR : DWDR
- S/N : >52dB
- Lens
- Lens Type : 4.0mm @F2.0
- Iris Fixed
- Angle of View (H): 78.2°
- Angle of View (V) : 41.8°
- Angle of View (O) : 84.4°
- Illuminator
- IR Range : Up to 10m (33ft)
- Wavelength: 850nm
- IR On/Off Control: Auto/Manual
- Video
- Video Compression: Ultra 265, H.265, H.264
- Frame Rate
- Main Stream: 3MP (2304*1296), Max 25fps; 2MP (1920*1080), Max 30fps; 720P
- (1280*720), Max 30fps;
- Sub Stream: 640*360,Max 25fps; 2CIF(704*288), Max 25fps; CIF(352*288), Max
- 25fps;;
- Video Bit Rate : 128 Kbps~6144 Kbps
- ROI : Up to 8 areas
- Video Stream: Dual streams
- OSD: Up to 2 OSDs
- Privacy Mask : Up to 4 areas
- Image
- White Balance : Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
- Digital Noise Reduction: 2D/3D DNR
- Smart IR: Support
- Flip : Normal/Flip Vertical/Flip Horizontal/180°
- HLC : N/A
- BLC : N/A
- Defog: Digital Defog
- Events
- Basic Detection: Human body detection, Motion detection, Audio Detection
- Auto tracking : Support
- General Function: IP address filtering, Access policy, ARP protection, RTSP
- authentication, User authentication, HTTP authentication
- Audio
- Audio Compression :G.711U,G.711A
- Audio Bitrate : 64 Kbps
- Two-way Audio: Support
- Suppression : Support
- Sampling Rate : 8 kHz
- Storage
- Edge Storage: Micro SD, up to 256GB
- Network Storage : ANR
- Network
- Wi-Fi : 2.4G Wi-Fi (IEEE802.11b/g/n), built-in antenna
- Protocols : IPv4, TCP, UDP, DHCP, RTSP, DNS, DDNS, NTP, HTTP
- Compatible Integration: API
Client: Uniarch Client
- : Uniarch APP
- Web Browser
- Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and
- above, Edge 79 and above
- Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and
- above
- Pan & Tilt
- Pan Range : 0° ~ 340°
- Pan Speed: 17°/s ~ 50°/s
- Preset speed: 50°/s
- Tilt Range -5° ~ 55°
- Tilt Speed: 17°/s ~ 50°/s
- Preset speed: 50°/s
- Number of Presets: 20
- Home Position: Support
- Interface
- Built-in Mic: Support
- Built-in Speaker: Support
- WIFI : Support
- Network : N/A
- General
- Power: DC 5V/1.5A
- : Micro USB interface
- Dimensions: (Ø x H) Φ80 x 120mm (Ø3.1” x 4.8”)
- Weight : 0.18kg(0.40lb)
- Working Environment: -10℃~55℃(-14°F ~ 131°F)，Humidity: ≤95% RH (non-
- condensing)
- Storage Environment: -10℃~55℃(-14°F ~ 131°F)，Humidity: ≤95% RH (non-
- condensing)
- Surge Protection: N/A
- Reset Button : Support
- Warranty: 2 Years
