Description

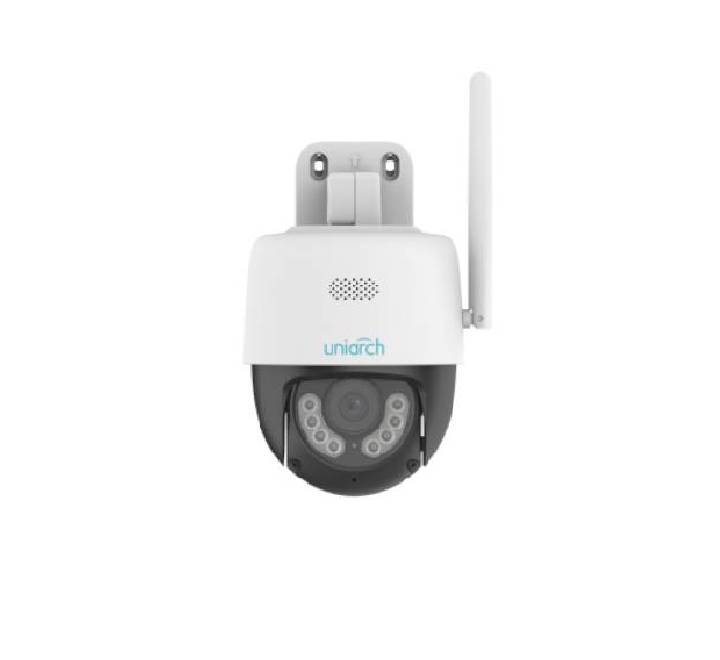

UNV Uniarch Uho-P1A-M3F4D 3MP Wi-Fi Dual-light Outdoor PT Camera
- Features
- High quality image with 3MP, 1/2.8"CMOS sensor
- 2304*1296@20fps in the main stream
- Ultra 265, H.265, H.264
- Support digital WDR (Wide Dynamic Range)
- Built-in Mic & Speaker, support two-way audio, offer better interaction
- Support sound and light warning, makes warning and alarming more noticeable
- Smart IR, up to 30 m (98 ft) IR and 10m (33 ft) warm light distance, suitable for more
- scenes
- Self-contained bracket, support two kinds of mounting
- Supports 512 GB Micro SD card
- Wi-Fi connection and easy installation
- IP66 ingress protection
- The front face is made of grapheme, which has better heat dissipation and more
- environmental protection
- Specifications
- Model Uho-P1A-M3F4D
- Max Resolution : 3 MP
- Sensor: 1/2.8" CMOS
- Min. Illumination:
- Colour: 0.005Lux (F1.6, AGC ON)
- 0 Lux with IR on
- Day/Night: IR-cut filter with auto switch (ICR)
- Shutter: Auto/Manual, 1 ~ 1/100000s
- S/N : >52 dB
- WDR : DWDR
- Lens
- Digital Zoom : 4X
- Focal Length: 4.0 mm
- Iris Type : Fixed
- Iris : F1.6
- Field of View (H) : 90.5°
- Field of View (V) : 44.4°
- Field of View (D) : 111.3°
- DORI
- DORI Distance (Lens) : 4.0mm
- DORI Distance (Detect) : 73.5 (241.0ft)
- DORI Distance (Observe) : 29.4 (96.4ft)
- DORI Distance (Recognize): 14.7 (48.2ft)
- DORI Distance (Identify): 7.3 (24.1ft)
- Illuminator
- Supplemental Light : Dual light
- Illumination Distance (IR): Up to 30m (98ft)
- Illumination Distance (Warm Light): Up to 10m (33ft)
- Wavelength : 850 nm
- IR On/Off Control: Auto/Manual
- Video
- Video Compression: Ultra 265, H.265, H.264
- Frame Rate
- Main Stream: 3MP (2304*1296), Max 20fps;
- Sub Stream: 640*360, Max 20fps;
- Video Bit Rate : 128 Kbps to 2048 Kbps
- U-code : Support
- OSD : Up to 2 OSDs
- Privacy Mask : Support (only NVR)
- ROI : Up to 8 areas
- Video Stream : Dual Streams
- Image
- White Balance: Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2
- Digital Noise Reduction : 2D/3D DNR
- Smart IR: Support
- Flip : Normal, Flip Vertical, Flip Horizontal, 180°
- Dewarping: N/A
- HLC : N/A
- BLC : N/A
- Defog : Digital Defog
- Events
- Basic Detection : Human Body Detection, Motion Detection, Audio Detection
- General Function: IP Address Filtering, Access Policy, ARP Protection, RTSP
- Authentication, User Authentication,
- HTTP Authentication
- Intelligent
- Auto Tracking : Support
- Audio
- Audio Compression : G.711U, G.711A
- Audio Bitrate : 64 Kbps
- Two-way Audio: Support
- Suppression : Support
- Sampling Rate : 8 kHz
- Storage
- Edge Storage : Micro SD, up to 512 GB
- Network Storage : ANR
- Network
- Wi-Fi : 2.4G Wi-Fi (IEEE802.11b/g/n), built-in antenna
- Protocols : IPv4, TCP, UDP, DHCP, RTSP, DNS, DDNS, NTP, HTTP
- Compatible Integration : API
- Client : Uniarch Client, Uniarch app
- Web Browser : Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge
- 79+
- Wi-Fi
- Wireless Standards: IEEE802.11b/g/n
- Frequency Range : 2.4 GHz to 2.4835 GHz
- Channel Bandwidth 20 MHz: Support
- Modulation Mode:
- 802.11b: CCK, QPSK, BPSK
- 802.11g/n: OFDM/HT
- Wi-Fi Security : 64/128-bit WEP, WPA-PSK/WPA2-PSK
- Transmit Power: 802.11b: 17±1.5 dBm@11 Mbps802.11g: 14±1.5 dBm@54
- Mbps802.11n: 12.5±1.5 dBm@150
- Mbps
- Receive Sensitivity: 802.11b: -90 dBm@11 Mbps (Typical)802.11g: -75 dBm@54
- Mbps (Typical)802.11n: -74
- dBm@150 Mbps (Typical)
- Transmission Rate : 802.11b: 11 Mbps802.11g: 54 Mbps802.11n: up to 150 Mbps
- PTZ
- Pan Range : 0° ~ 345°
- Pan Speed: 1°/s ~ 40°/s
- Preset speed: 40°/s
- Tilt Range : 0° ~ 90°
- Tilt Speed: 1°/s ~ 30°/s
- Preset speed: 30°/s
- Number of Presets: 20
- Interface
- Audio I/O : N/A
- Alarm I/O : N/A
- Built-in Mic : Support
- Built-in Speaker: Support
WIFI : Support
- Network: 1 × RJ45 10 M/100 M Base-TX Ethernet
- General
- Power: DC 12V±25%
- Power consumption: Max 10.0W
- Power Interface: Ø5.5 mm coaxial power plug
- Dimensions: Φ118mm*118mm*199mm (Φ4.6”x 4.6”x 7.8”)
- Weight : 0.53kg (1.17lb)
- Working Environment : -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH
- (non-condensing)
- Storage Environment: -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-
- condensing)
- Surge Protection: 4 KV
- Reset Button : Support
- LED Indicator : 1, red/green
- Warranty: 2 Years
