UNV UAC-T112-AF40 2MP Fixed IR Turret Analog Camera

UNV UAC-T112-AF40 2MP Fixed IR Turret Analog Camera

• Model:   UAC-T112-AF40

• Max Resolution:  2 MP

• Sensor Size : 1/3.0" CMOS

• Min. Illumination: 0.02 lux (F2.0, AGC ON)
•                                    : 0 lux (IR ON)

• Lens

• Focus :  4.0 mm

• Lens Mount :  M12

• Angle of View (H):  80.2°

• Angle of View (V) :  40.7°

•  Angle of View (D) : 90.5°

• Illuminator

• Illuminator Number: One IR illuminator

• Illumination Distance:  20m

• Lifetime:   ≥ 60000 hours

• Video

• Resolution

• 1080P: 1920(H)×1080(V)

• 720P: 1280(H) ×720(V)

• Frame Rate

• TVI: 1080P@25fps (default), 1080P@30fps; 720P@25fps, 720P@30fps

• AHD: 1080P@25fps, 1080P@30fps; 720P@25fps, 720P@30fps

• CVI: 1080P@25fps, 1080P@30fps; 720P@25fps, 720P@30fps

• CVBS: PAL, NTSC

• Shutter Time

• PAL: 1/25s-1/50000s，

• NTSC: 1/30s-1/50000s

• Image

• Exposure Mode:     Four modes: Global (default), BLC, HLC, DWDR

• Day/Night :   Three modes: Auto (default), Day, Night

• Digital Noise Reduction: 2D/3D

• White Balance Two modes:  Auto (default), Manual

• WDR :  DWDR

• Smart IR:   Support

• Flip:    Supports 180°horizontal flip, 180°vertical flip

• Digital Defog : N/A

• Audio

• Built-in Mic :  Support

• Camera Audio

• TVI: 1080P@25fps, 1080P@30fps

• CVI: 1080P@25fps, 1080P@30fps

• Interface

• Power Interface:    5.5 mm Power Interface

• Video Output :  BNC, supports TVI/AHD/CVI/CVBS

• Operating Environment

• Temperature:  -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉)

• Humidity:  ≤ 95% RH (non-condensing)

• Surge Protection:   4kV for power&4kV for video output interfaces

• General

• Power DC 12 V ± 25%

• Power:  Consumption: MAX 2.2W

• Mount:   Wall Mount, Pole Mount, Corner Mount, Pendant Mount

• Dimensions:   Φ118mm*96mm (diameter*height)

• Material:  Plastic

• Weight 182g(0.40lb)

• OSD Menu Language: 11 Languages

•  English, German, Spanish (Latin America), French, Italian, Japanese, Korean, Polish,
• Portuguese

• (Brazil), Russian, Turkis
• Protection:
  IP67 (IEC 60529)
• Warranty: 2 Years
• Overview

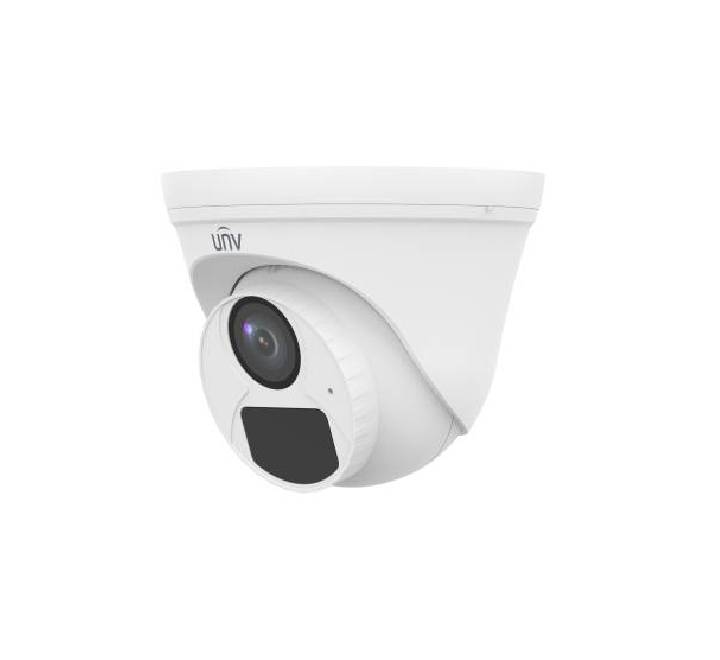

  UAC-T112-AF28(40) is a 2MP fixed IR turret analog camera with a high-performance 1/3-inch CMOS sensor and 3D noise reduction
  technology. It supports TVI/AHD/CVI/CVBS, which effectively enhances product adaptability and diversity of networking solutions. With
  SYV-75-3 or other coaxial cable types, the camera can achieve low-cost, long-distance, and anti-interference mega-pixel HD video
  transmission without time delay. It supports IR-cut filter with auto-switch (ICR) and provides color images at daytime and black/white
  images at night. The camera also supports audio input and synchronous transmission of audio and video.

• Features
• 2MP high quality image

• TVI/AHD/CVI/CVBS

• Supports IR-cut filter with auto-switch (ICR)

• 3D noise reduction technology delivers clean and sharp images
• Supports 180° horizontal flip, 180° vertical flip

• OSD configuration menu, easy to operate

• IP67 waterproof and dustproof design, high reliability

• OSD configuration menu in 11 languages

• Built-in microphone for high quality audio transmission via coaxial cables
