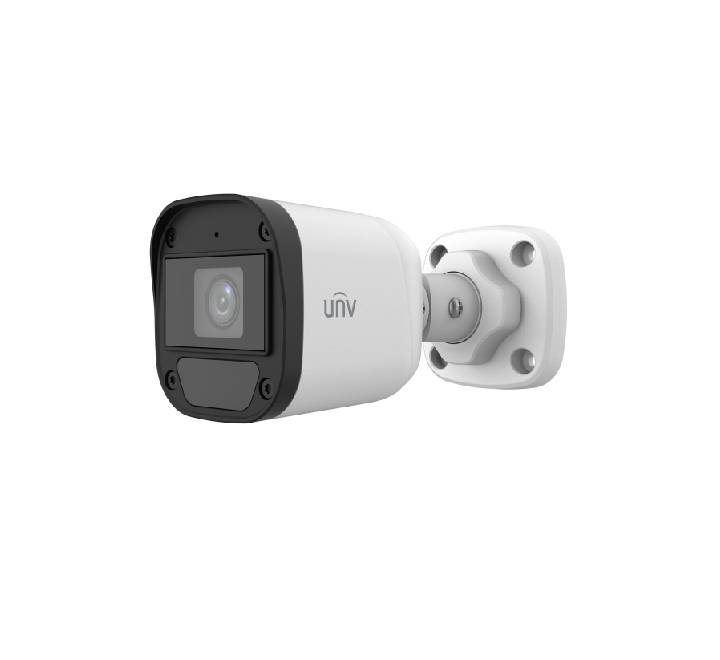

UNV UAC-B112-AF28 2MP Fixed IR Bullet Analog Camera

UNV UAC-B112-AF28 2MP Fixed IR Bullet Analog Camera

• Model UAC-B112-AF28

• Max Resolution : 2 MP

• Sensor Size: 1/3.0" CMOS

• Min. Illumination: 0.02 lux (F2.0, AGC ON)
                                       : 0 lux (IR ON)

• Lens

• Focus : 2.8 mm

• Lens Mount: M12

• Angle of View (H):  90.5°

• Angle of View (V): 49.6°

• Angle of View (D): 109.5°

• Illuminator

• Illuminator Number: One IR illuminator

• Illumination Distance: 20m

• Lifetime:  ≥ 60000 hours

• Video

• Resolution: 1080P: 1920(H)×1080(V)
                        : 720P: 1280(H) ×720(V)

• Frame Rate

• TVI: 1080P@25fps (default), 1080P@30fps; 720P@25fps, 720P@30fps

• AHD: 1080P@25fps, 1080P@30fps; 720P@25fps, 720P@30fps

• CVI: 1080P@25fps, 1080P@30fps; 720P@25fps, 720P@30fps

• CVBS: PAL, NTSC

• Shutter Time PAL: 1/25 s-1/50000 s, NTSC: 1/30 s-1/50000 s

• Image

• Exposure Mode:  Four modes: Global (default), BLC, HLC, DWDR

• Day/Night:  Three modes: Auto (default), Day, Night

• Digital Nois Reduction: 2D/3D

• White Balance:     Two modes: Auto (default), Manual

• WDR:  DWDR

• Smart IR:  Support

• Flip : Supports 180°horizontal flip, 180°vertical flip

• Digital Defog : N/A

• Audio

• Built-in Mic : Support

• Camera Audio

• TVI: 1080P@25fps, 1080P@30fps

• CVI: 1080P@25fps, 1080P@30fps
• Interface

• Power Interface : 5.5 mm Power Interface

• Video Output:  BNC, supports TVI/AHD/CVI/CVBS

• Operating Environment

• Temperature -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉)

• Humidity :  ≤ 95% RH (non-condensing)

• Surge Protection : 4 KV for power|4 KV for video output interfaces

• General

• Power : DC 12 V ± 25%

• PowerConsumption: MAX 2.2W

• Mount :   Corner Mount|Pole Mount Corner
• Dimensions:   142mm*63mm*65mm (L*W*H)

• Material:    Plastic

• Weight:   135g(0.30lb)

• OSD Menu Language:  11 Languages

• English, German, Spanish (Latin America), French, Italian, Japanese, Korean, Polish,
• Portuguese

• (Brazil), Russian, Turkish
• Protection: IP67 (IEC 60529)
• Warranty: 2 Years

  Overview
  UAC-B112-AF28(40) is a 2MP fixed IR bullet analog camera with a high-performance 1/3-inch CMOS sensor and 3D noise reduction
  technology. It supports TVI/AHD/CVI/CVBS, which effectively enhances product adaptability and diversity of networking solutions. With
  SYV-75-3 or other coaxial cable types, the camera can achieve low-cost, long-distance, and anti-interference mega-pixel HD video
  transmission without time delay. It supports IR-cut filter with auto-switch (ICR) and provides color images at daytime and black/white
  images at night. The camera also supports audio input and synchronous transmission of audio and video.

  Features

• 2MP high quality image

• TVI/AHD/CVI/CVBS

• Supports IR-cut filter with auto-switch (ICR)

• 3D noise reduction technology delivers clean and sharp images

• Supports 180° horizontal flip, 180° vertical flip

• OSD configuration menu, easy to operate

• IP67 waterproof and dustproof design, high reliability

• OSD configuration menu in 11 languages

• Built-in microphone for high quality audio transmission via coaxial cables
