Description

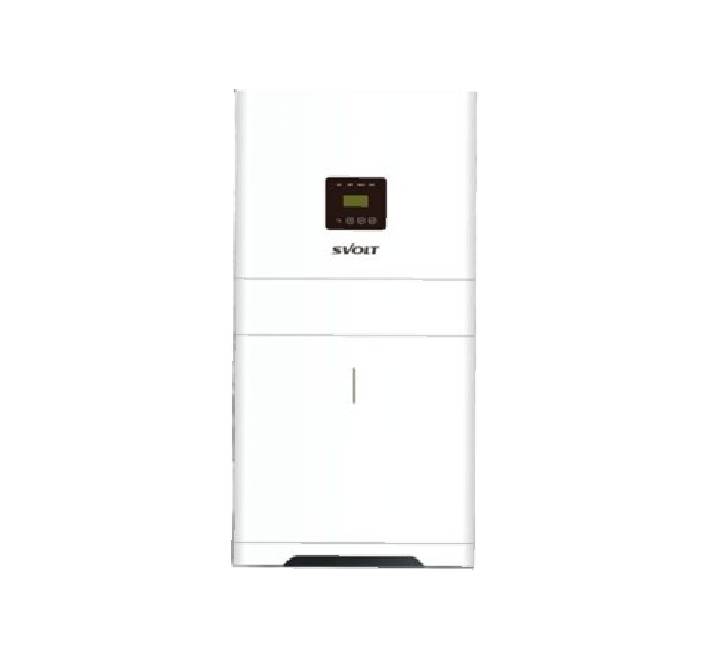

SVOLT 5kW Inverter + 5kWh Battery All in One ESS EU Standard
- Brand: SVOLT
- SVOLT 5kW Inverter + 5kWh Battery All in One ESS EU Grade Standard
- Capacity : 5kW, 51.2V 100Ah 5kWh, IP65, <40dB
- Rated Output Power : 5kW
- Max Peak Power : 10kW
- Rated Output Voltage : 230V
- Max Output Current : 21.7A
- Depth Of Discharge : 90% DOD (4.5kWh)
- Dimensions & Weight : 550x200x1050mm, 79Kg
- Max AC Charging Power : 3.1kW
- Max AC Charging Current : 0~60A
- Fast Charging Time From AC: 1.5 hours
- Solar Charge Type : MPPT
- Max PV Power : 7kW
- Max PV Charging Current : 0~80A
- MPPT Voltage Range : 125~550V
- Max Battery Charging Current : 100A
- Max Discharging Power : 5kW
- Max Discharging Current : 100A
-
Warranty (Inverter) : 3 Years (2+1)
- Warranty (Battery) : 5 Years (3+2) (3000 Cycles)
