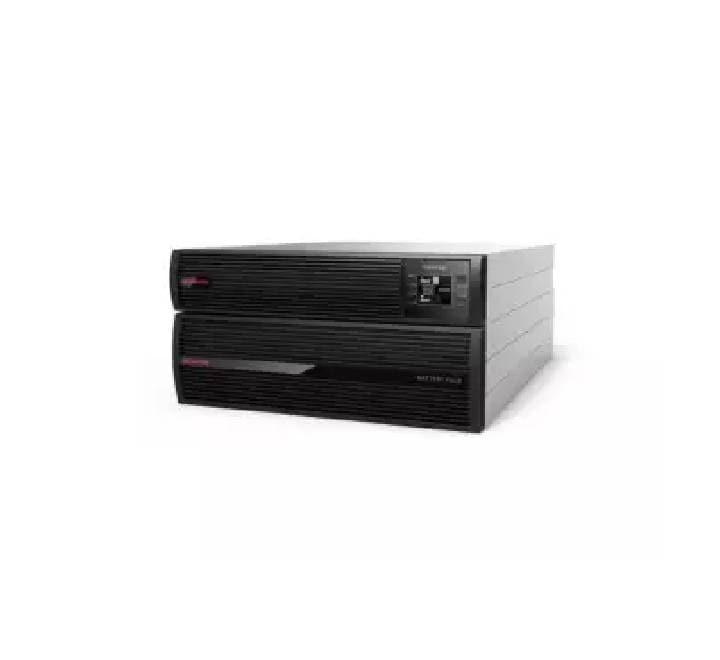

Description
Power rating: 6000VA/6000W
Input voltage range: 110~275VAC
Input frequency range: 40Hz-70Hz
Input connection: Single phase with ground
Input power factor: ≥0.995
Output voltage: 208/220/230/240 VAC
Output voltage tolerance: ±1%
Output connection: Single phase with ground
Output Socket: 2*IEC, 1*Terminal Block
Output frequency range: 50/60Hz±0.1Hz
Output THDV: <1%(linear load), <5%(non-linear load)
Output waveform: Pure sinewave
Battery quantity: 16PCS default, 16/17/18/19/20 adjustable
Recharge time to 90% battery capacity: 3 hours
Backup time: 4min@100% load,11min@50% load
Recharge current (to 90%battery capacity): 1.4A default, 0-4A adjustable
LCD: load rating/battery capacity/input/output/operating mode
Communication port: RS232, USB+EPO, Dry in/Dry out configurable
Extendable communication card: Dry Contact Card, MODBUS Card, NMC Card are optional
Software: Winpower
Product dimension (W*H*D)mm: 438* 86.3* 573mm (UPS)
Product weight (Kg): 14
Operating temperature: 0-40℃
Operating humidity: Operating humidity
- PF 1 without power de-rating in all battery configuration and full operating temperature range
- High efficiency 95% at typical load
- 2U height, <600mm depth for 10KW model
- Long backup time model charger current is upgraded to 12A
- Standard model charger current is upgraded to 4A
- Battery quantity 16/17/18/19/20pcs adjustable
- Digital charger technology provide accurate charger current setting(0.5A per step adjustable) and reduce charger ripple current
- PDU and MBS 2-in-1 kit support easy maintenance
- Parallel supported
