Description

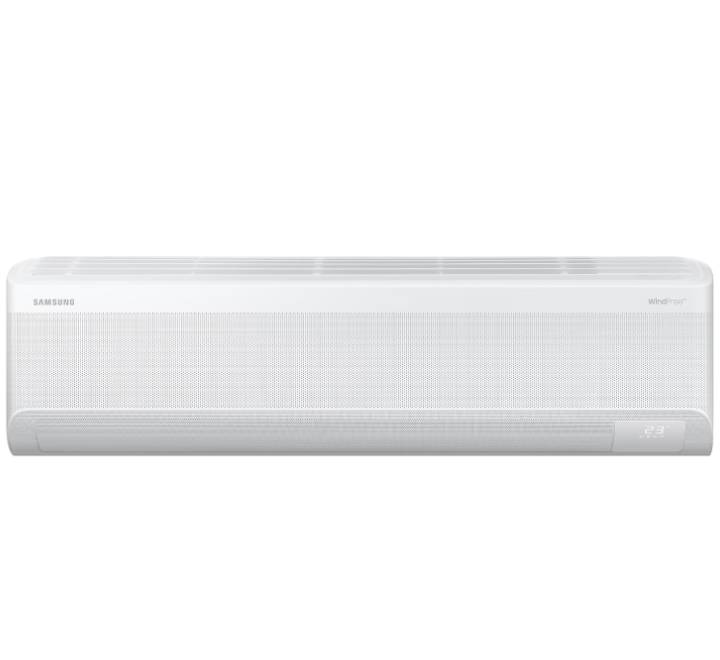

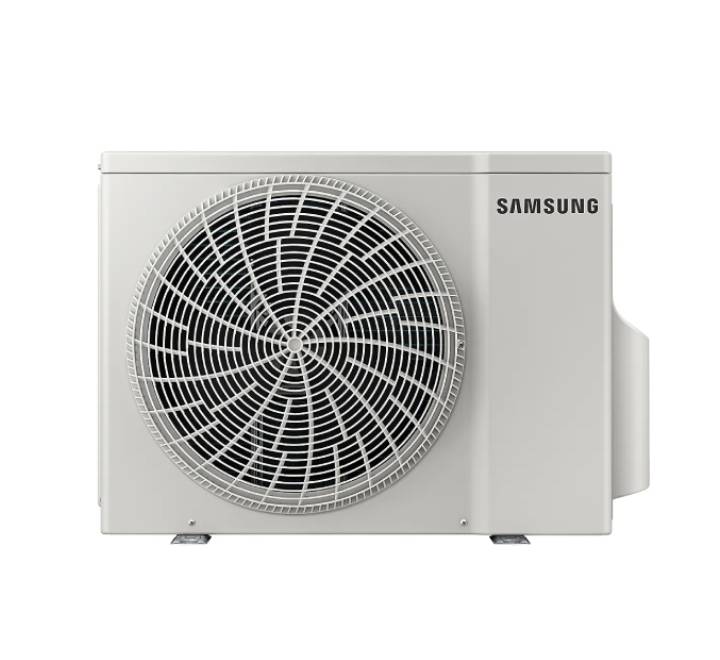

Samsung AR70F24D1CWNST 2.5 HP 24,000BTU/hr AI WindFree™ Copper AirConditioner Wall-mount -Comfort Cooling
- Brand: Samsung
- SKU: AR70F24D1CWNST
- Capacity: 24000 Btu/hr
- Power Consumption(Cooling, W): 1920 W
- Net Dimension (Indoor, WxHxD, ㎜*㎜*㎜): 1055*299*215 mm
-
Capacity
- Capacity (Cooling, Btu/hr): 24000 Btu/hr
- Capacity (Cooling, Min - Max, Btu/hr): 5,450 - 25,000 Btu/hr
- Capacity (Cooling, kW): 6.30 kW
- Capacity (Cooling, Min - Max, kW): 1.60 - 7.33 kW
-
Energy Efficiency
- SEER(Btu/hW): 19.20
- EER (Cooling, W/W): 3.28 W/W
- EER (Cooling, Btu/hW): 11.20 Btu/hW
- Energy Efficiency Class (Grade): 5-1★
-
Noise Level
- Noise Level (Indoor, High/Low, dBA): 45/30 dBA
- Noise Level (Outdoor, High/Low, dBA): 53 dBA
-
Electrical Data
- Power Source(Φ/V/Hz): 1 / 220-240~ / 50
- Power Consumption(Cooling, W): 1920 W
- Operating Current(Cooling, A): 8.4 A
-
Physical specification
- Gross Dimension (Indoor, WxHxD, ㎜*㎜*㎜): 1115*290*375 mm
- Gross Dimension (Outdoor, WxHxD, ㎜*㎜*㎜): 913*622*371 mm
- Net Dimension (Indoor, WxHxD, ㎜*㎜*㎜): 1055*299*215 mm
- Net Dimension (Outdoor, WxHxD, ㎜*㎜*㎜): 790*548*285 mm
- Gross Weight (Indoor, kg): 13.2 kg
- Gross Weight (Outdoor, kg): 31.5 kg
- Net Weight (Indoor, kg): 11.6 kg
- Net Weight (Outdoor, kg): 29.3 kg
- Loading Quantity (20/40/40Hft without Pipe): 80/168/198
-
Technical Information
- Piping Length (Max, m): 30 m
- Piping Height (Max, m): 15 m
- SVC Valve (Liquid (ODxL)): 6.35
- SVC Valve (Gas (ODxL)): 15.88
- Moisture Removal (l/hr): 2.2 l/hr
- Air Circulation (Cooling, ㎥/min): 17.3 ㎥/min
- Refrigerant (Type): R32
- Refrigerant (Charging, kg): 0.81 kg
- Refrigerant (Charging, tCO2e): 0.55 tCO2e
- Low Ambient (Cooling, ℃): 16~46 ℃
- Outdoor Unit (Compressor Type): BLDC
- Outdoor Unit (Anti-Corrosion Fin): Yes
-
Air Flow
- WindFree Cooling: Yes
- Air Direction Control (Up/Down): Auto
- Air Direction Control (Left/Right): Auto
- Air Flow Control Step (Cool/Fan): 5/4
-
Air Purification
- PM 1.0 Filter: No
- 4-in-1 Care Filter: Yes
- Copper Anti-bacterial Filter: Yes
- Auto Clean (Self Cleaning): Yes
-
Convenience
- SmartThings: Yes
- AI Auto Cooling: Yes
- Motion Detect Sensor: No
- Freeze Wash: Yes
- Filter Cleaning Indicatior: Yes
- Indoor Temp. Display: Yes
- Display On/Off: Yes
- Beep On/Off: Yes
- 24-Hour Timer: Yes
- Auto Changeover: No
- Auto Restart: Yes
-
Operating Mode
- Auto Mode: Yes
- Fast Cool: Yes
- Dry Comfort: Yes
- Good Sleep: Yes
- Eco Mode: Yes
- Dehumidification: Yes
- Fan Mode: Yes
- Quiet: Yes
-
Smart
- WiFi Embedded: Yes
- Warranty: 1 Year
