Description

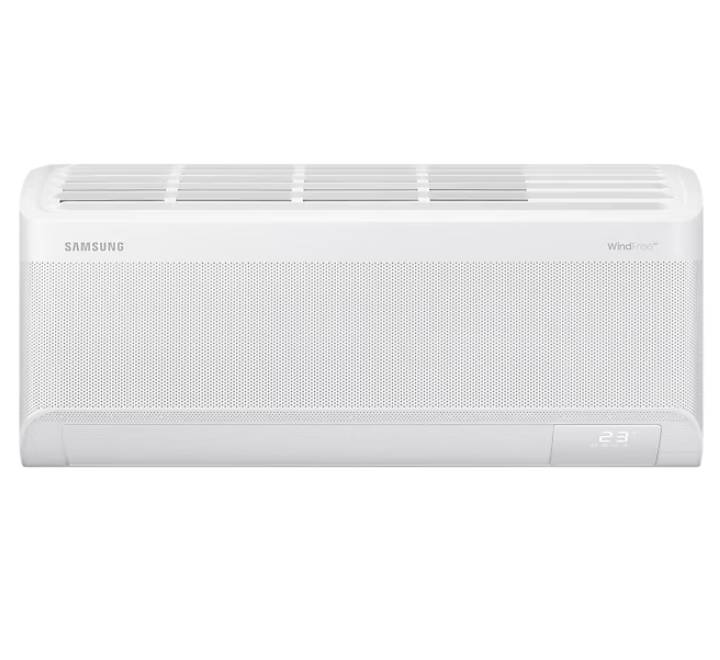

Samsung AR60F09D1AWNST 1.0 HP 9,000BTU/hr AI WindFree™ Lite AirConditioner Wall-mount -Comfort Cooling
- Brand: Samsung
- SKU: AR60F09D1AWNST
- Capacity: 9000 Btu/hr
- Net Dimension (Indoor, WxHxD, ㎜*㎜*㎜); 682*299*215 mm
- Power Consumption(Cooling, W): 920 W
-
Capacity
- Capacity (Cooling, Btu/hr): 9000 Btu/hr
- Capacity (Cooling, Min - Max, Btu/hr): 3,000 - 10,500 Btu/hr
- Capacity (Cooling, kW): 2.64 kW
- Capacity (Cooling, Min - Max, kW): 0.88 - 3.08 kW
-
Energy Efficiency
- SEER(Btu/hW): 17.60
- EER (Cooling, W/W): 2.87 W/W
- EER (Cooling, Btu/hW): 9.78 Btu/hW
- Energy Efficiency Class (Grade): 5-0★
-
Noise Level
- Noise Level (Indoor, High/Low, dBA): 37/19 dBA
- Noise Level (Outdoor, High/Low, dBA): 47 dBA
-
Electrical Data
- Power Source(Φ/V/Hz): 1 / 220-240~ / 50
- Power Consumption(Cooling, W): 920 W
- Operating Current(Cooling, A): 7.2 A
-
Physical specification
- Gross Dimension (Indoor, WxHxD, ㎜*㎜*㎜): 742*290*375 mm
- Gross Dimension (Outdoor, WxHxD, ㎜*㎜*㎜): 778*525*331 mm
- Net Dimension (Indoor, WxHxD, ㎜*㎜*㎜): 682*299*215 mm
- Net Dimension (Outdoor, WxHxD, ㎜*㎜*㎜): 660*475*242 mm
- Gross Weight (Indoor, kg):8.9 kg
- Gross Weight (Outdoor, kg): 20.3 kg
- Net Weight (Indoor, kg): 7.7 kg
- Net Weight (Outdoor, kg): 18.6 kg
- Loading Quantity (20/40/40Hft without Pipe): 130/269/324
- Piping Length (Max, m): 15 m
- Piping Height (Max, m): 8 m
- SVC Valve (Liquid (ODxL)): 6.35
- SVC Valve (Gas (ODxL)): 9.52
- Moisture Removal (l/hr): 1.0 l/hr
- Air Circulation (Cooling, ㎥/min): 7.5 m/min
- Refrigerant (Type): R32
- Refrigerant (Charging, kg): 0.36 kg
- Refrigerant (Charging, tCO2e): 0.24 tCO2e
- Low Ambient (Cooling, ℃): 16~46℃
- Outdoor Unit (Compressor Type): BLDC
- Outdoor Unit (Anti-Corrosion Fin): Yes
-
Air Flow
- WindFree Cooling: Yes
- Air Direction Control (Up/Down): Auto
- Air Direction Control (Left/Right): Auto
- Air Flow Control Step (Cool/Fan): 5/4
- Air Purification
- PM 1.0 Filter:No
- 4-in-1 Care Filter: No
- Copper Anti-bacterial Filter: Yes
- Auto Clean (Self Cleaning): Yes
-
Convenience
- SmartThings: Yes
- AI Auto Cooling: Yes
- Motion Detect Sensor: No
- Freeze Wash: Yes
- Filter Cleaning Indicator: Yes
- Indoor Temp. Display: Yes
- Display On/Off: Yes
- Beep On/Off: Yes
- 24-Hour Timer: Yes
- Auto Changeover: No
- Auto Restart: Yes
-
Operating Mode
- Auto Mode: Yes
- Fast Cool: Yes
- Dry Comfort: Yes
- Good Sleep: Yes
- Eco Mode: Yes
- Dehumidification:Yes
- Fan Mode: Yes
- Quiet: Yes
-
Smart
- WiFi Embedded: Yes
- Warranty: 1 Year
