Description

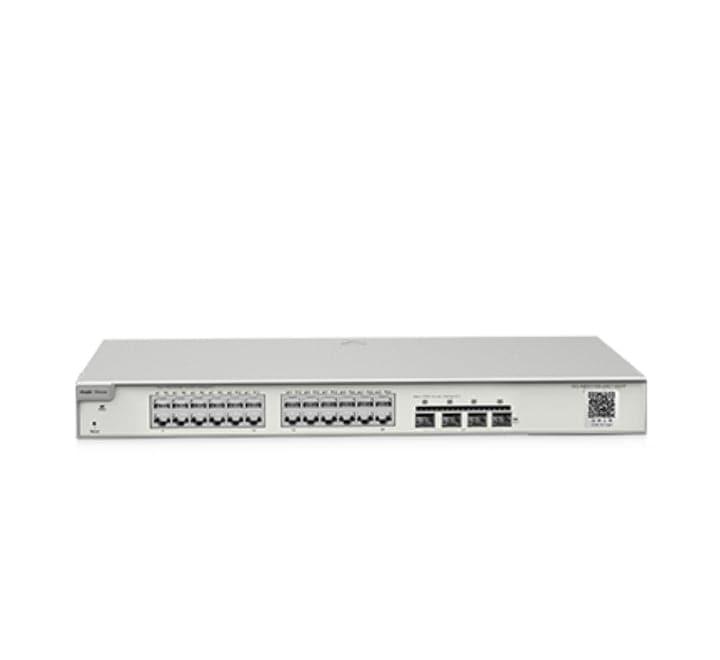

- 24-Port Gigabit L2+ Managed Switch
- 24 Gigabit RJ45 Ports, 4 SFP Ports
- 19-inch Rack-mountable Steel Case
- Static Routing
- Fixed ports: 24 10/100/1000Base-T ports, 4 SFP 1000Base-X ports, fixed single AC power supply
- Switching capacity: 56Gbps
- Packet forwarding rate: 42Mpps
- MAC address: Support static MAC address, MAC address filtering
- MAC address table size: 16K
- Number of VLANs: 4094
- Layer 3 aggregation ports: 16
- Link aggregation: Support
- Port mirroring: Many-to-one mirroring
- Spanning tree: STP, RSTP
- LLDP: Support
- IP routing: Support static routing
- ACL
- IP standard ACL
- MAC extended ACL
- IP extended ACL
- Port ACL for Layer 2 ports (physical port / AP)
- QoS: Port-based speed limit (ingress/egress)
- Security
- Port protection
- Hardware CPP
- Management: Web management, Ruijie Cloud platform or Ruijie Cloud app management
- DHCP: DHCP snooping
- EEE: Support
- Dimensions: 440x207.5x43.6mm
- Temperature
- Operating temperature: 0 ℃ ~ 50 ℃
- Storage temperature: -40 ℃ ~ 70 ℃
- Humidity
- Operating humidity: 10% ~ 90% RH
- Storage humidity: 5% ~ 90% RH
