Description

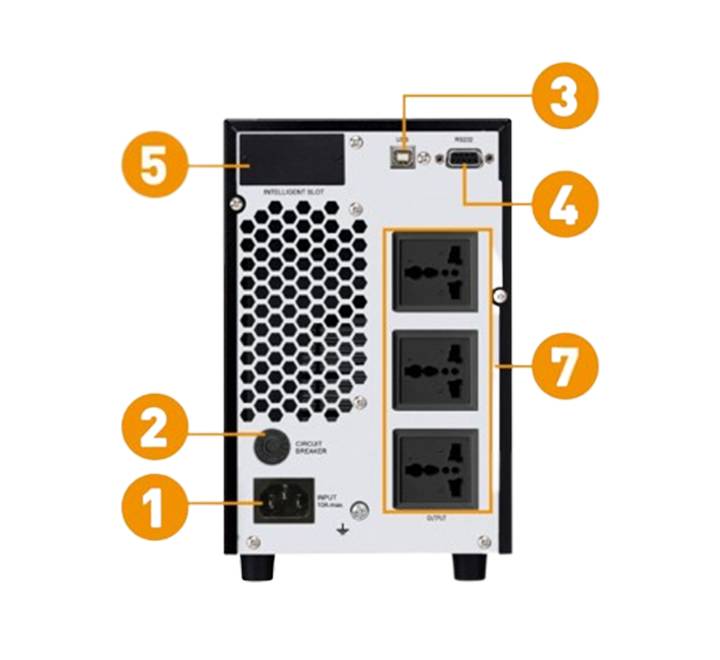

Prolink PRO902ES 2KVA/1800W Online UPS
- Brand: Prolink
- Capacity: 2KVA
- Model: PRO902ES
- Active Power Watt: 1600W/1800W
-
Battery
Model: 12V/9Ah - Warranty: 2 Years Parts and Service Warranty
- GENERAL
- UPS Type: Tower
- Phase: Single phase with ground
- Rating (VA): 2000
- Nominal Power (W): 1800
- Standard ModelDimension (mm): 397 x 145 x 220 (D x W x H)
- Long-run ModelDimension (mm): 397 x 145 x 220 (D x W x H)
- INPUT
- Connection Type: IEC 320-C14
- Nominal Voltage: 200/208/220/230/240 VAC
- Voltage Range: 110-300 VAC (Load at 50%)160-280 VAC (Load at 100%)
- Frequency Range: 45 ~ 70 Hz
- Power Factor: >= 0.99
- OUTPUT
- Connection Type: 3 x Universal socket (PRO902ES)2 x Universal socket (PRO902EL)
- Nominal Voltage: 200/208/220/230/240 VAC
- Voltage Regulation: ±1%
- Frequency Range (Synchronized Range): 47 ~ 53 Hz or 57 ~ 63 Hz
- Frequency Range (Batt. Mode): 50 Hz ± 0.25 Hz or 60 Hz ± 0.3 Hz
- Current Crest Ratio: 3:1
- Harmonic Distortion: ≤3% THD (Linear load)≤6% THD (Non-linear load)
- ALARM & INDICATORS
- Battery Mode: Sounding every 4 seconds
- Low Battery: Sounding every second
- Overload: Sounding twice every second
- Fault: Continuously sounding
- LCD: Load level, Battery Level, AC mode, Battery mode, Bypass mode and Fault
- CONNECTIVITY, CONTROL & MONITORING
- Front panel: Status LED, Function keys, LCD display
- Communication: Smart RS232*USB Port
- BATTERY
- Standard ModelType: 12V / 9Ah
- Numbers: 4
- Typical Recharge Time: 4 hours recover to 90% capacity
- Long-run ModelType: Depending on the capacity of external batteries
- Number: 6
- Charging Current (max): 1A / 2A / 4A / 6A Adjustable
