Description

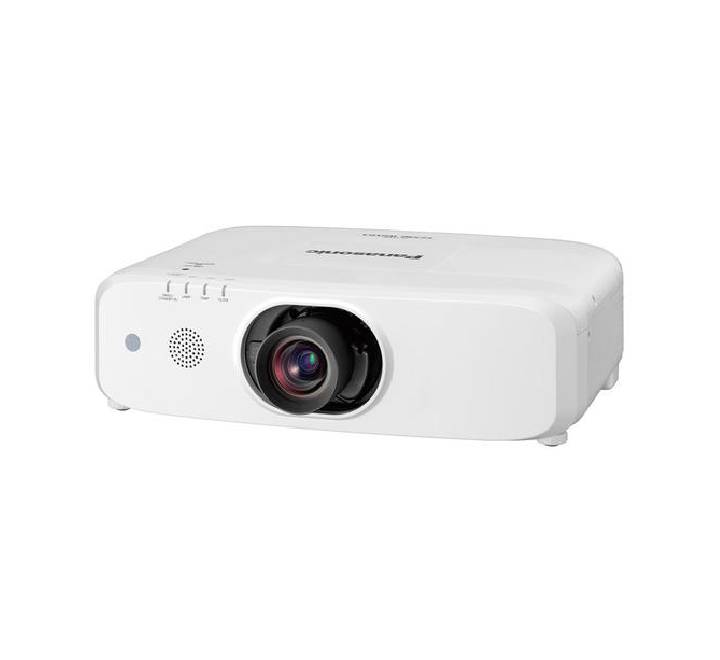

Panasonic PT-EW550 Hi-Brightness 3LCD Projector
- Brand: Panasonic
- Model name: PT-EW550
- Power supply: 100-240 V AC, 50/60 Hz
- Power consumption: 484 W (0.3 W with Standby Mode set to Eco*1, 12 W with Standby Mode set to Normal)
- LCD Panel
- Panel size: 16.3 mm (0.64 in) diagonal (16:10 aspect ratio)
- Display method: Transparent LCD panel (x3, R/G/B)
- Drive method: Active matrix
- Pixels: 1,024,000 (1,280 x 800) x 3, total of 3,072,000 pixels
- Lens: Powered zoom (throw ratio 1.22-2.26:1), powered focus, F 1.6-2.2, f 17.1-31.7 mm
- Lamp: 320 W UHM lamp x 1
- Lamp replacement cycle: 4,000 hours*2 (lamp power: Normal), 5,000 hours*2 (lamp power: Eco)
- Screen size (diagonal): 1.03-10.57 m (40-400 in), 16:10 aspect ratio
- Brightness*3: 5,800 lm (lamp power: Auto/Normal, Dynamic Mode, standard lens)
- Contrast*3: 2,000:1 (full on/full off, lamp power: Auto)
- Resolution: 1,920 x 1,200 pixels*4
- Scanning: HDMI Dot clock: 25-162 MHz
- Frequency
- DIGITAL LINK: (VGA: 640 x 480 pixels to WUXGA: 1,920 x 1,200 pixels, VESA CVT-RB compliant with HDCP)
- (DIGITAL LINK not included on PT-EW550/EW550L.)
- RGB: fH: 15-91 kHz, fV: 24-120 Hz, dot clock: up to 162 MHz
- Optical axis
- Vertical: ±60% (powered)
- Shift
- Horizontal: ±30% (powered)
- Keystone correction range*5: Vertical ±30°, horizontal ±25°
- Installation: Ceiling/floor, front/rear
- Built-in speaker: 3.7 cm round shape × 1, output power: 10.0 W (monaural)

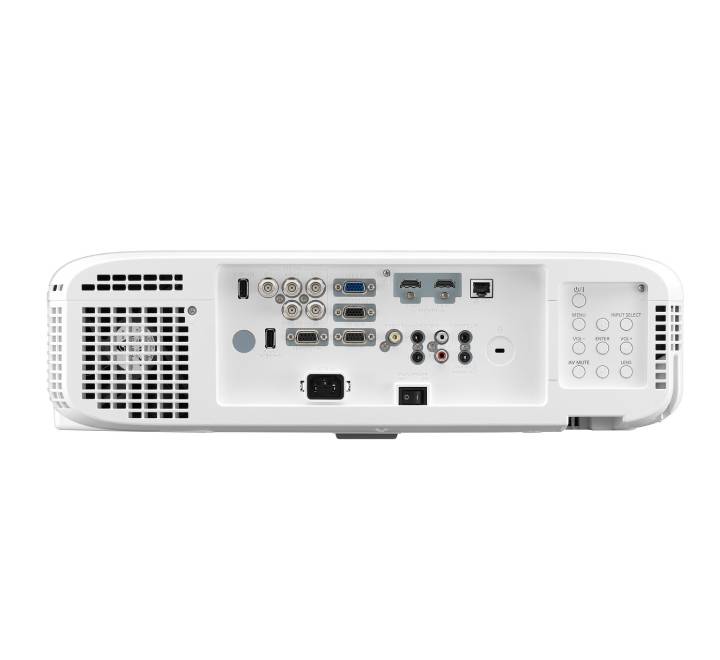

- Terminals
- HDMI IN: HDMI 19-pin x 2 (Deep Color, compatible with HDCP),
- audio signal: Linear PCM (Sampling frequency: 48 kHz/44.1 kHz/32 kHz)

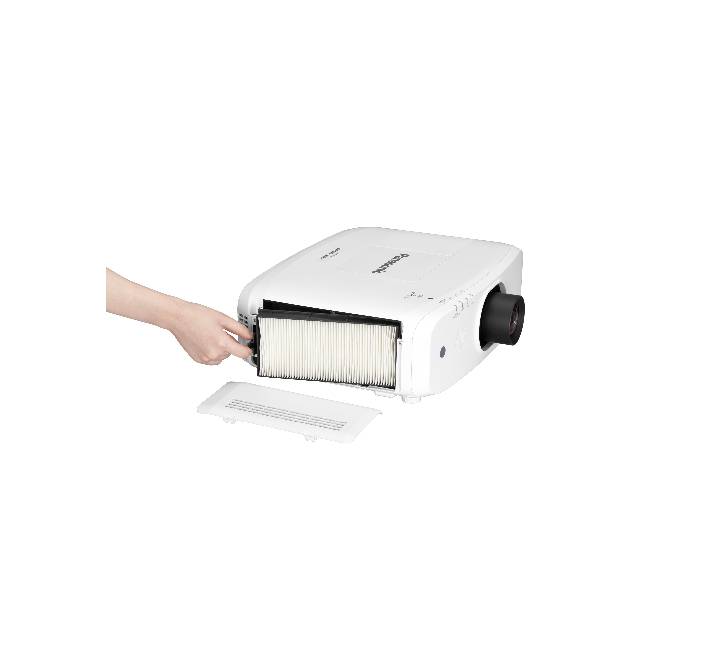

- Filter: x1, replacement cycle: up to 15,000 hours*6
- Mechanical shutter: Yes
- Cabinet materials: Molded plastic (PC + ABS)
- Dimensions (W x H x D)
- PT-EW550L: 498 x 145*7 x 398.3 mm (19-19/32 x 5-23/32*7 x 15-11/16 in) (with supplied lens)
- Weight*8
- PT-EW550L: Approx. 9.0 kg (19.8 lbs) (with supplied lens)
- Operating environment: Operating temperature: 0-45 °C (32-113 °F)*9,
- operating humidity: 20-80 % (no condensation)
- Supplied accessories: Power cord with power cord holder*10, wireless/wired remote control unit x 1,
- batteries (R03/LR03/AAA type x 2), Software CD-ROM x 1
- (Logo Transfer Software, Multi Monitoring and Control Software)
