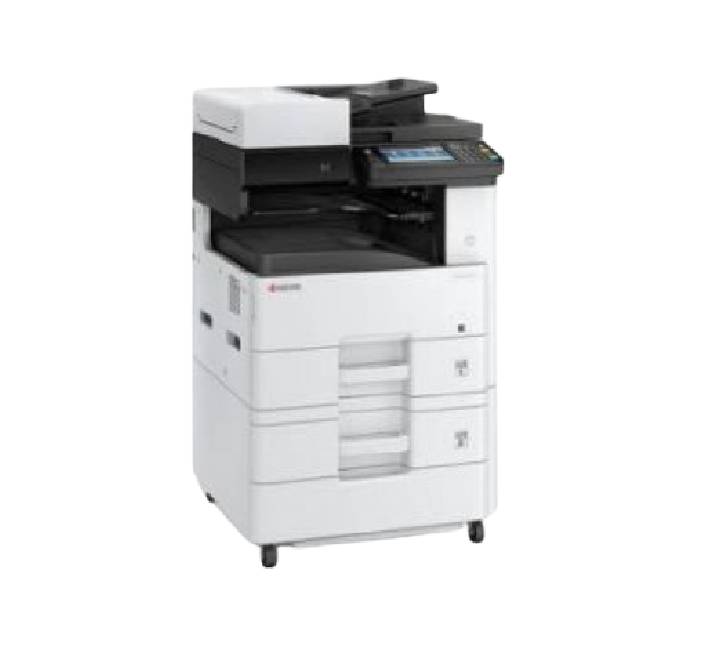

Kyocera M4132idn Semiconductor Laser Printer

Kyocera M4132idn Semiconductor Laser Printer

• Brand: Kyocera
• Model: M4132idn Semiconductor
• General / Hardware

• Type: A3 black‑and‑white multifunction printer (Copy, Print, Scan; Fax
• optional)

• Printing technology: Kyocera ECOSYS semiconductor laser

• Print/Copy speed:

• A4: 32 ppm B/W
• Resolution:

• Print up to fine 1,200 × 1,200 dpi

• Scan/copy: 600 × 600 dpi

• CPU & memory: ARM Cortex‑A9 dual‑core 1.2 GHz; 1 GB RAM (expandable to
• 3 GB); optional SSD (32/128 GB)

• Warm‑up time: ≤ 20–21 sec
•  Paper Handling

• Standard input: 600 sheets (500‑sheet cassette + 100‑sheet multi-purpose
• tray)

• Maximum capacity: Up to 1,600 sheets with optional trays

• Paper size: From A5R to A3/Legal (cassette) and up to A3 (MPT); duplex covers A5R–
• A4/Legal
• Paper weight:

• Cassette: 60–163 g/m²

• MPT: 45–256 g/m²

• Output tray: Up to 250 sheets + 50‑sheet job separator
•  Copier / Scanner / Fax

• Copy resolution: 600 × 600 dpi

• 1st copy time: ~5.2 secZoom range: 25–400 % in 1 % increments; presets 5R/5E
• Scan speed: 50 ipm (A4, 300 dpi) simplex & duplex

• Scan resolution: 600/400/300/200dpi; multiple modes; file formats include TIFF,
• JPEG, PDF, XPS

• Fax (optional): ITU‑T Super G3; up to 33.6 kbps; 12 MB memory
•  Connectivity & Interface

• Standard interfaces:

• USB 2.0 (high‑speed), USB Host ×2

• Ethernet 10/100/1000Base‑T

• NFC tag reader

• Wi‑Fi (802.11 b/g/n, Wi‑Fi Direct) – optional

• Network protocols: TCP/IP, NetBEUI, FTP, LPR, IPP/SSL, Apple Bonjour, NetBIOS,
• etc.

• Mobile printing: AirPrint, Mopria, Kyocera Mobile Prin
•  Performance / Power / Footprint

• Power consumption:

• Copy/Print: ~515 W (standard config)

• Standby: ~60–70 W; Energy Saver: ~0.5 W

• Noise levels: ~50 dB(A) operating; ~34 dB(A) standby

• Dimensions (with standard DP): ≈ 590 × 590 × 688 mm

• Weight: ~72–74 kg (52 kg per some sources – may vary by region / config)
•  Additional Features

• Standard reversing automatic document feeder (RADF, 50 sheets)

• 4.3″ (M4125) or 7″ (M4132) color touch-screen & HyPAS platform

• Up to 100,000 pages/month duty cycle

• Security: encrypted PDF printing, SSL/IPSec, Data Security Kit, optional card
• authentication

• Long-life ceramic components, energy-star compliant, eco-conscious consumable
• recycling
• Toner Kit -TK-6110 K : 15,000 pages

• Maintenance Kit

• MK-6119 : 300,000 pages;

• DP : MK-6110 : 300,000pages
