Description
- Brand: JBL
- Model: CV1070
- System type: 10”, 2-way, bass-reflex
- Frequency range (-10dB): 50Hz - 20kHz
- Frequency Response (±3dB): 85Hz – 18kHz
- System Sensitivity (1w @ 1m): 95dB
- Nominal Impedance: 8Ω
- Maximum SPL (1m): 120dB continuous average (126dB peak)
- Power Rating (Continuous/Program/Peak): 300W / 600W / 1200W
- Coverage: 100° × 70° (H × V)
- Low frequency drive unit: 1 x 10” woofer
- HF driver: 1 x 2414H-C tweeter
- Enclosure: Trapezoid, 15 mm plywood
- Suspension: 15 × M10 threaded suspension points
- Exterior color: Textured paint, black. White (-WH) available upon request.

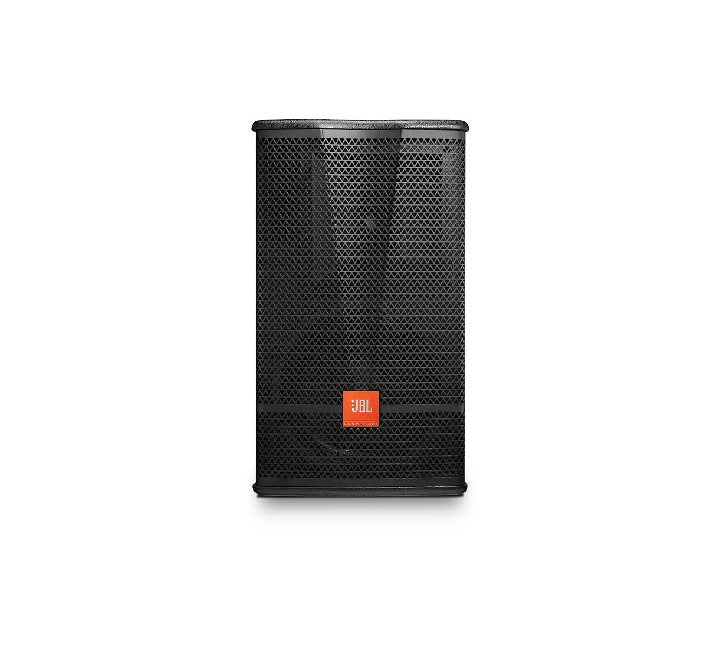

- Grille: Powder coated 1.5mm perforated cold rolled steel

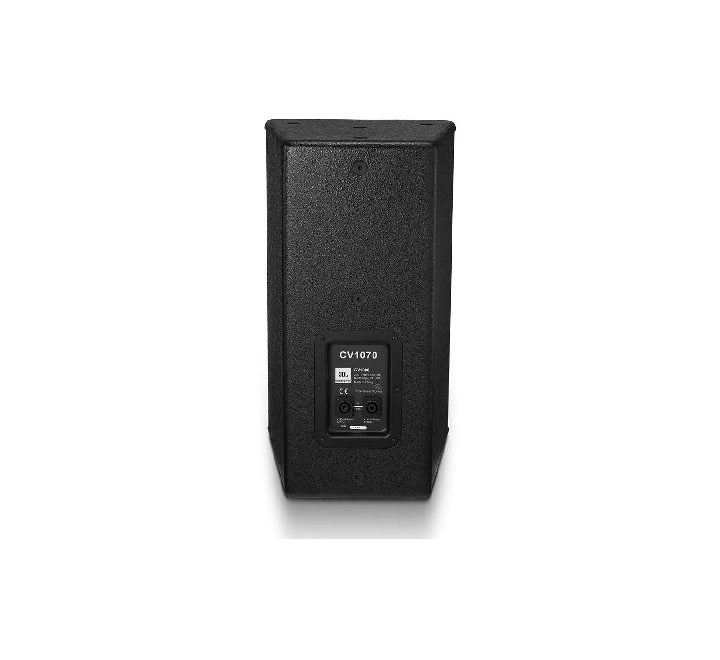

- Input Connector: Dual NL4MP Neutrik Speakon® in parallel for loop-through
- Dimensions: 535 × 310 × 329 mm
- Weight: 13.5 kg
- Warranty: 1 Year
