Description

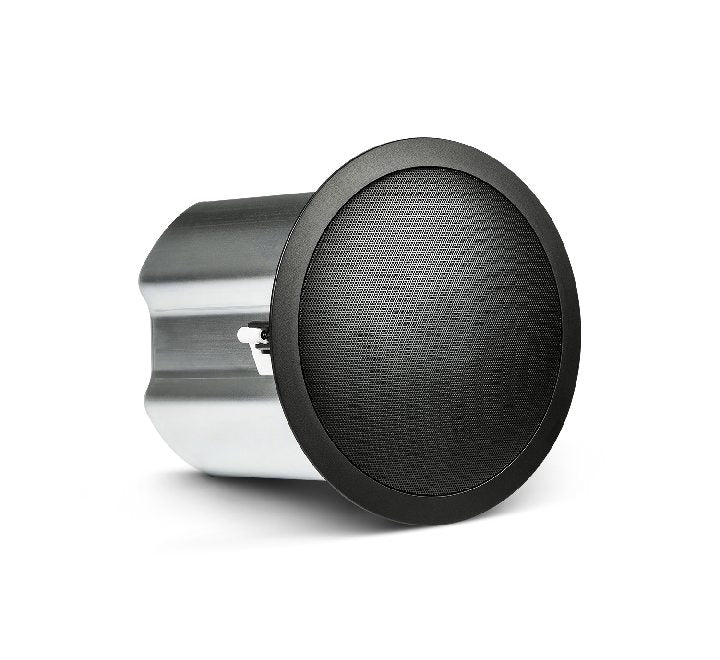

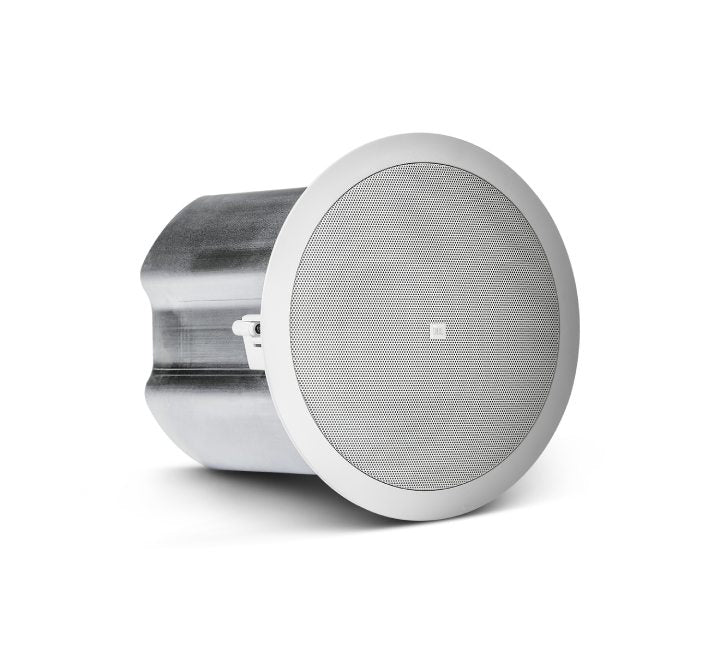

JBL Control 16C/T Two-Way 6.5" Coaxial Ceiling Loudspeaker
- Brand: JBL
- Frequency Range(-10dB): 62 Hz – 20 kHz
- Power Rating
- IEC System Long-Term Ratings (low-Z direct):
- 100 Watts Continuous Program Power
- 50 Watts Continuous Pink Noise (200W peak), 100 hr
- Transformer Taps: 30 W, 15 W, 7.5 W @ 70V or 100V (plus 3.8 W @ 70V only)
- Frequency Response (±3 dB) 96 Hz – 15 kHz
- Sensitivity: 91 dB (1kHz - 16 kHz)
- Coverage Angle: 110° conical
- Directivity Factor (Q): 7.8
- Directivity Index (DI): 8.2 dB
- Maximum SPL (1m)
- 108 dB (low-impedance, 116 dB peak)
- 106 dB (top 70V/100V tap)
- Impedance: 8 ohms (in direct/bypass setting)
- Crossover Network: 12 dB/oct (2nd order) low-pass to LF driver, 12 dB/oct (2nd order) high-pass to HF driver
- Drivers LF Driver: 165 mm (6.5 in)
- HF Driver: 19 mm (3/4 in)
- Input Connectors: Removable locking 4-pin connector with screw-down terminals. Max wire size 12 AWG (2.5 mm2)
- Connector Wiring: Pin 1 = + In; Pin 2 = - In; Pin 3 = + Loop Thru; Pin 4 = - Loop Thru
- Strain Reliefs Strain relief for two cables or two flex conduits via coupled clamping mechanism
- Materials: ABS baffle with UL94-V0 and UL94-5VB flame class fire rating; Zinc-plated steel backcan
- Dimensions: 253 mm diameter x 225 mm depth from back of baffle (10.0 in diameter x 8.8 in depth)
- Safety Seismic Attachment: One point, top surface
- Ceiling Cutout Size: Circular cutout with 223 mm (8.8 in) diameter (cardboard cutout template included)
- Ceiling Thickness Range: Up to 38 mm (1.5 in) with stock dog-ears. MTC-TCD thick-ceiling dog-ears available for up to 60 mm (2.4 in) ceiling thicknesses
- Net Weight: 3.4 kg (7.4 lbs, one speaker)
Two-Way 6.5" Coaxial Ceiling Loudspeaker

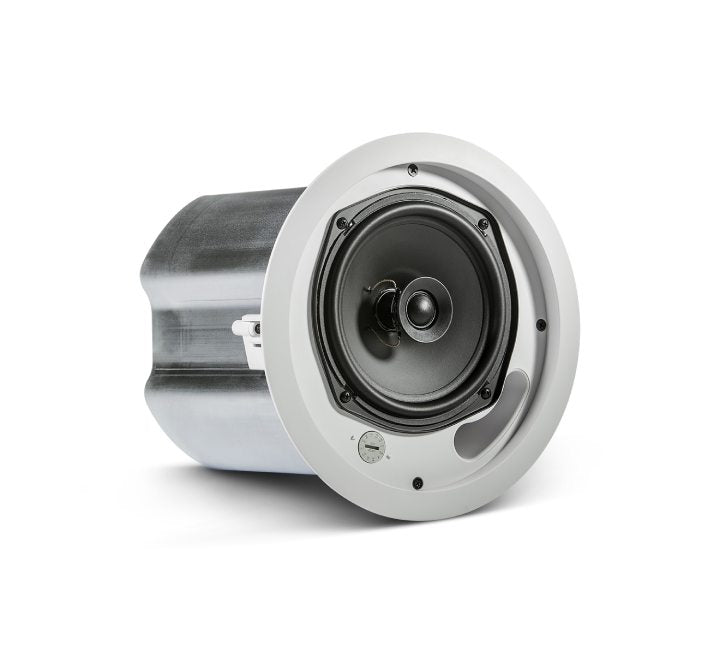

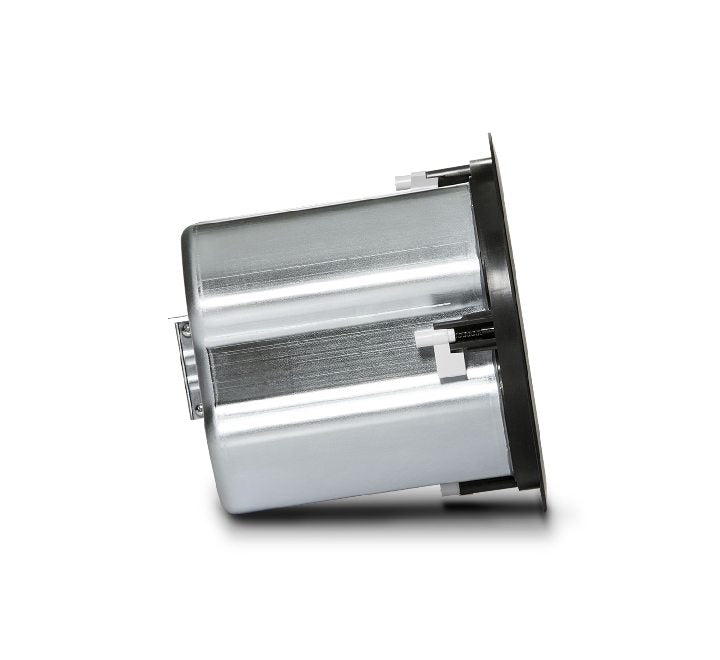

Control 16C/T is a full-range ceiling speaker consisting of a 165 mm (6.5 inch) high tech cone driver and a 19mm soft-dome liquid cooled tweeter mounted in a vented, paintable baffle made of UV resistant UL94-V0 and UL94-5HB material, with a pre-attached blindmount backcan for quick and easy installation.
