Description
- Physical Specification
- Enclosure Type: ABS Plastic
- Operating Humidity: < 85% non-condensing
- Operating Temperature: 32 to 118°F (0 to 47°C)
- Product Dimensions (H×D×W): 75.4 × 15.2 × 37.8 mm
- Product Weight: 40.8 g
- Performance
- Audio Channel: HDMI™ 2.1
- Displays Supported: 1
- Max Data Transfer Rate: 5 Gbps
- Max Display Refresh Rate: 30 Hz
- Max Display Resolution: 3840 x 2160
- Hardware
- Audio Supported: Yes

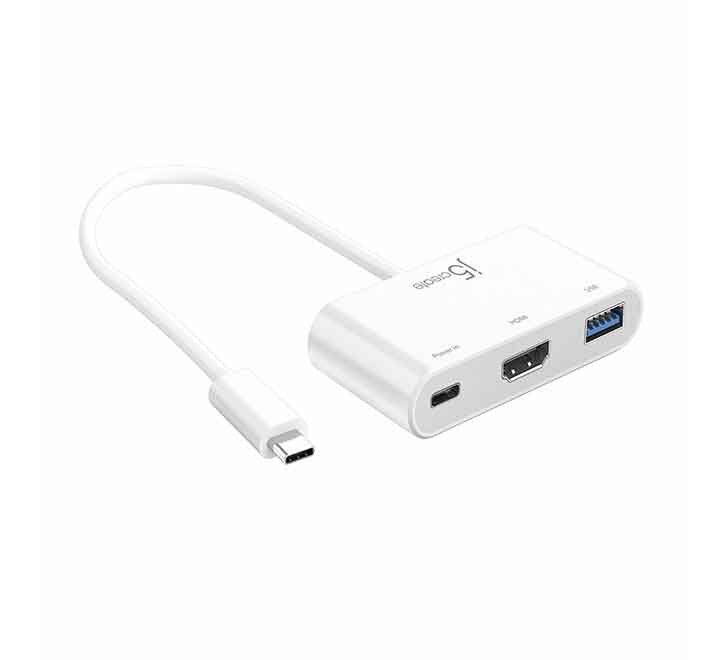

- Host Connector: USB-C Male
- Ports: 1 - USB-C® PD for upstream charging, 1 - HDMI™ Output, 1 - USB™ 3.0 Gen 1 Type-A 5 Gbps
- Power Source: Bus-Powered, Self-powered
- Usb Pass-Through: Yes
- Video Output: HDMI
- Power
- Input Current: Up to 5A
- Input Voltage: Up to 20V
- Output Current: Up to 4.5A
- Output Voltage: Up to 20V
- Power Consumption: ≥ 350 mA

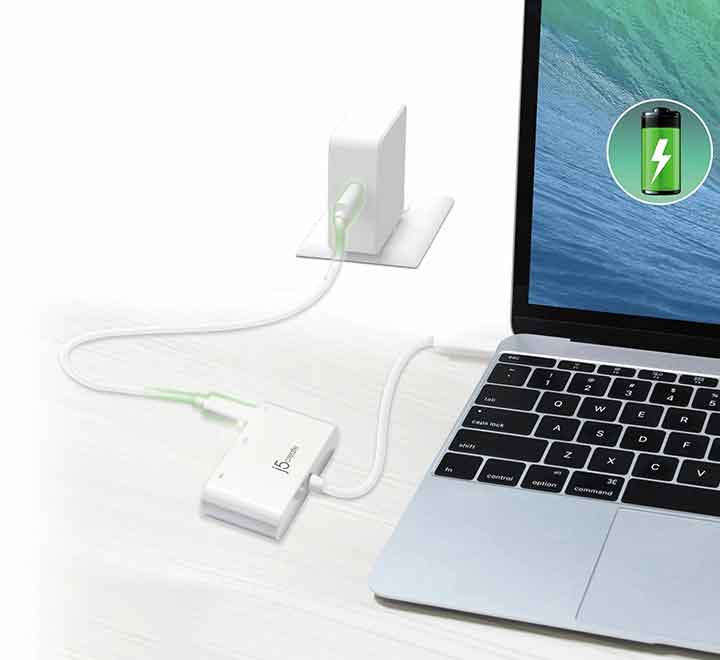

- Power Delivery: Up to 100W via USB-C
