Description

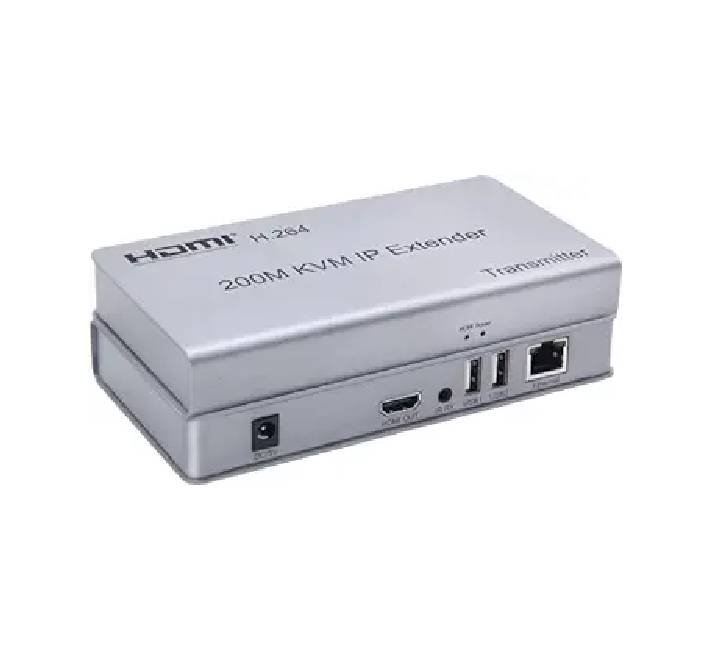

HDMI RJ45 Ethernet CAT6 6A 200M KVM IP Extender
- Current Rating: 6 Amps
- Operating Voltage: 5 Volts
- Connector Type: Hdmi
- Brand: Swallow house
- Mounting Type: Plug-In Mount
- International Protection Rating: IP IP
- Control Method: Remote
- Connectivity Protocol: Ethernet
- Unit Count: 1 Count
- This HDMI 200M Extender over IP is based on TCP/IP standard. It transmits your HD display with the high resolution up to 200M away from your DVD or computer source by using one CAT5e/6/6a/7 cable. At the same time, it's convenient to transmit HDMI audio and video source by point-to-point mode, one point-to-many mode and cascade connection mode .
- And support USB Keyboard/Mouse Control
- Warm Tips :Cat6/6a or Cat 7 Cable is recommended,Cat5e is not good enough,do not advise use !
- Support IR remote control
- Support USB mouse and keyboard extension.
- The design of pure hardware, plug and play, no need for additional software.
- Resolutions: 480p,720p,1080p
- Audio: Sample rate:32kHz,44.1kHz and 48kHz code
- IR remote control: 38 KHz; N E C
- HDMI version: HDMI 1.3
- Power adapter: DC:5V/1A
- Power consumption: HDMI sender: 3W HDMI receiver: 3W
- Size(L-W-H): Approx. 163*87*24mm
- Package Content for 1 set:
- 1 Transmitter and 1 Receiver
- 2 AC Power Supply Adapter
- 1 User Guide
- 2 IR Cable
