Description

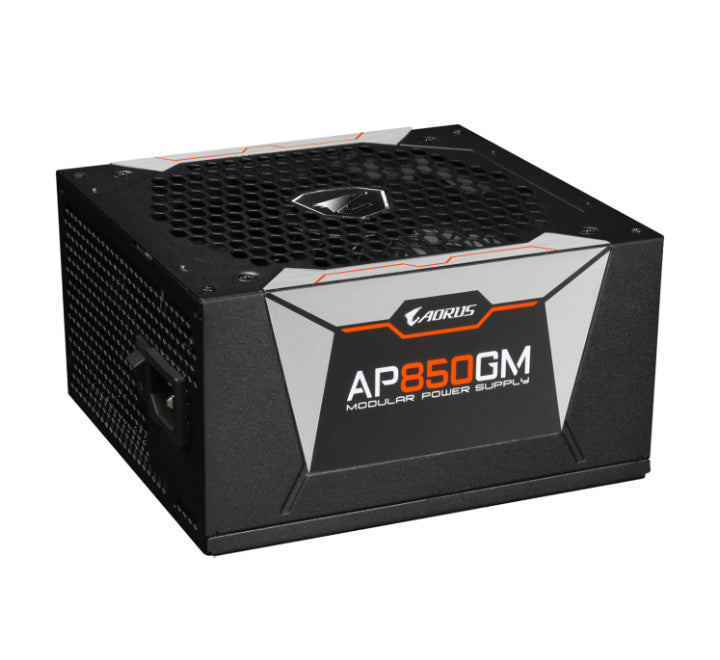

GIGABYTE AORUS P850W 80+ Gold MODULAR
Specification
- Model: GP-AP850GM
- Type: Intel Form Factor ATX 12V v2.31
- PFC: Active PFC (>0.9 typical)
- Input Voltage: 100-240 Vac (full range)
- Input Current: 10A
- Input Frequency: 47-63 Hz
- Output Capacity: 850W
- Dimension: 150 x 160 x 86mm
- Fan Type: 135mm Double ball bearing fan
- 80 PLUS: Gold
- Efficiency: 90% at typical load
- MTBF: >100,000 hours
- Protection: OVP/OPP/SCP/UVP/OCP/OTP
- Power Good Signal: 100ms ~ 150ms
- Hold Up Time: > 16m sec at full load (115V)
- Cable Type: Flat, All black
- Connectors: ATX/MB 20+4 Pin x 1 : 650mm, CPU/EPS 4+4 Pin x 2 : 800mm*1 , 650mm*1, PCI-e 6+2 Pin x 6 : 750mm*2 , 650mm+150mm*2, SATA x6 + 4 Pin Peripheral x2 :, 550mm+100mm+100mm+100mm*1, 450mm+100mm+100mm+100mm *1, 4 Pin Peripheral x 3 + 4 pin Floppy x 1 : 450mm+100mm+100mm+100mm*1, 4 Pin Floppy x 1 : 100mm
