Description
- Brand: Crown
- Model: KVS1000
- Frequency Response: 20Hz - 20kHz, +0/-1dB
- Total Harmonic Distortion (THD): < 0.5%, 20 Hz - 20kHz
- Intermodulation Distortion: = / < 0.35% (from full rated output to -30dB)
- Conversion Rate: >10V/us
- Voltage Gain: 36dB
- Signal to Noise Ratio (below rated power 20 Hz to 20 kHz, A-Weighted): >100dB
- Damping Factor: >200 (8Ω, 10Hz - 400Hz)
- Crosstalk: -75dB at 1kHz, -59dB at 20kHz
- Input Sensitivity: 0.775V or 1.4V (rated power 8Ω)
- Input Impedance: 20kΩ
- Input Connectors: Balanced XLR per channel
- Output Connectors: 4-POLE Speakon® and a pair of binding posts per channel

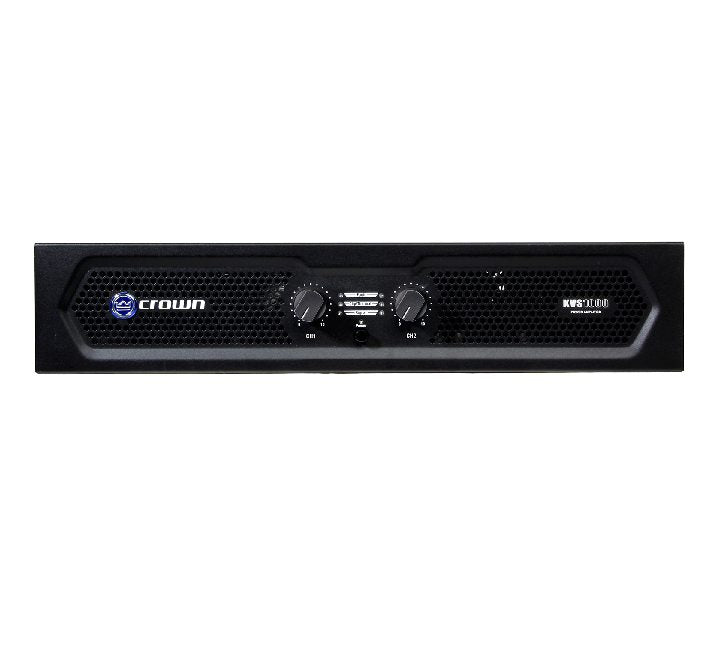

- Front Panel Components: Power switch, channel gain control

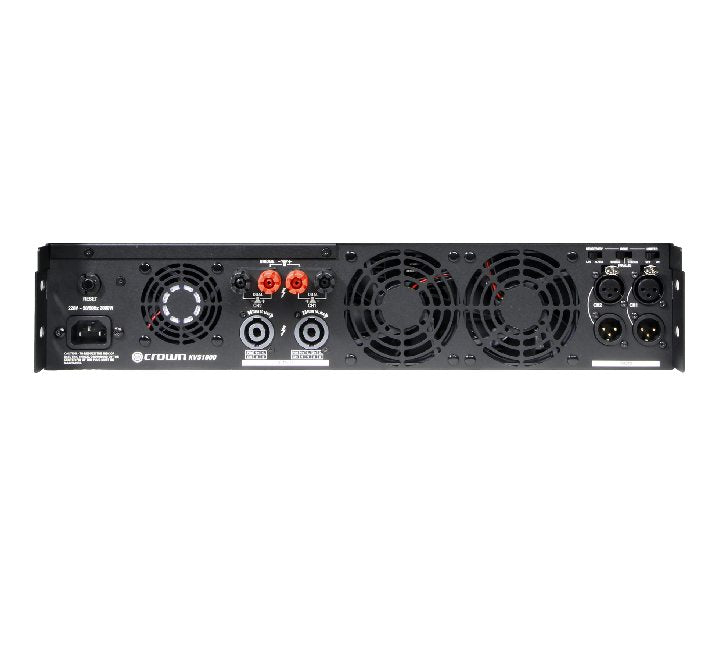

- Rear Panel Components: Output mode switch: stereo, parallel, bridge, Input sensitivity switch: 0.775V or 1.4V
- Power Indicator: Blue and green two-color LED
- Signal Indicator: One green LED per channel
- Clip Indicator: One yellow LED per channel
- Fault Indicator: Red LED per channel , indicating that the channel is closed
- Power cables: Plug 10A, 250V, Wire : CCC 3x1.5mm 2
- Protection: Protection against short circuit, no load, on / off noise, radio interference protection circuit
- Ventilation: Air convection mechanism
- Cooling: Internal air is forced to dissipate heat, fan cooling, rapid adjustment, temperature protection
- Dimensions: 482 x 89 x 395 mm
- Weight: 9.7 kg
