Description

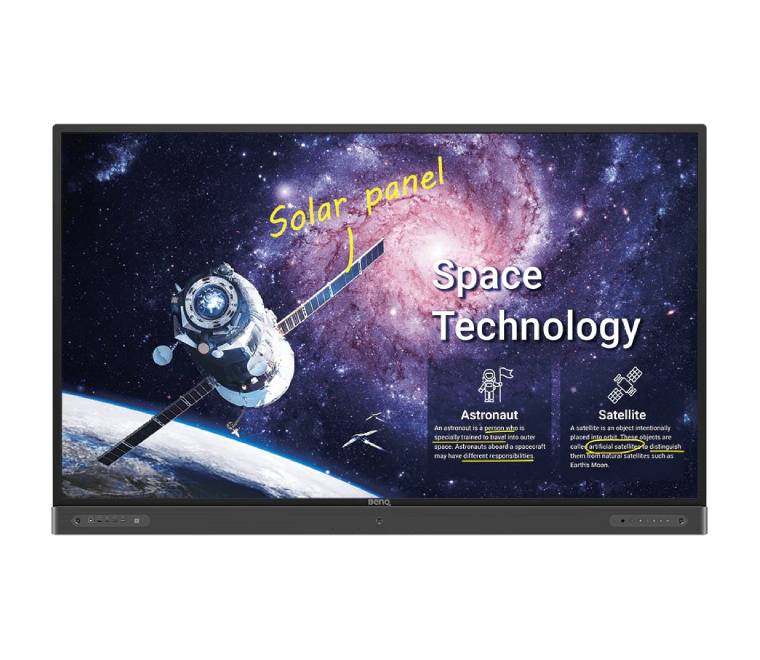

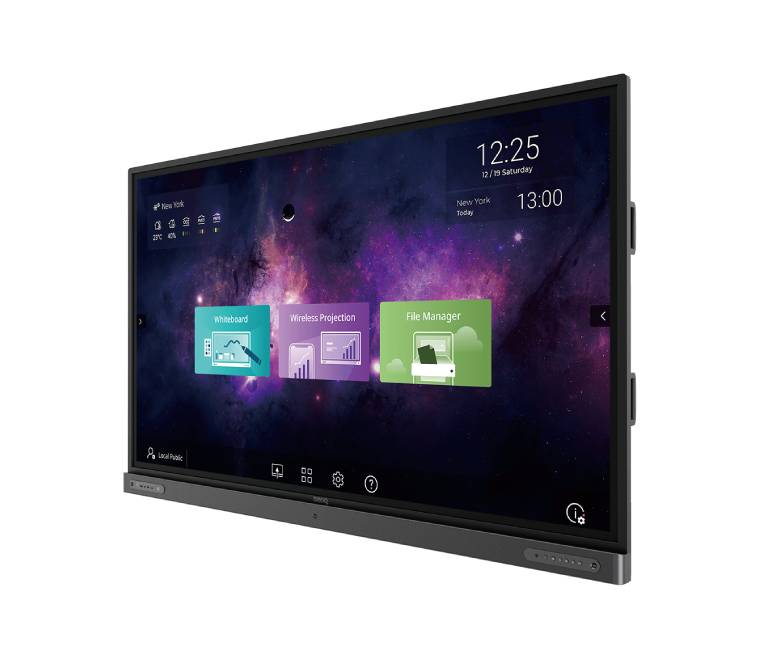

BenQ Smart Interactive Board with 4K UHD RP6502 (65-inch)
Panel
- Screen size: 65''
- Panel type: IPS
- Resolution: UHD 3840 × 2160 pixels
- Active area: 1428.5 × 803.5 mm
- Aspect ratio: 16:9
- Brightness without glass (typical): 350 nits
- Contrast ratio (typical): 1200:1
- Dynamic contrast ratio: 30,000:1
- Color depth: 10-bit
- Response time: 8 ms
- Color gamut: 68% NTSC
- Operation hours: 18 hours / 7 days
- Orientation: Landscape
- Light life (typical): 50,000 hrs
Glass
- Hardness: 9H tempered
- Germ-resistant coating: Nano-ionic silver
- Anti-glare coating: Yes
- Touch screen
- Touch technology: Infrared touch
- Touch points: 20
- Touch response time: < 4 ms
System
- CPU: A73 × 2 + A53 × 2
- GPU: Mali-G51MP4
- Memory | Storage: 4GB I 32GB
- OS: Android 8.0
Connectivity
- HDMI (in | out): 3 × HDMI 2.0 | 1 × HDMI 2.0
- VGA (in | out): 1 | 0
- 3.5 mm Line in (1): Mic × 1
- 3.5 mm Line in (2): PC Audio × 1
- 3.5 mm Line out: Earphone × 1
- SPDIF (in | out): 0 | 1 (optical)
- USB-A: 3 × 2.0 + 2 × 3.0
- USB-B (for touch): 1284.1 × 754.9 × 92.6 mm (50.6 × 29.7 × 3.6 inch)
- USB-C: 1 × 3.0
- Slot-in PC (OPS): 1
- Ethernet LAN: 10 / 100 Mbps (Android), 10 / 100 / 1000 Mbps (OPS) × 1
- Built-in peripherals
- Microphone: 8 (Max. pickup range 8m)
- Speaker: 2 × 16 W
- Subwoofer: 1 × 15 W
- Particle sensor: PM2.5
- Temperature sensor: 1
- Humidity sensor: 1
- Air sensor: TVOC
- Motion sensor: 3
- NFC Reader/Writer: Yes
- Wi-Fi: optional
Power
- Power: AC 100-240V 50/60Hz
- Maximum Power Consumption (Watt): 202 W
- Standby power consumption: <0.5 W
- Typical power consumption: 81.4 W
Physical
- Dimensions (W x H x D): 1505.9 × 951 × 121.5 mm (59.3 × 37.4 × 4.8 inch)
- Shipping dimensions (W x H x D): 1660 × 1045 × 220 mm (65.4 × 41.1 × 8.7 inch)
- Weight (product I shipping): 44 kg | 56 kg (97 lbs | 123.5 lbs)
- Mount (screws): VESA 600 × 400 mm (4 × M8 × 20L)
- Pen Tray: 1
Environment
- Operating temperature: 0°C ~ 40°C
- Storage temperature: -10°C ~ 60°C
- Storage humidity: 10% ~ 80% RH Non-Condensing
- Operating humidity: 10% ~ 90% RH non-condensing
Software
- Whiteboarding: EZWrite 5.0
- Wireless screen sharing: InstaShare 1
- Account management: AMS
- Device management: DMS
- Quick access tool: Floating Tool
- Broadcast system: X-Sign Broadcast
