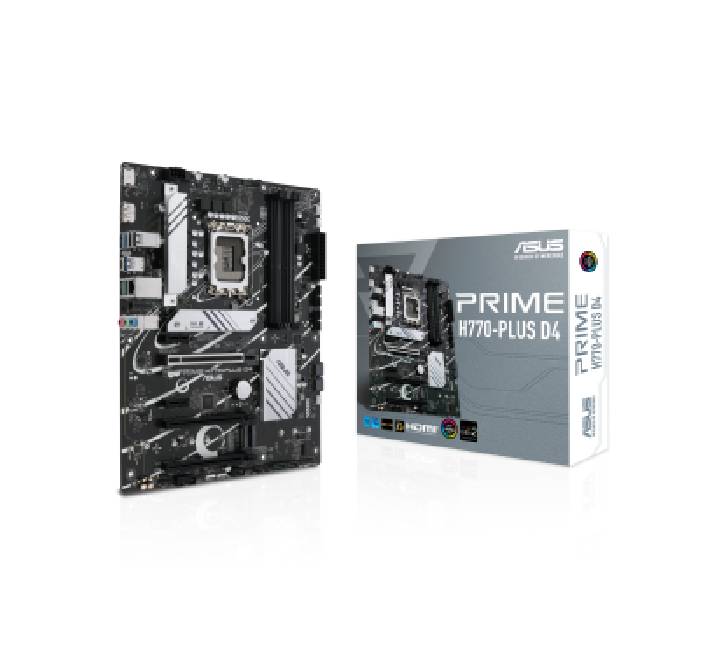

ASUS Prime H770-PLUS D4-CSM Motherborads

Brand: ASUS
SKU: ASUS PRIME H770-PLUS D4-CSM

Warranty: 3 Years

K931,000

ဈေးနှုန်းများ အချိန်နှင့်တပြေးညီ အနည်းငယ် အပြောင်းအလဲရှိနိုင်ပါသည်။
See the description below.or write a review to earn points.

Add to Wishlist

Description

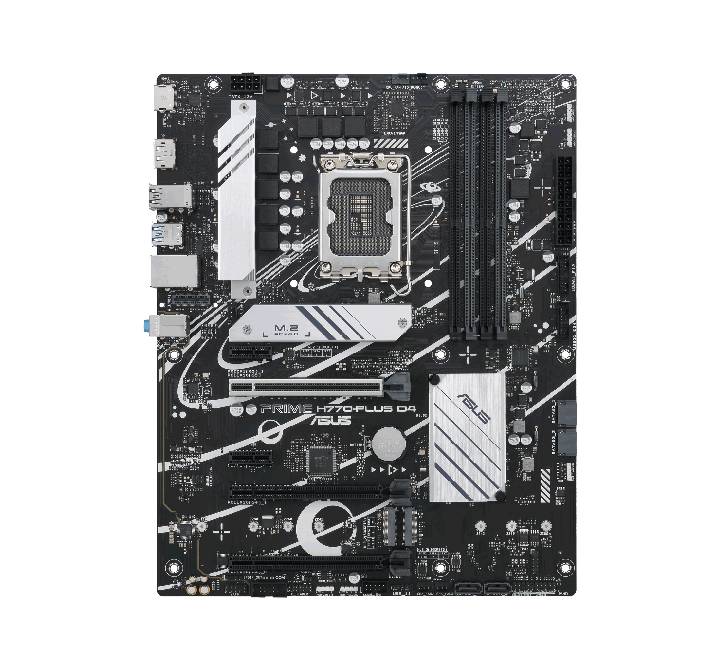

ASUS Prime H770-PLUS D4-CSM Motherborads

  • Brand: ASUS
  • Model: PRIME H770-PLUS D4
  • CPU: Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
  • Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
  • * Refer to www.asus.com for CPU support list.
  • ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
  • Chipset: Intel® H770 Chipset
  • Memory: 4 x DIMM, Max. 128GB, DDR4 5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
  • Dual Channel Memory Architecture
  • Supports Intel® Extreme Memory Profile (XMP)
  • Graphics
    • 1 x DisplayPort**
    • 1 x HDMI® port***
    • * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
    • ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
    • *** Supports 4K@60Hz as specified in HDMI® 2.1.
  • Expansion Slots
    • Intel® 13th & 12th Gen Processors*
    • 1 x PCIe 5.0 x16 slot
    • Intel® H770 Chipset
    • 2 x PCIe 4.0 x16 slots (support x4 mode)
    • 2 x PCIe 3.0 x1 slots
  • Storage
    • Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
    • Intel® 13th & 12th Gen Processors
    • M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
    • Intel® H770 Chipset
    • M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
    • M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
    • 4 x SATA 6Gb/s ports
    • * Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
    • Ethernet: 1 x Realtek 2.5Gb Ethernet
    • Wireless & Bluetooth: Vertical M.2 slot only (Key E, CNVi & PCIe)*
    • * Wi-Fi module is sold separately.
  • USB
    • Rear USB (Total 8 ports)
    • 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®)
    • 3 x USB 3.2 Gen 1 ports (3 x Type-A)
    • 2 x USB 2.0 ports (2 x Type-A)
    • Front USB (Total 7 ports)
    • 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
    • 2 x USB 2.0 headers support 3 additional USB 2.0 ports
  • Audio
    • Realtek 7.1 Surround Sound High Definition Audio CODEC*
    • Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
    • Supports up to 24-Bit/192 kHz playback
  • Audio Features
    • Audio Shielding
    • Premium audio capacitors
    • Dedicated audio PCB layers
    • A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
  • Back Panel I/O Ports
    • 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®)
    • 3 x USB 3.2 Gen 1 ports (3 x Type-A)
    • 2 x USB 2.0 ports (2 x Type-A)
    • 1 x DisplayPort
    • 1 x HDMI® port
    • 1 x Vertical M.2 slot (Key E)
    • 1 x Realtek 2.5Gb Ethernet port
    • 3 x Audio jacks
  • Internal I/O Connectors
    • Fan and Cooling related
    • 1 x 4-pin CPU Fan header
    • 1 x 4-pin AIO Pump header
    • 3 x 4-pin Chassis Fan headers
  • Power related
    • 1 x 24-pin Main Power connector
    • 1 x 8-pin +12V Power connector
  • Storage related
    • 3 x M.2 slots (Key M)
    • 4 x SATA 6Gb/s ports
  • USB
    • 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
    • 2 x USB 2.0 headers support 3 additional USB 2.0 ports
  • Miscellaneous
    • 3 x Addressable Gen 2 headers
    • 2 x Aura RGB headers
    • 1 x Clear CMOS header
    • 1 x COM Port header
    • 1 x Front Panel Audio header (AAFP)
    • 1 x S/PDIF Out header
    • 1 x SPI TPM header (14-1pin)
    • 1 x 20-3 pin System Panel header with Chassis intrude function
    • 1 x Thunderbolt™ (USB4®) header
  • Special Features
    • ASUS 5X PROTECTION III
    • DIGI+ VRM
    • LANGuard
    • Overvoltage Protection
    • SafeSlot Core+
    • Stainless-Steel Back I/O
    • ASUS Q-Design
    • Q-DIMM
    • Q-LED Core
    • Q-Slot
    • ASUS Thermal Solution
    • M.2 heatsink
    • VRM heatsink design
    • ASUS EZ DIY
    • ProCool
    • Aura Sync
    • Aura RGB headers
    • Addressable Gen 2 headers
  • Software Features
    • ASUS Exclusive Software
    • Armoury Crate
    • Aura Creator
    • Aura Sync
    • Fan Xpert 2+
    • Power Saving
    • AI Suite 3
    • DIGI+ VRM
    • PC Cleaner
    • ASUS CPU-Z
    • Norton 360 Deluxe (60 Days Free Trial)
    • WinRAR
    • UEFI BIOS
    • ASUS EZ DIY
    • ASUS CrashFree BIOS 3
    • ASUS EZ Flash 3
    • ASUS UEFI BIOS EZ Mode
  • BIOS: 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
  • Manageability: WOL by PME, PXE
  • Accessories
    • Cables
    • 2 x SATA 6Gb/s cables
    • Miscellaneous
    • 1 x I/O Shield
    • 1 x M.2 Rubber Package
    • 2 x Screw Packages for M.2 SSD
    • Documentation
    • 1 x User guide
    • Operating System: Windows® 11, Windows® 10 64-bit
  • Form Factor
    • ATX Form Factor
    • 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
