Description

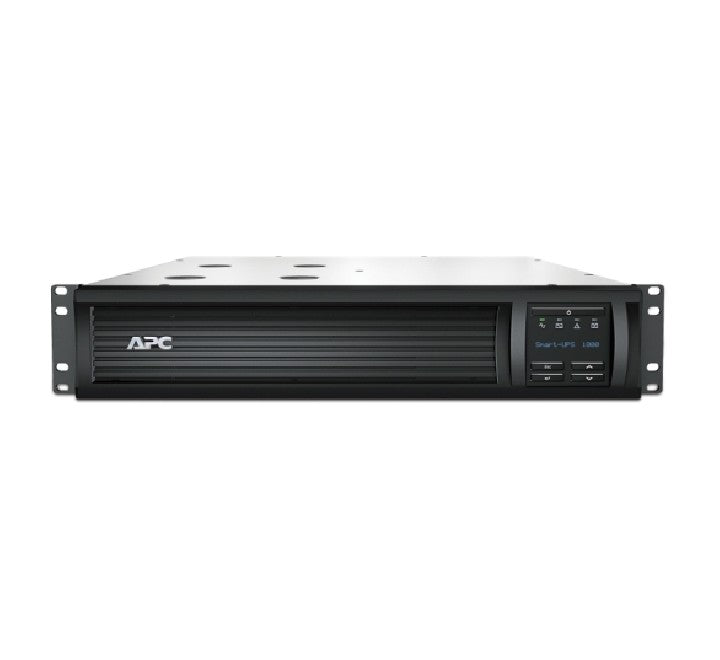

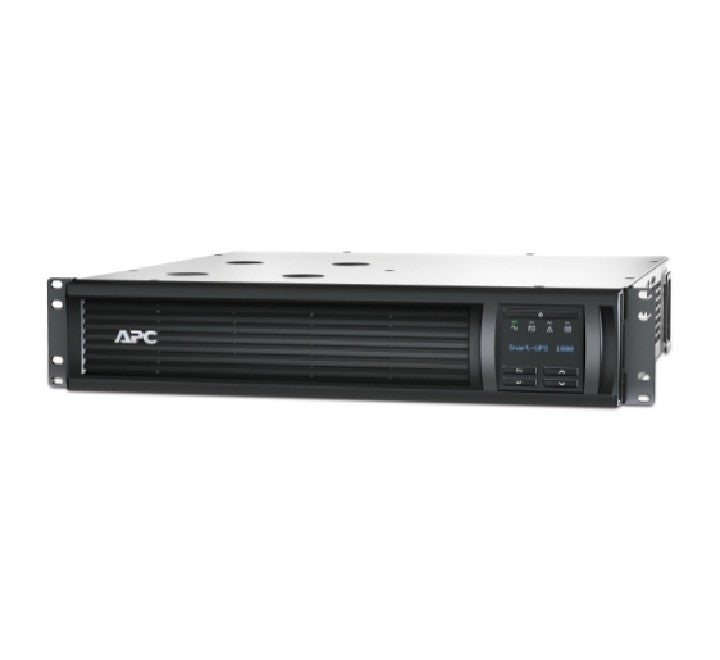

APC SMT1000RMI2UC Smart-UPS 1000VA LCD RM 2U 230V with SmartConnect
- Output power capacity: 700 Watts / 1.0kVA
- Rack Height: 2U

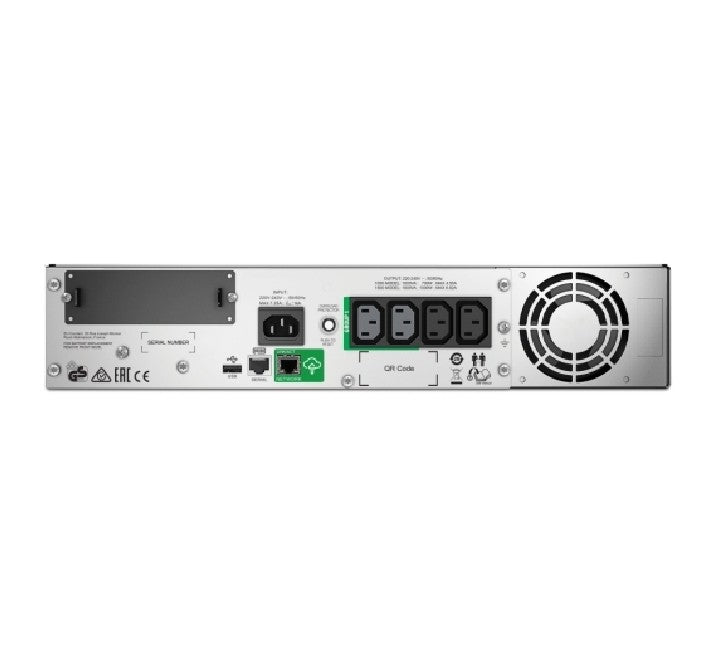

- Output Connections
- (2) IEC Jumpers (Battery Backup)
- (4) IEC 320 C13 (Battery Backup)
- Nominal Output Voltage: 230V
- Nominal Input Voltage: 230V
- Input Connections: IEC 320 C14
- Output
- Max Configurable Power (Watts): 700 Watts / 1.0kVA
- Output Voltage Note: Configurable for 220 : 230 or 240 nominal output voltage
- Output Voltage Distortion: Less than 5 %
- Output Frequency (sync to mains): 50/60 Hz +/- 3 Hz Sync to mains
- Other Output Voltages: 220 V, 240 V
- Topology: Line interactive
- Waveform type: Sine wave
- Transfer Time: 6 ms typical : 10 ms maximum
- Input
- Input frequency: 50/60 Hz +/- 3 Hz Auto-sensing
- Input voltage range for main operations: 151 - 302 Adjustable, 160 - 286V
- Number of Power Cords: 1
- Other Input Voltages: 220 V, 240 V
- Batteries & Runtime
- Battery type: Lead-acid battery
- Typical recharge time: 3hour(s)
- Replacement Battery: APCRBC157
- Expected Battery Life (years): 4 - 6
- RBC Quantity: 1
- Battery Charge Power (Watts): 112 Watts
- Communications & Management
- Interface Port(s): RJ-45 Serial, SmartSlot, USB
- Control panel: Multifunction LCD status and control console
- Emergency Power Off (EPO): Optional
- Available SmartSlot™ Interface Quantity: 1
